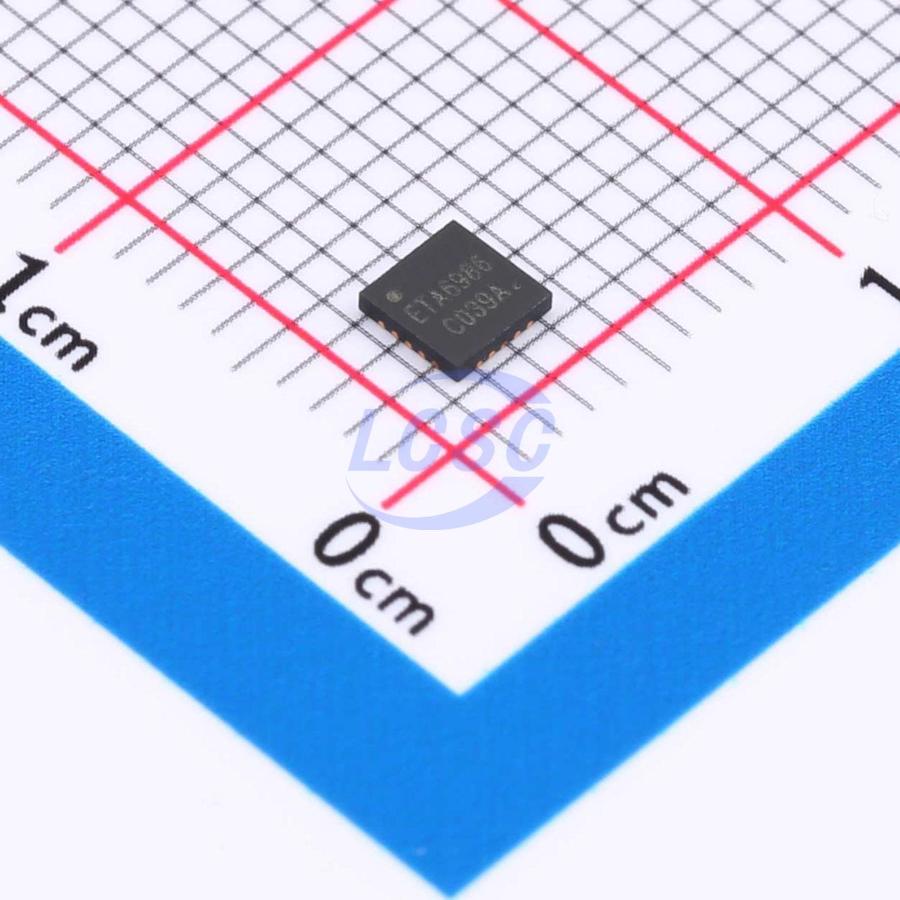

ETA6986F3W
Lithium Battery 5A QFN-20-EP(3x3) Battery Management RoHS
Single Inductor, 5A Battery Charger with 3A USB OTG, 0.1us True OVP
- Manufacturer
- etasolution
- Manufacturer part #
- ETA6986F3W
- Store part #
- C7465539
- Package / case
- QFN-20-EP(3x3)
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,610 in stock
#C7465539
Stock & price checked 30 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹76.48 | ₹76.48 |
| 10+ | ₹61.49 | ₹614.90 |
| 30+ | ₹53.89 | ₹1,616.70 |
| 100+ | ₹46.50 | ₹4,650.00 |
| 500+ | ₹41.94 | ₹20,970.00 |
| 1,000+ | ₹39.77 | ₹39,770.00 |
1 × ₹76.48
₹76.48
excl. GST
₹90.25 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
ETA6986F3W
₹76.48 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Quiescent Current
- 30uA
- Type of Battery
- Lithium Battery
- Operating Voltage
- 4.5V~5.5V
- Features
- Constant current charging;Constant voltage charging;Trickle charging;Automatic recharge;Charge termination;Programmable charging current;Overvoltage protection;Under-voltage lockout;Short-Circuit Protection
- The Chip Type
- Charging IC
- Charge Current - Max
- 5A
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.117 g
Overview
ETA6986 is a switching Li-Ion battery charger capable of delivering up to 5A of charging current to the battery and also capable of delivering up to 3A in boost OTG operation. It employs a charge pump to achieve a very fast input OVP. For charging, it uses a proprietary control scheme that eliminates the current sense resistor for constant current control, thereby improving efficiency and reducing costs. It can also output a 5V voltage in the reversed direction by boosting from the battery. Therefore, it only needs a single inductor to provide power bi-directionally. ETA6986 is truly an ideal solution controlled by MCU for battery charging and discharge applications, such as power banks, smart phones, and tablets with only one USB port that can be used for both charging battery and USB OTG function. ETA6986 is in a tiny QFN3x3-20 package.
Applications
- Power Bank
- Smart Phone / Tablet
- MID
Key features
- Bi-Directional Power conversion with Single Inductor
- Input OVP with 0.1us reaction time
- Input standoff voltage up to 20V
- Switching Charger up to 5A
- 5V Synchronous Boost up to 3A
- Up to 95% Efficiency
- NTC thermistor input
