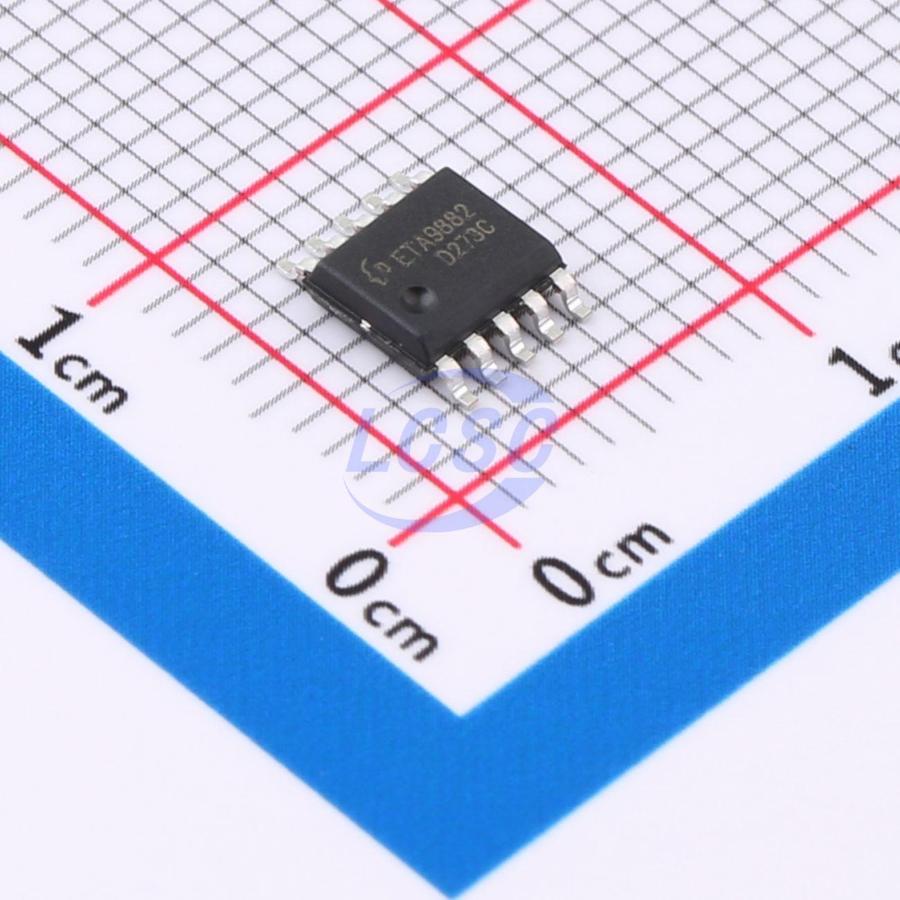

ETA9882E10
Battery Charging IC Lithium Battery ESSOP-10
20V Standoff, 2.4A Charger and 2.4A Boost for Power Bank All-in-One Solution
- Manufacturer
- etasolution
- Manufacturer part #
- ETA9882E10
- Store part #
- C29073227
- Package / case
- ESSOP-10
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,505 in stock
#C29073227
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹48.06 | ₹240.30 |
| 50+ | ₹37.53 | ₹1,876.50 |
| 150+ | ₹33.02 | ₹4,953.00 |
| 500+ | ₹27.39 | ₹13,695.00 |
| 2,500+ | ₹24.87 | ₹62,175.00 |
| 4,000+ | ₹23.38 | ₹93,520.00 |
5 × ₹48.06
₹240.30
excl. GST
₹283.55 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
ETA9882E10
₹240.30 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Quiescent Current
- 500uA
- Type of Battery
- Lithium Battery
- Operating Voltage
- 4.5V~6V
- Features
- Constant current charging;Constant voltage charging;Trickle charging;Automatic recharge;Charge termination;Programmable charging current;Overvoltage protection;Short-Circuit Protection
- The Chip Type
- Charging IC
- Charge Current - Max
- 2.4A
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.176 g
Overview
The ETA9882 is a switch-mode Li-ion battery charger capable of delivering up to 2.4A charging current to the battery and up to 2.4A output current in boost operation. The ETA9882 integrates a power path from IN to OUT, a buck charger, a 5V boost converter, and charge status indication. The buck charger guarantees 93.5% average efficiency at 2.4A charging current, while the boost converter achieves 92% efficiency at 2.4A output with battery voltage as low as 3.3V. It significantly increases the effective battery capacity of battery-powered systems such as power banks. With all these features, the ETA9882 is an ideal all-in-one solution for Li-ion battery charging and discharging applications. The ETA9882 is available in an ESSOP10 package.
Applications
- Power banks
- Lithium-ion battery-powered systems
Key features
- 20V input voltage rating
- Bidirectional power conversion with single inductor
- Power path from IN to OUT
- ENBST and ENCHRG functions
- 4.2V/4.35V selectable battery constant voltage
- Switching charger
- 5V synchronous boost
- Up to 96% efficiency
- No external sense resistor required
- NTC monitoring
- Charge status indication
- Programmable charge current
- Lead-free, RoHS and REACH compliant
- Halogen-free "Green" device
