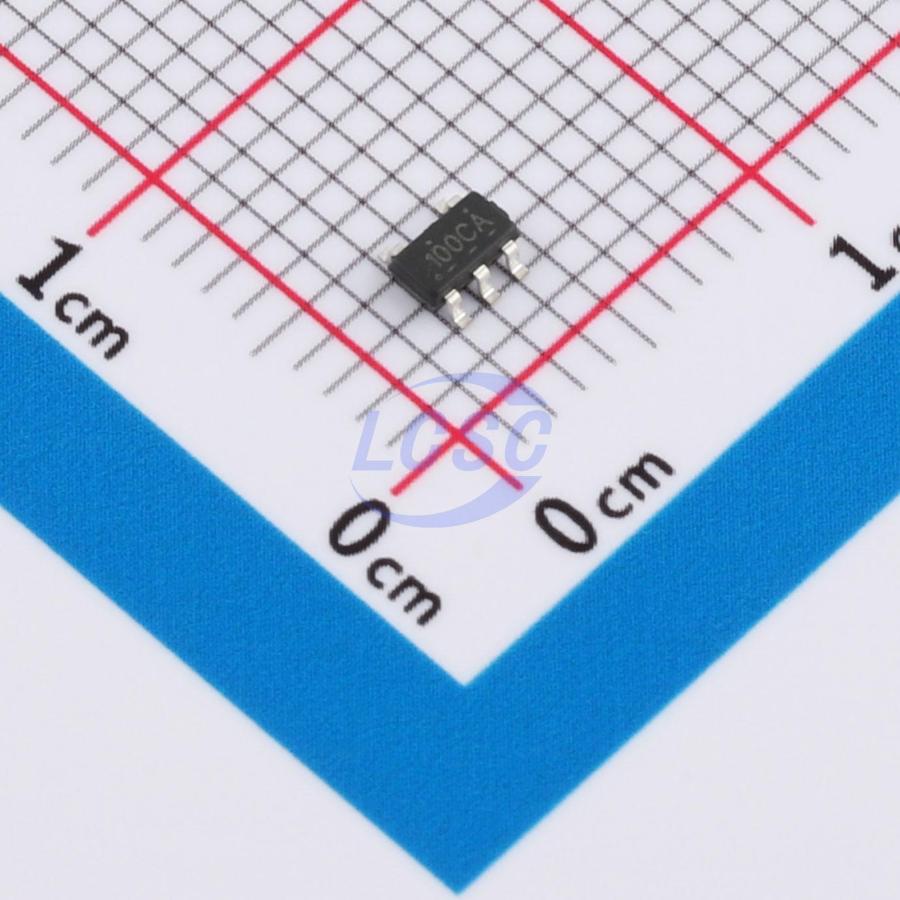

FAN3100CSX-TP
4.5V~18V 8A 4A SOT-23-5 Gate Drivers
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- FAN3100CSX-TP
- Store part #
- C51939553
- Package / case
- SOT-23-5
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,650 in stock
#C51939553
Stock & price checked 27 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹43.70 | ₹218.50 |
| 50+ | ₹34.17 | ₹1,708.50 |
| 150+ | ₹30.09 | ₹4,513.50 |
| 500+ | ₹24.99 | ₹12,495.00 |
| 3,000+ | ₹22.73 | ₹68,190.00 |
| 6,000+ | ₹21.37 | ₹1,28,220.00 |
5 × ₹43.70
₹218.50
excl. GST
₹257.83 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
FAN3100CSX-TP
₹218.50 for 5 + GST
Specifications
- Input Logic Level - Low
- 1.2V
- Input Logic Level - High
- 2.4V
- Voltage - Supply
- 4.5V~18V
- Operating Temperature
- 0℃~+125℃
- Driven Configuration
- Low Side
- Current - Output Low(IOL)
- 8A
- Rise Time
- 8ns
- Fall Time
- 7ns
- Features
- Enable shutdown;Interleaved conduction protection
- Current - Output High(IOH)
- 4A
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.036 g
Overview
This device is a compact gate driver that serves as an excellent replacement for NPN and PNP discrete driver (buffer circuit) solutions. The driver is suitable for MOSFETs, IGBTs, and emerging wide-bandgap power devices such as GaN. It is designed for high-speed applications. Its asymmetric 4A peak source current and 8A peak sink current enhance immunity against parasitic Miller turn-on effects. Features include wide input hysteresis and negative input voltage handling capability, providing enhanced transient noise immunity.
Applications
- DC-DC converters
- Desktop power supplies
- Switching mode power supplies
- Companion gate drivers for digital power controllers
- Gate drivers for emerging wide-bandgap power devices (e.g., GaN)
Key features
- 4.5V to 18V single-supply range
- Output held low during VDD UVLO
- TTL and CMOS compatible input logic thresholds
- Output held low with floating input pins
- Fast rise and fall times (typical 9ns and 7ns respectively)
- Fast propagation delay (typical 13ns)
- Split output configuration
- Strong sink current for enhanced Miller turn-on immunity
- Input pins tolerate voltages 5V below GND pin
- Compact package: SOT23-5
