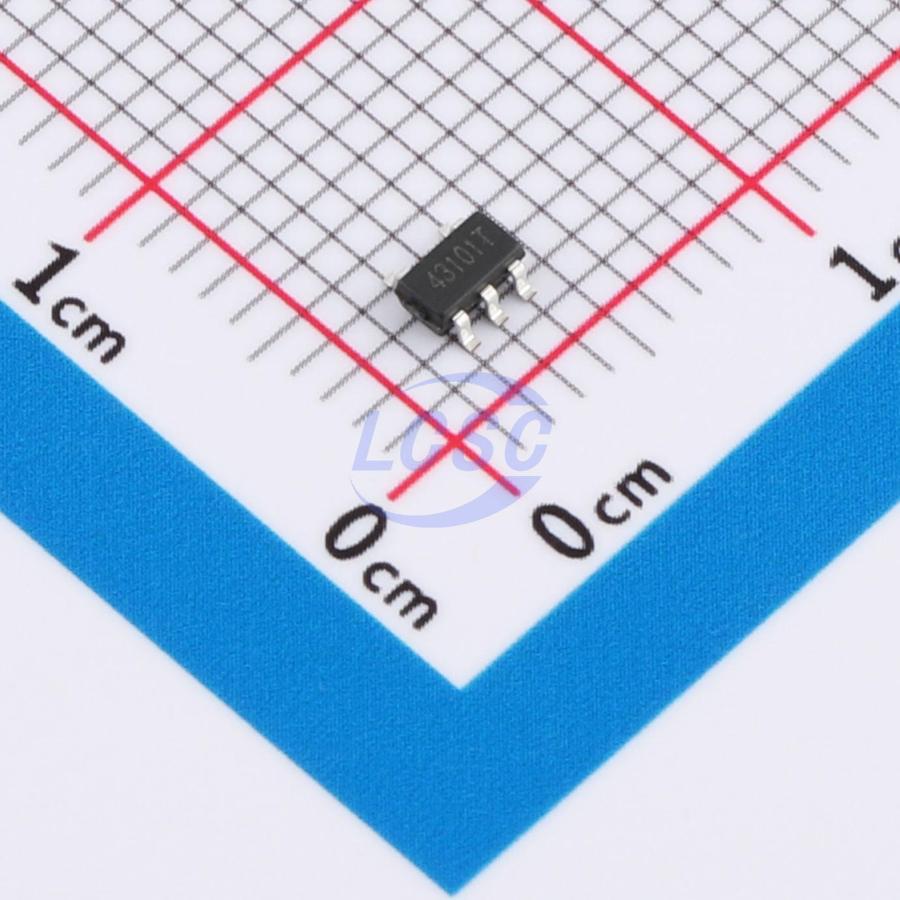

IX4310TTR-TP
4.5V~18V 8A 4A SOT-23-5 Gate Drivers
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- IX4310TTR-TP
- Store part #
- C51939583
- Package / case
- SOT-23-5
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,635 in stock
#C51939583
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹49.48 | ₹247.40 |
| 50+ | ₹38.70 | ₹1,935.00 |
| 150+ | ₹34.07 | ₹5,110.50 |
| 500+ | ₹28.30 | ₹14,150.00 |
| 3,000+ | ₹25.73 | ₹77,190.00 |
| 6,000+ | ₹24.20 | ₹1,45,200.00 |
5 × ₹49.48
₹247.40
excl. GST
₹291.93 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
IX4310TTR-TP
₹247.40 for 5 + GST
Specifications
- Input Logic Level - Low
- 1.2V
- Input Logic Level - High
- 2.4V
- Voltage - Supply
- 4.5V~18V
- Operating Temperature
- 0℃~+125℃
- Driven Configuration
- Low Side
- Current - Output Low(IOL)
- 8A
- Rise Time
- 8ns
- Fall Time
- 7ns
- Features
- Enable shutdown;Interleaved conduction protection
- Current - Output High(IOH)
- 4A
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.036 g
Overview
This device is a compact gate driver that serves as an excellent alternative to NPN and PNP discrete driver (buffer circuit) solutions. The driver is suitable for MOSFETs, IGBTs, and emerging wide-bandgap power devices such as GaN, making it ideal for high-speed applications. Its asymmetric 4A peak source current and 8A peak sink current enhance immunity against parasitic Miller turn-on. Features include wide input hysteresis and negative input voltage handling capability, improving transient noise immunity.
Applications
- DC-DC converters
- Desktop PC power supplies
- Switch-mode power supplies
- Companion gate drivers for digital power controllers
- Gate drivers for emerging wide-bandgap power devices (e.g., GaN)
Key features
- 4.5V ~ 18V single-supply range
- Output held low during VDD UVLO
- TTL and CMOS compatible input logic threshold
- Output designed to remain low when input pins are floating
- Fast rise and fall times (typical 9ns and 7ns respectively)
- Fast propagation delay (typical 13ns)
- Split output configuration
- Strong sink current capability for enhanced Miller turn-on immunity
- Input pins capable of withstanding voltages down to -5V below GND pin
- Compact package: SOT23-5
