XIN FEI HONGDatasheet (PDF)

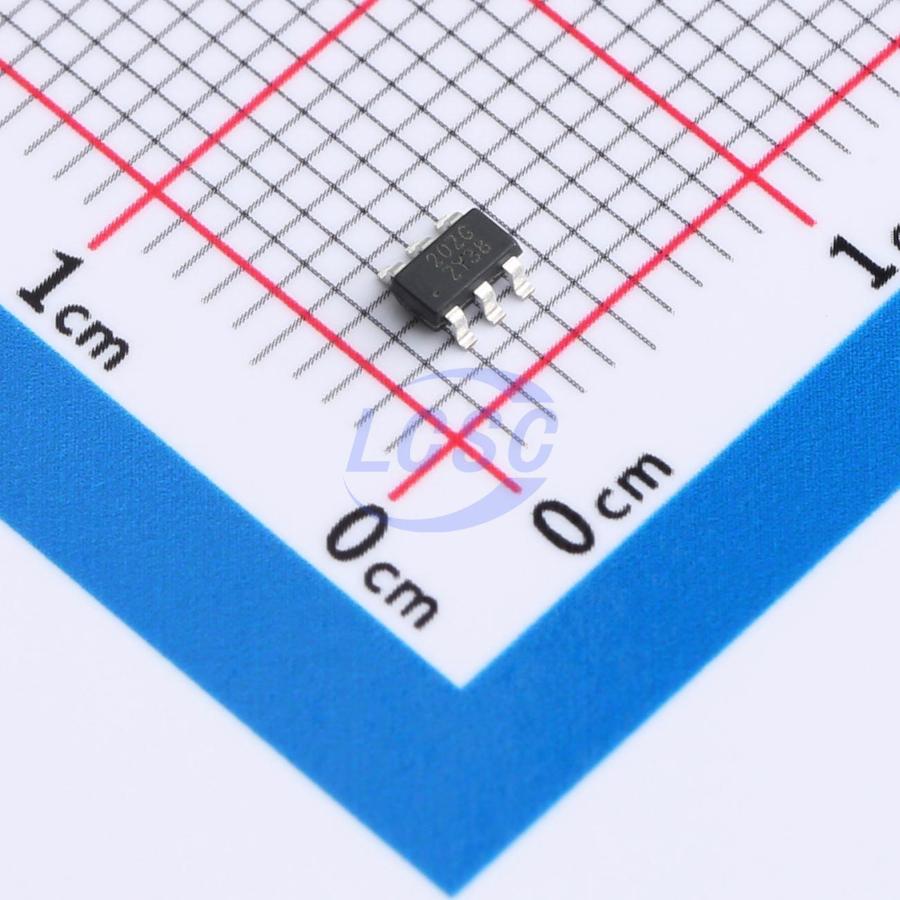

FH2120-ZG
Battery Protection IC Lithium-ion/Polymer SOT-23-6
SOT-23-6ROHS CompliantActive
2-series high-voltage lithium battery protection IC
- Manufacturer
- XIN FEI HONG
- Manufacturer part #
- FH2120-ZG
- Store part #
- C19273275
- Package / case
- SOT-23-6
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,840 in stock
#C19273275
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.58 | ₹62.90 |
| 50+ | ₹9.95 | ₹497.50 |
| 150+ | ₹8.63 | ₹1,294.50 |
| 500+ | ₹7.65 | ₹3,825.00 |
| 3,000+ | ₹6.85 | ₹20,550.00 |
| 6,000+ | ₹6.46 | ₹38,760.00 |
5 × ₹12.58
₹62.90
excl. GST
₹74.22 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
FH2120-ZG
₹62.90 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Quiescent Current
- 100nA
- 0V Battery Charge
- Support
- Operating Voltage
- 1.5V~15V
- Type of Battery
- Lithium Battery
- Features
- Overcharge protection;Over-discharge protection;Overcurrent Protection;Short-Circuit Protection
- The Chip Type
- Protection IC
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.047 g
Overview
FH2120-ZG integrates a high-precision voltage detection circuit and delay circuit, serving as a protection IC for lithium-ion/lithium-polymer rechargeable batteries. FH2120-ZG is designed for overcharge, overdischarge, charge overcurrent, and discharge overcurrent protection of 2-cell series-connected lithium-ion/lithium-polymer battery packs.
Applications
- Lithium-ion rechargeable battery pack
- Lithium polymer rechargeable battery pack
Key features
- High-precision voltage detection circuit
- Overcharge detection voltage VCUn (n = 1, 2) 4.425V, accuracy ±25mV
- Overcharge release voltage VCLn (n = 1, 2) 4.225V, accuracy ±80mV
- Overdischarge detection voltage VDLn (n = 1, 2) 2.500V, accuracy ±80mV
- Overdischarge release voltage VDUn (n = 1, 2) 2.900V, accuracy ±100mV
- Discharge overcurrent detection voltage 100mV, accuracy ±30mV
- Charge overcurrent detection voltage -100mV, accuracy ±30mV
- Load short-circuit detection voltage 0.500V, accuracy ±0.1V
- All delay times set by internal circuit (no external capacitor required)
- Overcharge detection delay time typical value 1000ms
- Overdischarge detection delay time typical value 110ms
- Discharge overcurrent detection delay time typical value 10ms
- Charge overcurrent detection delay time typical value 7ms
- Load short-circuit detection delay time typical value 250μs
- Sleep function: "Available" (models with sleep function)
- Overdischarge auto-recovery function: "Available" (models with overdischarge auto-recovery function)
- Low current consumption
- Operating current consumption typical value 7.0μA, maximum value 12.0μA
- Overdischarge current consumption typical value 6.0μA, maximum value 9.0μA
- Sleep current consumption maximum value 0.10μA
- High-voltage rated device: absolute maximum rating 33V
- 0V battery charging function: "Permitted"
- Package: SOT23-6
- FH2120-ZG is a halogen-free green environmental product
