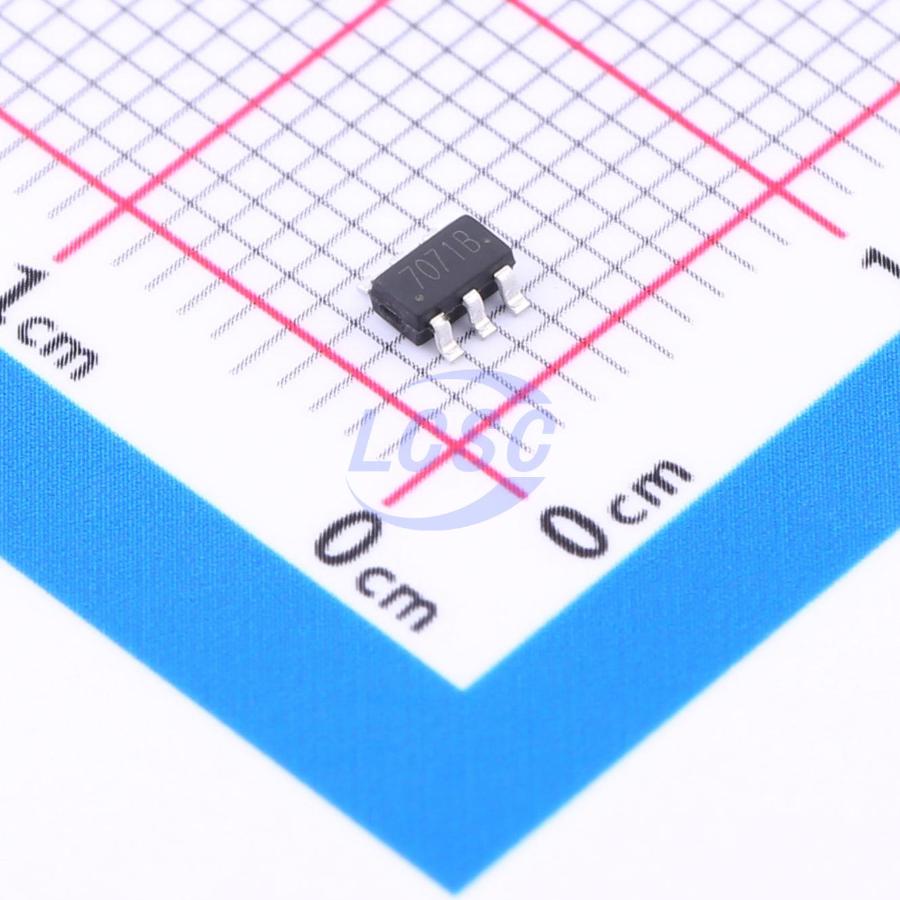

FH7071B
Battery Protection IC Lithium-ion/Polymer SOT-23-6
Single-cell high-voltage lithium battery protection IC
- Manufacturer
- XIN FEI HONG
- Manufacturer part #
- FH7071B
- Store part #
- C5159073
- Package / case
- SOT-23-6
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,870 in stock
#C5159073
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.79 | ₹57.90 |
| 100+ | ₹4.64 | ₹464.00 |
| 300+ | ₹4.06 | ₹1,218.00 |
| 3,000+ | ₹3.37 | ₹10,110.00 |
| 6,000+ | ₹3.02 | ₹18,120.00 |
| 9,000+ | ₹2.84 | ₹25,560.00 |
10 × ₹5.79
₹57.90
excl. GST
₹68.32 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
FH7071B
₹57.90 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Quiescent Current
- 800nA
- 0V Battery Charge
- Support
- Operating Voltage
- 1.5V~10V
- Type of Battery
- Lithium Battery
- Features
- Overcharge protection;Over-discharge protection;Overcurrent Protection;Short-Circuit Protection
- The Chip Type
- Protection IC
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.044 g
Overview
The FH7071 series is a high-precision overcharge and overdischarge protection circuit for single-cell rechargeable lithium batteries, integrating overvoltage charge protection, overvoltage discharge protection, and overcurrent discharge protection. Under normal conditions, the VDD pin voltage of the FH7071 series is between the overvoltage charge protection threshold (VOC) and the overvoltage discharge protection threshold (VOD), and the VM detection pin voltage is between the charger detection voltage (VCHG) and the overcurrent discharge protection threshold (VEDI). In this state, both the COUT and DOUT pins output a high level, turning on the external charge control N-MOS transistor Q1 and discharge control N-MOS transistor Q2, respectively. This allows the battery to be charged via a charger or discharged through a load. The FH7071 series performs overcharge/overdischarge protection by monitoring the voltage at the VDD or VM pin (relative to the VSS pin). When a charge/discharge protection condition occurs, COUT/DOUT transitions from high to low, switching Q1/Q2 from on to off, thereby stopping the charge/discharge process. The FH7071 series has corresponding recovery conditions for each protection state. Once a recovery condition is met, COUT/DOUT transitions from low to high, switching Q1/Q2 from off to on, returning to normal operation. A delay time is defined for each protection/recovery condition — the corresponding protection/recovery action is only triggered after the condition persists for the specified duration. If the protection/recovery condition clears before the delay time elapses, the device will not enter the protection/recovery state.
Applications
- Charge/discharge protection circuits for lithium batteries
- High-precision protector for phone batteries or other lithium batteries
Key features
- Ideal protection circuit for single-cell Li-ion or Li-polymer batteries
- High-accuracy protection voltage (overcharge/overdischarge) detection
- Selectable low-power mode enable/disable under overdischarge conditions
- High-accuracy overcurrent discharge protection detection
- Battery short-circuit protection
- Multiple selectable detection voltage and delay time options
- Selectable 0V battery charging enable/disable across different models
- Minimal external components
- Ultra-compact SOT23-6 package
