FH7071DZ

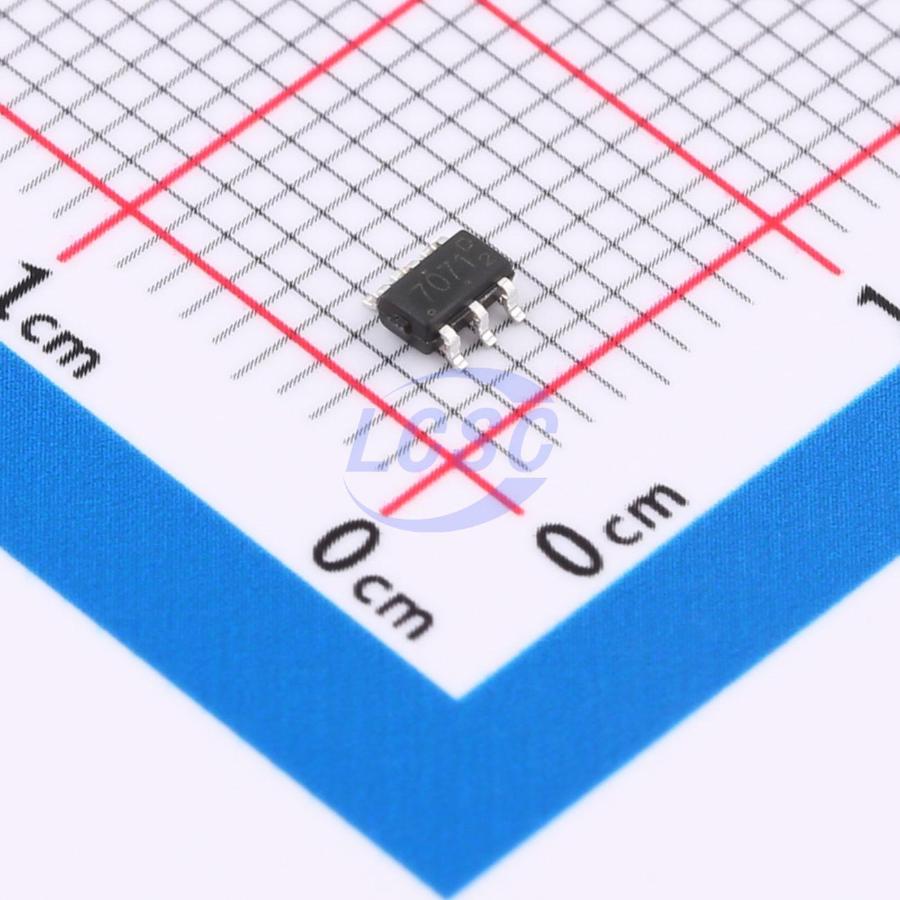

Battery Protection IC Lithium-ion/Polymer SOT-23-6
SOT-23-6ROHS CompliantActive
FH7071Z Series Single-Cell High-Voltage Lithium Battery Protection IC
- Manufacturer
- XIN FEI HONG
- Manufacturer part #
- FH7071DZ
- Store part #
- C22396964
- Package / case
- SOT-23-6
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
14,660 in stock
#C22396964
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹3.25 | ₹65.00 |
| 200+ | ₹2.83 | ₹566.00 |
| 600+ | ₹2.62 | ₹1,572.00 |
| 3,000+ | ₹2.46 | ₹7,380.00 |
| 9,000+ | ₹2.33 | ₹20,970.00 |
| 21,000+ | ₹2.26 | ₹47,460.00 |
20 × ₹3.25
₹65.00
excl. GST
₹76.70 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
FH7071DZ
₹65.00 for 20 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Quiescent Current
- 1.5uA
- 0V Battery Charge
- Support
- Operating Voltage
- 1V~5.5V
- Type of Battery
- Lithium Battery
- Features
- Overcharge protection;Over-discharge protection;Overcurrent Protection;Short-Circuit Protection
- The Chip Type
- Protection IC
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.049 g
Overview
The FH7071Z series features built-in high-precision voltage detection and delay circuits that monitor battery voltage and current to provide overcharge, overdischarge, and overcurrent protection. Suitable for single-cell Li-ion/Li-polymer rechargeable battery protection circuits.
Applications
- Single-cell Li-ion/LiPo rechargeable battery
Key features
- High-accuracy voltage detection
- Overcharge protection voltage: 4.350~4.600V
- Overcharge release voltage: 4.000~4.500V
- Over-discharge protection voltage: 2.000~3.300V
- Over-discharge release voltage: 2.100~3.400V
- Discharge overcurrent protection voltage: 0.030~0.250V
- Short-circuit protection voltage: 0.5~1.3V
- Charge overcurrent protection voltage: -0.040 ~ -0.270V
- Load detection
- Charger detection
- 0V charging
- Over-discharge auto-recovery
- Low current consumption:
- Operating mode: 1.5μA (typ.) (Ta=+25°C)
- Over-discharge current consumption (with auto-recovery): 0.7μA (typ.) (Ta=+25°C)
- Lead-free, halogen-free.
