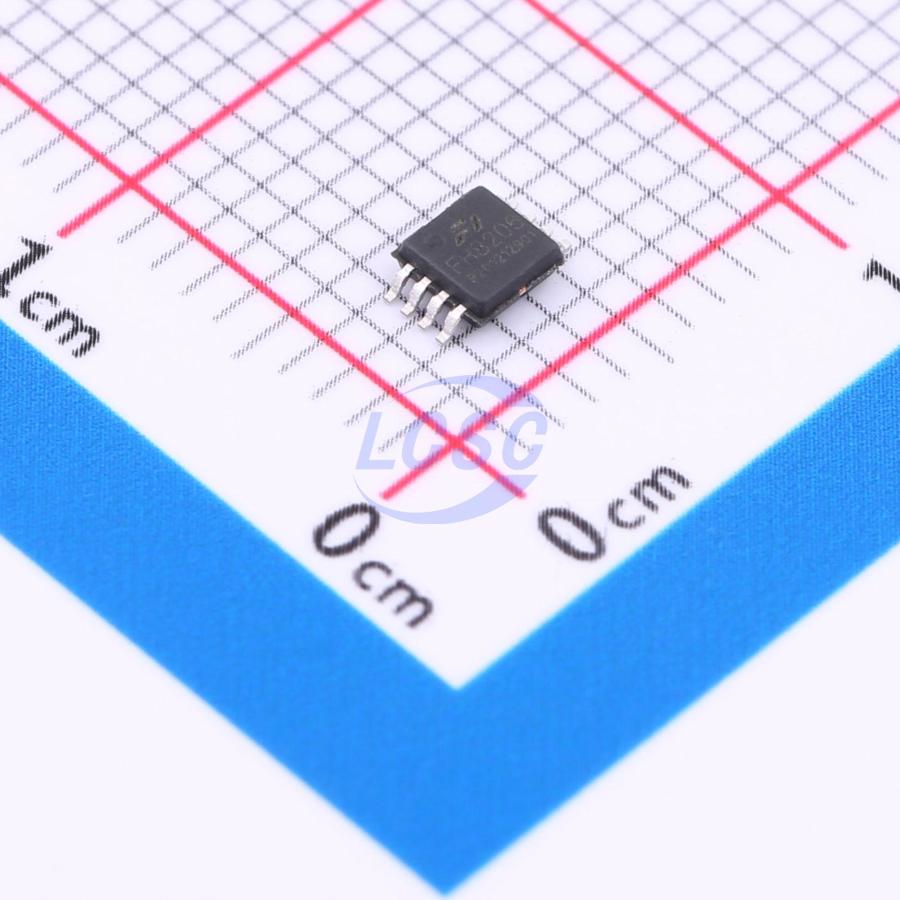

XIN FEI HONGDatasheet (PDF)
FH8206
Lithium Battery CPC-8 Battery Management
CPC-8RoHSActive
- Manufacturer
- XIN FEI HONG
- Manufacturer part #
- FH8206
- Store part #
- C2929067
- Package / case
- CPC-8
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
14,945 in stock
#C2929067
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.26 | ₹56.30 |
| 50+ | ₹8.90 | ₹445.00 |
| 150+ | ₹7.73 | ₹1,159.50 |
| 500+ | ₹6.84 | ₹3,420.00 |
| 2,500+ | ₹6.14 | ₹15,350.00 |
| 5,000+ | ₹5.78 | ₹28,900.00 |
5 × ₹11.26
₹56.30
excl. GST
₹66.43 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 15,000 per reel
FH8206
₹56.30 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Quiescent Current
- 3uA
- 0V Battery Charge
- Support
- Operating Voltage
- 1.5V~10V
- Type of Battery
- Lithium Battery
- Features
- Overcharge protection;Over-discharge protection;Overcurrent Protection;Short-Circuit Protection
- The Chip Type
- Protection IC
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 15,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.059 g
Overview
The FH8206 series is a high-precision overcharge and overdischarge protection circuit for single-cell rechargeable lithium batteries, integrating high-precision overvoltage charge protection, overvoltage discharge protection, and overcurrent discharge protection. Leveraging the innovative CPC-8 package, the FH8206 co-integrates low on-resistance N-MOS transistors while also supporting external MOS expansion requirements.
Applications
- Charge and discharge protection circuits for lithium batteries
- Lithium battery protection boards
- Power banks
- Bluetooth speakers
- Phone battery or other lithium battery high-precision protectors
Key features
- Integrates advanced low on-resistance N-MOS; supports external N-MOS expansion for application-specific requirements
- Ideal protection circuit for single-cell Li-ion or Li-polymer batteries
- High-accuracy protection voltage (overcharge/overdischarge) detection
- Optional low-power mode during overdischarge condition
- High-accuracy overcurrent discharge protection detection
- Battery short-circuit protection
- 0V-battery charging allowed
- Overdischarge auto-recovery
- Minimal external components
- Ultra-compact innovative CPC-8 package
- Wide supply voltage range VDD: 1.5V ~10V
- High-voltage built-in MOSFET: BVDSS (min) 20V
