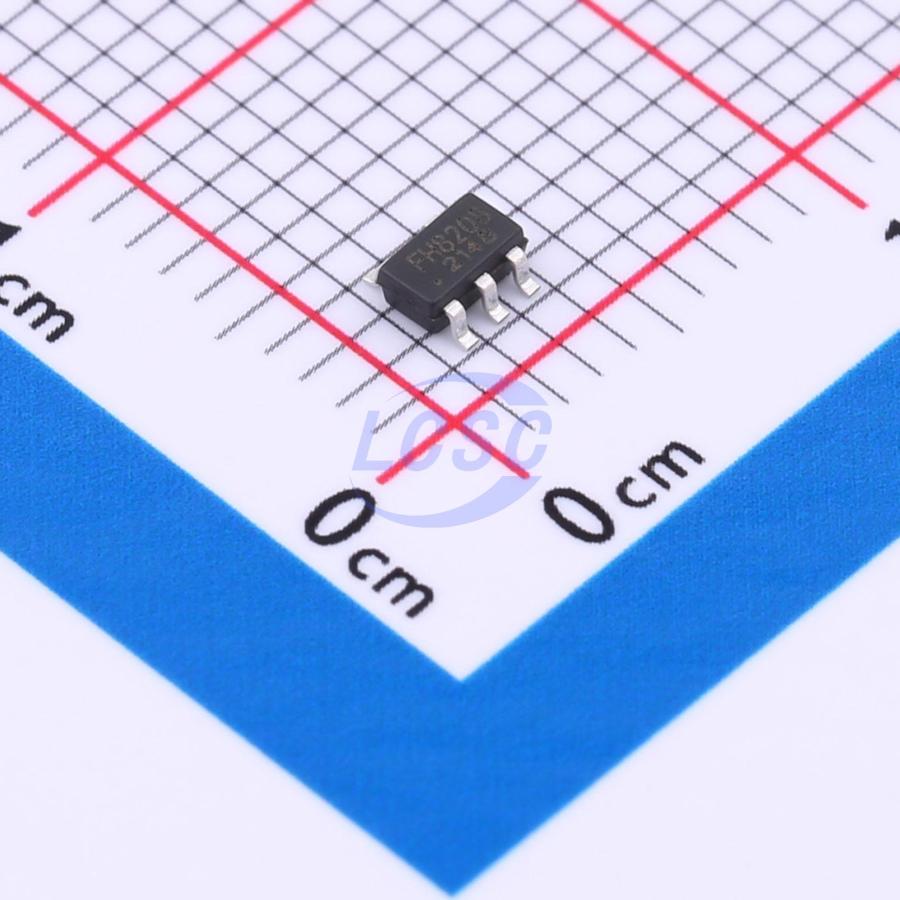

FH8208
Lithium Battery 2.5A SOT-23-5 Battery Management RoHS
One Cell Lithium-ion/Polymer Battery Protection IC
- Manufacturer
- XIN FEI HONG
- Manufacturer part #
- FH8208
- Store part #
- C2929068
- Package / case
- SOT-23-5
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,960 in stock
#C2929068
Stock & price checked 17 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹5.15 | ₹103.00 |
| 200+ | ₹4.11 | ₹822.00 |
| 600+ | ₹3.55 | ₹2,130.00 |
| 3,000+ | ₹2.73 | ₹8,190.00 |
| 9,000+ | ₹2.43 | ₹21,870.00 |
| 21,000+ | ₹2.28 | ₹47,880.00 |
20 × ₹5.15
₹103.00
excl. GST
₹121.54 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
FH8208
₹103.00 for 20 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Quiescent Current
- 1.5uA
- 0V Battery Charge
- Support
- Type of Battery
- Lithium Battery
- Features
- Overcharge protection;Over-discharge protection;Overcurrent Protection;Short-Circuit Protection
- The Chip Type
- Protection IC
- Charge Current - Max
- 2.5A
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.487 g
Overview
The FH8208 is a high integration solution for lithium-ion/polymer battery protection. FH8208 contains internal power MOSFET, high-accuracy voltage detection circuits and delay circuits. FH8208 has all the protection functions required in the battery application including overcharging, over discharging, overcurrent and load short circuiting protection etc. The accurate overcharging detection voltage ensures safe and full utilization charging. The low standby current drains little current from the cell while in storage. The device is not only targeted for digital cellular phones, but also for any other Li-Ion and Li-Poly battery-powered information appliances requiring long-term battery life. The FH8208 requires a minimal number of readily available, external components and is available in a space saving SOT23-5 Package.
Applications
- One-Cell Li-ion Battery Pack
- Power Bank
- One-Cell Li-poly Battery Pack
- IOT Sensor/Electronic Toys
Key features
- Protection of Charger Reverse Connection
- Protection of Battery Cell Reverse Connection
- Over-temperature Protection
- Overcharge Current Protection
- Two-step Overcurrent Detection: Over Discharge Current, Load Short Circuiting
- Charger Detection Function
- 0V Battery Charging Function
- 50mΩ Low RSS(ON) Internal Power MOSFET
- Delay Times are generated inside
- Overcharge Current Detection Function
- High-accuracy Voltage Detection
- Low Current Consumption: Operation Mode: 3μA typ., Power-down Mode: 2μA typ.
- Only One External Capacitor Required
- Available in SOT23-5 Package
- -40°C to +85°C Temperature Range
- RoHS Compliant and Lead (Pb) Free
