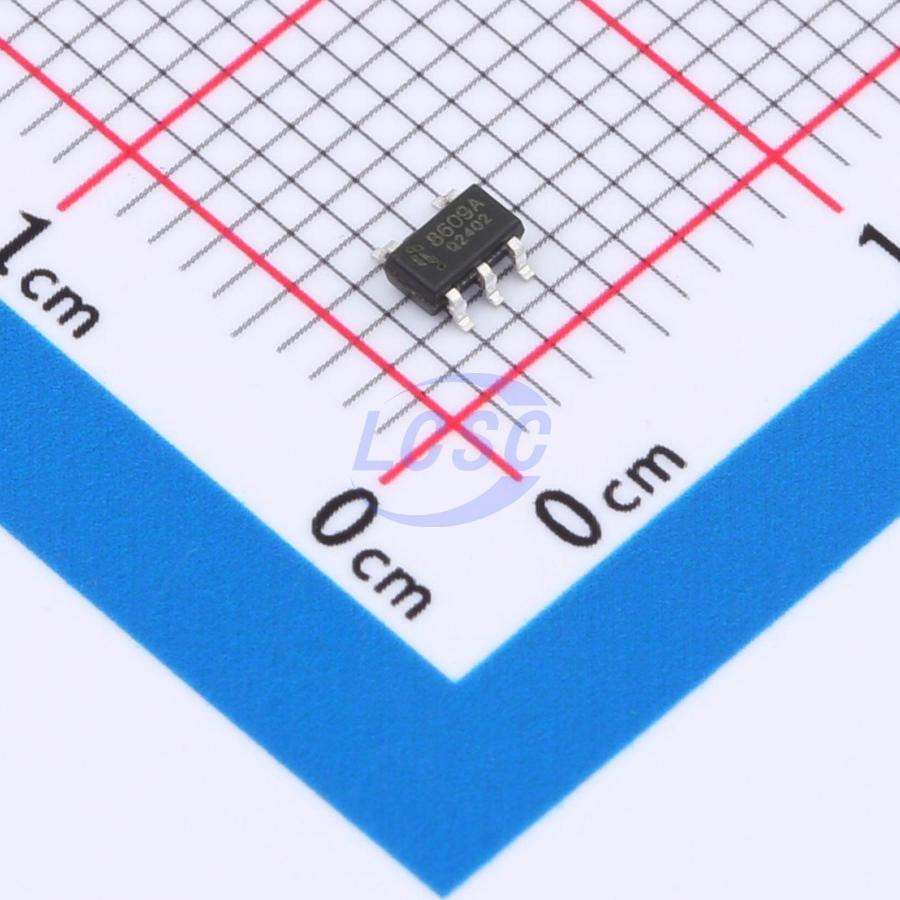

FH8609A2
Lithium Battery SOT-23-5 Battery Management RoHS
One Cell Lithium-ion/Polymer Battery Protection IC
- Manufacturer
- XIN FEI HONG
- Manufacturer part #
- FH8609A2
- Store part #
- C22396967
- Package / case
- SOT-23-5
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7,280 in stock
#C22396967
Stock & price checked 30 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.33 | ₹53.30 |
| 100+ | ₹4.66 | ₹466.00 |
| 300+ | ₹4.33 | ₹1,299.00 |
| 3,000+ | ₹4.07 | ₹12,210.00 |
| 6,000+ | ₹3.88 | ₹23,280.00 |
| 9,000+ | ₹3.77 | ₹33,930.00 |
10 × ₹5.33
₹53.30
excl. GST
₹62.89 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
FH8609A2
₹53.30 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Quiescent Current
- 2.2uA
- 0V Battery Charge
- Support
- Type of Battery
- Lithium Battery
- Operating Voltage
- 3.6V
- Features
- Overcharge protection;Over-discharge protection;Overcurrent Protection;Short-Circuit Protection
- The Chip Type
- Protection IC
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.048 g
Overview
The FH8609A2 product is a high integration solution for lithium-ion/polymer battery protection. FH8609A2 contains advanced power MOSFET, high-accuracy voltage detection circuits and delay circuits. FH8609A2 is put into an ultra-small SOT23-5 package and only one external component makes it an ideal solution in limited space of battery pack. FH8609A2 has all the protection functions required in the battery application including overcharging, over-discharging, overcurrent and load short circuiting protection etc. The accurate overcharging detection voltage ensures safe and full utilization charging. The low standby current drains little current from the cell while in storage. The device is not only targeted for digital cellular phones, but also for any other Li-Ion and Li-Poly battery-powered information appliances requiring long-term battery life.
Applications
- One-Cell Lithium-ion Battery Pack
- Lithium-Polymer Battery Pack
- Power Bank
Key features
- Protection of Charger Reverse Connection
- Protection of Battery Cell Reverse Connection Without External Load
- Integrated Advanced Power MOSFET with Equivalent of 16.5 mΩ RSS(ON)
- Ultra-small SOT23-5 Package
- Only One External Capacitor Require
- Over-temperature Protection
- Overcharge Current Protection
- Two-step Overcurrent Detection
- Overdischarge Current
- Load Short Circuiting
- Low Current Consumption
- Operation Mode: 3.9μA typ
- Power-down Mode: 2.2μA typ
- Charger Detection Function
- 0V Battery Charging Function
- Delay Times are generated inside
- High-accuracy Voltage Detection
- RoHS Compliant and Lead (Pb) Free
