XIN FEI HONGDatasheet (PDF)

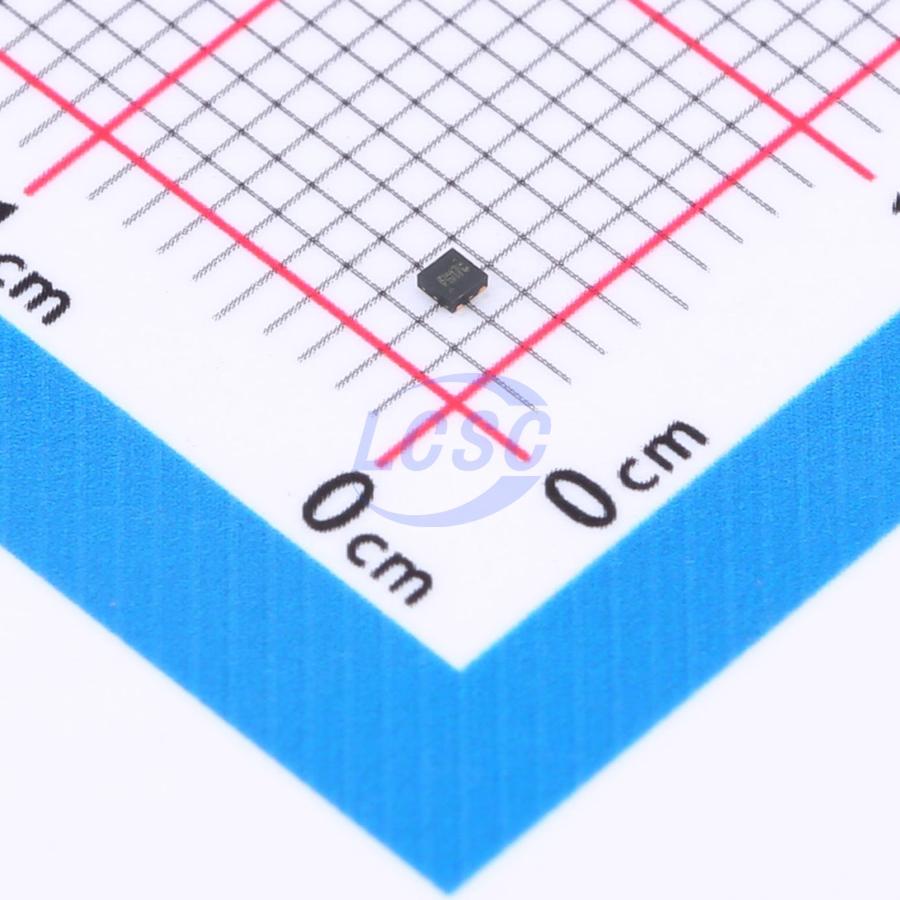

FH8617G1
Battery Protection IC Lithium-ion/Polymer DFN-4L(1x1)
DFN-4L(1x1)ROHS CompliantActive
Single-string two-in-one lithium battery protection IC
- Manufacturer
- XIN FEI HONG
- Manufacturer part #
- FH8617G1
- Store part #
- C19273260
- Package / case
- DFN-4L(1x1)
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7,740 in stock
#C19273260
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.83 | ₹58.30 |
| 100+ | ₹4.59 | ₹459.00 |
| 300+ | ₹3.97 | ₹1,191.00 |
| 3,000+ | ₹3.51 | ₹10,530.00 |
| 6,000+ | ₹3.12 | ₹18,720.00 |
| 9,000+ | ₹2.94 | ₹26,460.00 |
10 × ₹5.83
₹58.30
excl. GST
₹68.79 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
FH8617G1
₹58.30 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Quiescent Current
- 1uA
- 0V Battery Charge
- Support
- Operating Voltage
- 1V~5.5V
- Type of Battery
- Lithium Battery
- The Chip Type
- Protection IC
- Charge Current - Max
- 1.6A
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.03 g
Overview
FH8617G1 integrates a high-precision voltage detection circuit and delay circuit, providing overcharge, overdischarge, and overcurrent protection for batteries by monitoring battery voltage and current. Suitable for protection circuits in single-cell Li-ion/Li-polymer rechargeable batteries.
Applications
- Lithium-ion rechargeable battery
Key features
- High-precision voltage detection:
- Overcharge detection voltage: 4.300 V
- Overcharge release voltage: 4.075 V
- Over-discharge detection voltage: 2.720 V
- Over-discharge release voltage: 2.900 V
- Discharge overcurrent detection: 0.950 A
- Short-circuit current detection: 2.6 A
- Charge overcurrent detection: 1.1 A
- Charger detection and load detection functions
- Low current consumption:
- Operating mode: 1 μA (typ.) (Ta = +25°C)
- Over-discharge mode current (with auto-recovery): 0.5 μA (typ.) (Ta = +25°C)
