XIN FEI HONGDatasheet (PDF)

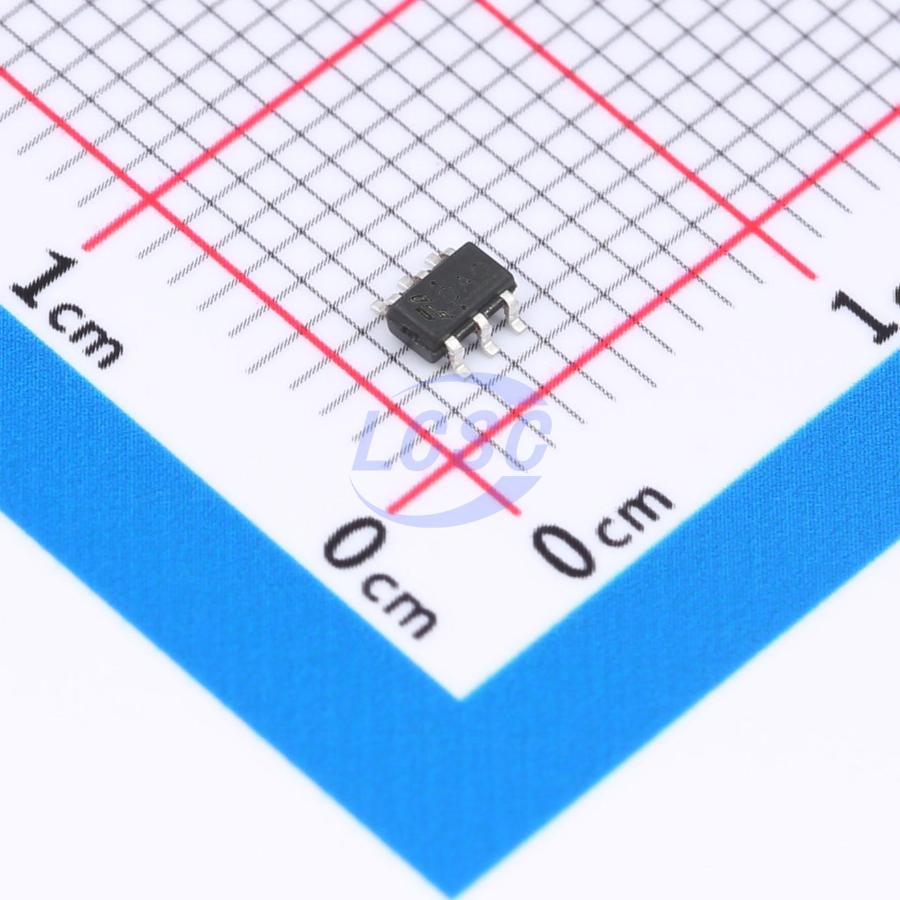

FH9261-DAO
Battery Protection IC Lithium-ion/Polymer SOT-23-6
SOT-23-6ROHS CompliantActive
High-precision lithium battery protection circuit
- Manufacturer
- XIN FEI HONG
- Manufacturer part #
- FH9261-DAO
- Store part #
- C2929061
- Package / case
- SOT-23-6
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,120 in stock
#C2929061
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹4.25 | ₹85.00 |
| 200+ | ₹3.33 | ₹666.00 |
| 600+ | ₹2.83 | ₹1,698.00 |
| 3,000+ | ₹2.41 | ₹7,230.00 |
| 9,000+ | ₹2.16 | ₹19,440.00 |
| 21,000+ | ₹2.01 | ₹42,210.00 |
20 × ₹4.25
₹85.00
excl. GST
₹100.30 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
FH9261-DAO
₹85.00 for 20 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Quiescent Current
- 700nA
- 0V Battery Charge
- Support
- Operating Voltage
- 1.5V~10V
- Type of Battery
- Lithium Battery
- Features
- Overcharge protection;Over-discharge protection;Overcurrent Protection;Short-Circuit Protection
- The Chip Type
- Protection IC
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.049 g
Overview
The FH9261-DAO series is a high-precision protection circuit for single-cell rechargeable lithium batteries, integrating overcharge protection, over-discharge protection, and overcurrent discharge protection in a single device.
Applications
- Charge/discharge protection circuit for lithium batteries
- High-precision protector for phone batteries or other lithium batteries
Key features
- Ideal protection circuit for single-cell Li-ion or Li-polymer batteries
- High-accuracy protection voltage (overcharge/overdischarge) detection
- Selectable low-power mode enable/disable under overdischarge conditions
- High-accuracy overcurrent discharge protection detection
- Battery short-circuit protection
- Multiple selectable detection voltage and delay time options
- Selectable 0V battery charging enable/disable across different models
- Minimal external components
- Ultra-compact SOT23-6 package
