XIN FEI HONGDatasheet (PDF)

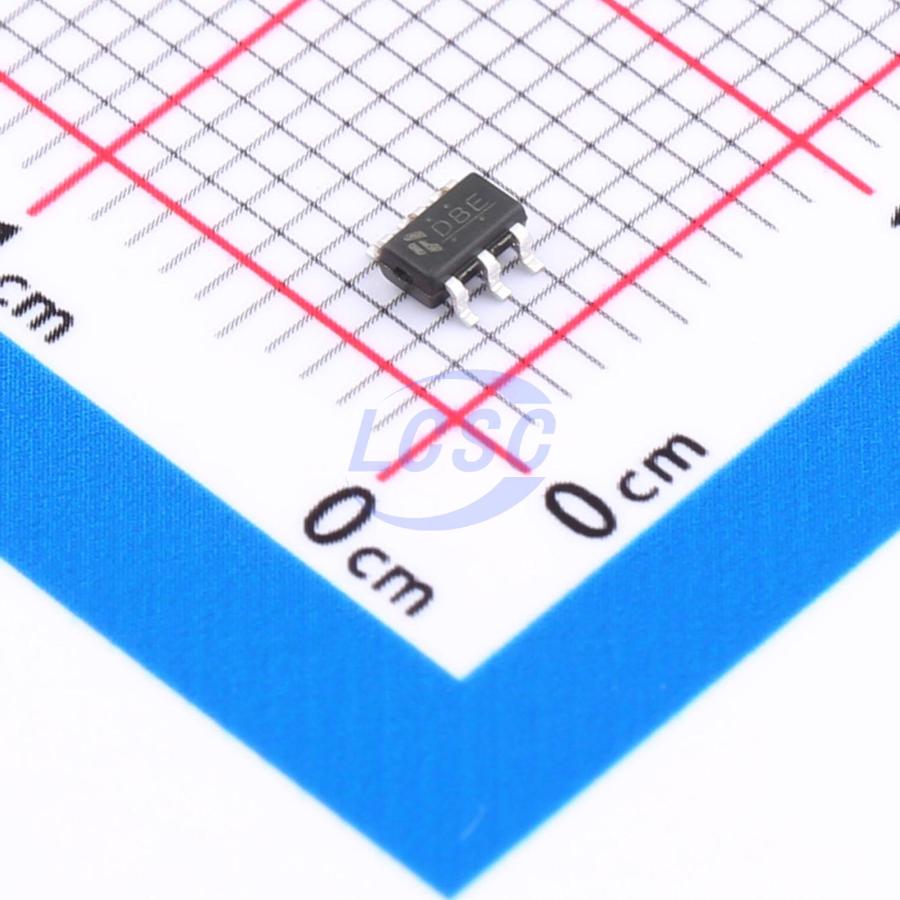

FH9261-DBE
Battery Protection IC Lithium-ion/Polymer SOT-23-6
SOT-23-6ROHS CompliantActive
Single-cell lithium-ion/lithium-polymer battery protection IC
- Manufacturer
- XIN FEI HONG
- Manufacturer part #
- FH9261-DBE
- Store part #
- C19273257
- Package / case
- SOT-23-6
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
19,880 in stock
#C19273257
Stock & price checked 32 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.04 | ₹50.40 |
| 100+ | ₹3.98 | ₹398.00 |
| 300+ | ₹3.45 | ₹1,035.00 |
| 3,000+ | ₹3.06 | ₹9,180.00 |
| 6,000+ | ₹2.74 | ₹16,440.00 |
| 9,000+ | ₹2.59 | ₹23,310.00 |
10 × ₹5.04
₹50.40
excl. GST
₹59.47 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
FH9261-DBE
₹50.40 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Quiescent Current
- 100nA
- 0V Battery Charge
- Support
- Operating Voltage
- 1V~7V
- Type of Battery
- Lithium Battery
- Features
- Overcharge protection;Over-discharge protection;Overcurrent Protection;Short-Circuit Protection
- The Chip Type
- Protection IC
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.047 g
Overview
FH9261-DBE integrates a high-precision voltage detection circuit and delay circuit, providing overcharge, overdischarge, and overcurrent protection for batteries by monitoring battery voltage and current. Suitable for protection circuits of single-cell lithium-ion/lithium-polymer rechargeable batteries.
Applications
- Single-cell Li-ion/LiPo rechargeable battery
Key features
- High-precision voltage detection
- Overcharge protection voltage: 4.425 V ±50 mV
- Overcharge release voltage: 4.225 V ±100 mV
- Over-discharge protection voltage: 3.000 V ±100 mV
- Over-discharge release voltage: 3.000 V ±100 mV
- Discharge overcurrent protection voltage: 0.050 V ±15 mV
- Charge overcurrent protection voltage: -0.050 V ±20 mV
- Short-circuit protection voltage: 0.500 V ±100 mV
- Charger detection and load detection
- 0 V battery charging: Allowed
- Over-discharge sleep function: Yes
- Discharge overcurrent release condition: Load disconnection
- Discharge overcurrent release voltage: VRIOV
- Low current consumption
- Active: 1.5 μA (typ.) (Ta = +25°C)
- Sleep: 100 nA (max.) (Ta = +25°C)
- Compact package: SOT23-6
- Lead-free, halogen-free green product
