XIN FEI HONGDatasheet (PDF)

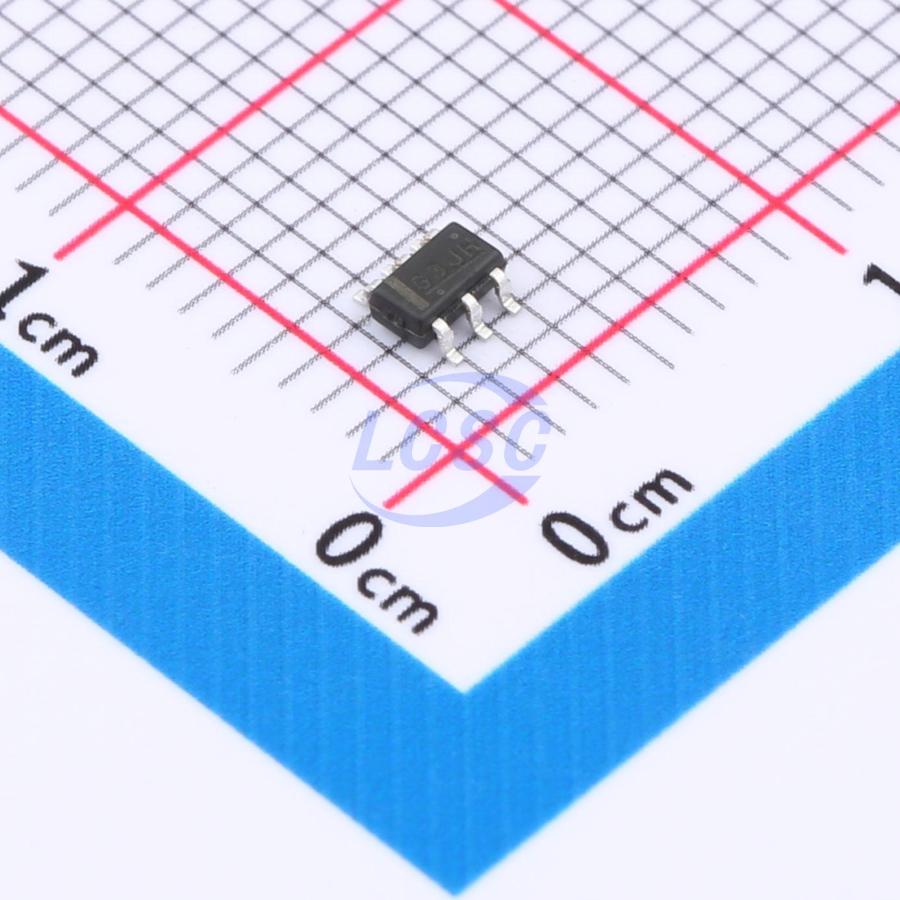

FH9261-G3JH
Battery Protection IC Lithium-ion/Polymer SOT-23-6
SOT-23-6ROHS CompliantActive
Single-cell lithium-ion/lithium-polymer battery protection IC
- Manufacturer
- XIN FEI HONG
- Manufacturer part #
- FH9261-G3JH
- Store part #
- C19273258
- Package / case
- SOT-23-6
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,060 in stock
#C19273258
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹3.82 | ₹76.40 |
| 200+ | ₹2.99 | ₹598.00 |
| 600+ | ₹2.51 | ₹1,506.00 |
| 3,000+ | ₹2.24 | ₹6,720.00 |
| 9,000+ | ₹1.98 | ₹17,820.00 |
| 21,000+ | ₹1.85 | ₹38,850.00 |
20 × ₹3.82
₹76.40
excl. GST
₹90.15 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
FH9261-G3JH
₹76.40 for 20 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Quiescent Current
- 100nA
- 0V Battery Charge
- Support
- Operating Voltage
- 1V~7.5V
- Type of Battery
- Lithium Battery
- Features
- Overcharge protection;Over-discharge protection;Overcurrent Protection;Short-Circuit Protection
- The Chip Type
- Protection IC
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.048 g
Overview
FH9261-G3JH integrates a high-precision voltage detection circuit and delay circuit, providing overcharge, overdischarge, and overcurrent protection for batteries by monitoring battery voltage and current. Suitable for protection circuits of single-cell Li-ion/Li-polymer rechargeable batteries.
Applications
- Single-cell Li-ion/LiPo rechargeable battery
Key features
- High-accuracy voltage detection
- Overcharge protection voltage: 4.280 V
- Overcharge release voltage: 4.080 V
- Over-discharge protection voltage: 3.000 V
- Over-discharge release voltage: 3.000 V
- Discharge overcurrent protection voltage: 0.080 V
- Short-circuit protection voltage: 1.000 V
- Charge overcurrent protection voltage: -0.100 V
- Charger detection and load detection
- 0 V battery charging: Allowed
- Sleep function: Yes
- Discharge overcurrent release condition: Load disconnection
- Discharge overcurrent release voltage: VDIOV
- Low current consumption
- Active: 1.5 μA (typ.) (Ta = +25°C)
- Sleep: 0.1 μA (max.) (Ta = +25°C)
- Lead-free, halogen-free
