XIN FEI HONGDatasheet (PDF)

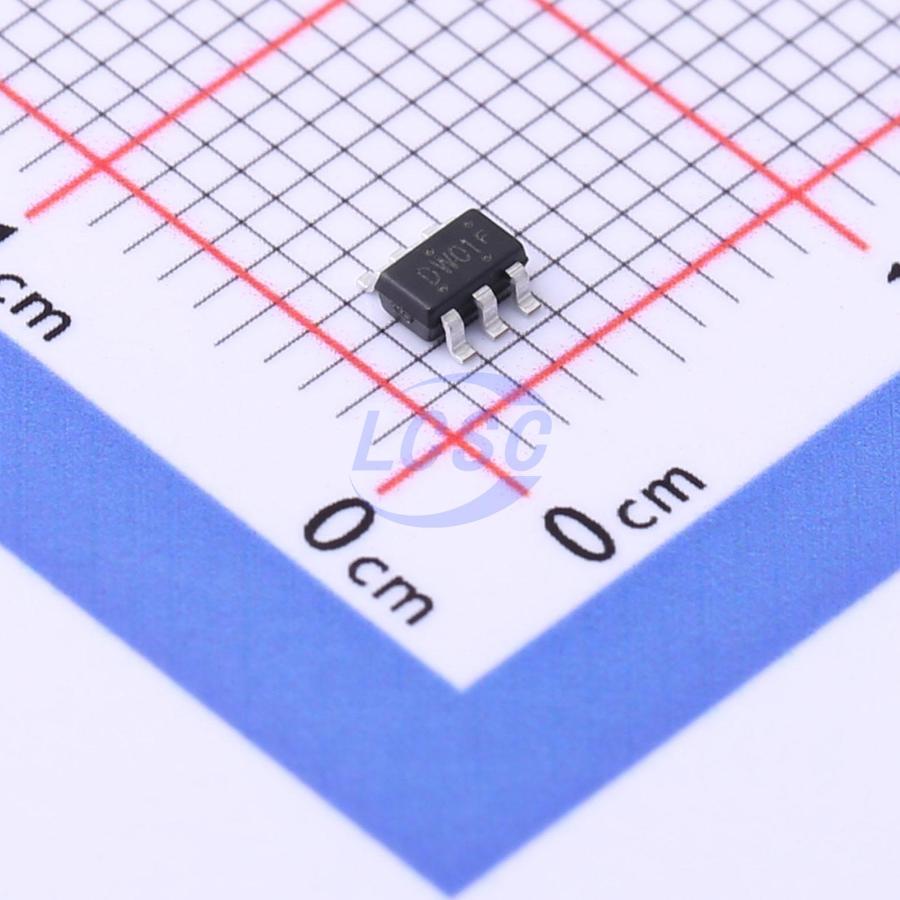

FHDW01A
Battery Protection IC Lithium-ion/Polymer SOT-23-6
SOT-23-6ROHS CompliantActive
High-precision lithium battery protection circuit
- Manufacturer
- XIN FEI HONG
- Manufacturer part #
- FHDW01A
- Store part #
- C2929050
- Package / case
- SOT-23-6
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,460 in stock
#C2929050
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹3.48 | ₹69.60 |
| 200+ | ₹2.73 | ₹546.00 |
| 600+ | ₹2.30 | ₹1,380.00 |
| 3,000+ | ₹2.05 | ₹6,150.00 |
| 9,000+ | ₹1.83 | ₹16,470.00 |
| 21,000+ | ₹1.71 | ₹35,910.00 |
20 × ₹3.48
₹69.60
excl. GST
₹82.13 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
FHDW01A
₹69.60 for 20 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Quiescent Current
- 700nA
- 0V Battery Charge
- Support
- Operating Voltage
- 1.5V~10V
- Type of Battery
- Lithium Battery
- Features
- Overcharge protection;Over-discharge protection;Overcurrent Protection;Short-Circuit Protection
- The Chip Type
- Protection IC
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.047 g
Overview
FHDW01A is a high-precision protection circuit for single-cell rechargeable lithium batteries, integrating overcharge protection, over-discharge protection, and overcurrent discharge protection in a single device.
Applications
- Charge/discharge protection circuits for lithium batteries
- High-precision protection for phone battery packs or other lithium battery applications
Key features
- Ideal protection circuit for single-cell Li-ion or Li-polymer batteries
- High-accuracy protection voltage (overcharge/overdischarge) detection
- Selectable low-power mode enable/disable under overdischarge conditions
- High-accuracy overdischarge current protection detection
- Battery short-circuit protection
- Multiple detection voltage and delay time options across device variants
- 0V battery charge enable/disable selectable by device variant
- Minimal external components
- Ultra-compact SOT23-6 package
