FM05PF

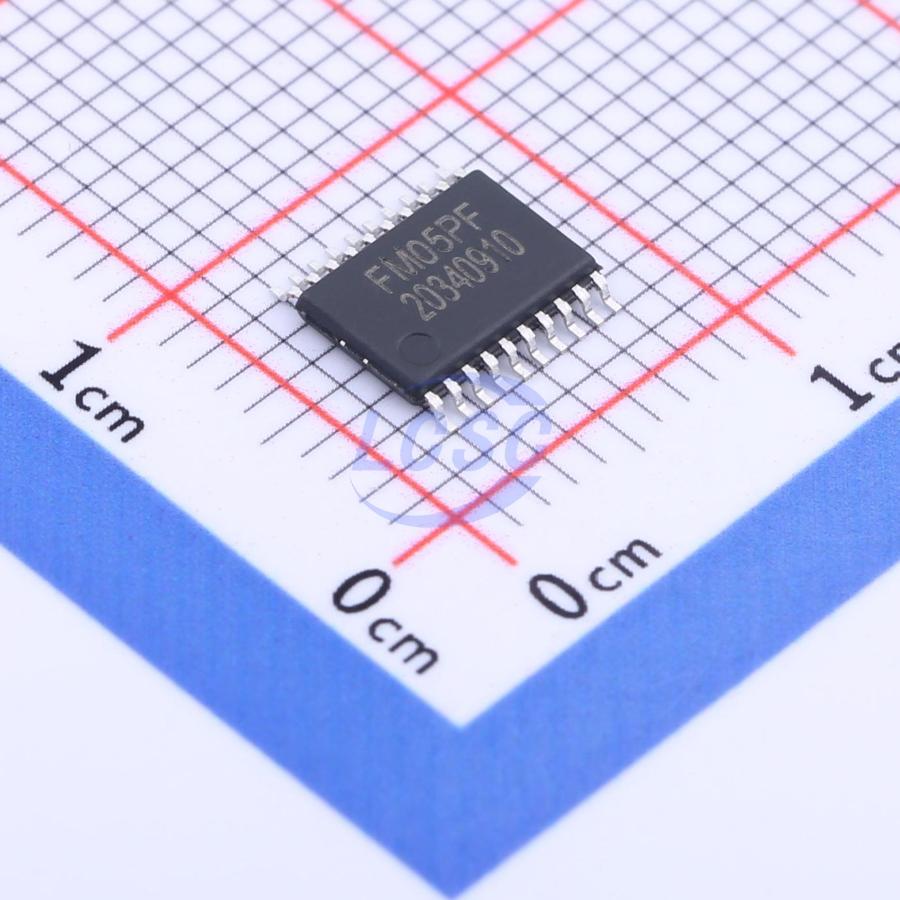

Battery Protection IC Lithium-ion/Polymer TSSOP-20
5-cell rechargeable battery protection IC
- Manufacturer
- FM
- Manufacturer part #
- FM05PF
- Store part #
- C2927933
- Package / case
- TSSOP-20
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,500 in stock
#C2927933
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.82 | ₹84.10 |
| 50+ | ₹13.30 | ₹665.00 |
| 150+ | ₹11.54 | ₹1,731.00 |
| 500+ | ₹10.21 | ₹5,105.00 |
| 2,500+ | ₹9.16 | ₹22,900.00 |
| 5,000+ | ₹8.63 | ₹43,150.00 |
5 × ₹16.82
₹84.10
excl. GST
₹99.24 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
FM05PF
₹84.10 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Quiescent Current
- 6uA
- Type of Battery
- Lithium Battery
- Operating Voltage
- 5V~30V
- Features
- Overcharge protection;Over-discharge protection;Overcurrent Protection;Short-Circuit Protection
- The Chip Type
- Protection IC
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.156 g
Overview
The FM05PF series is a professional 5-cell rechargeable battery protection IC with high integration. It implements battery protection functions including overcharge, overdischarge, discharge overcurrent, short circuit, charge overcurrent, and temperature protection by monitoring individual cell voltages, charge/discharge current, and ambient temperature. Protection delays for overcharge, overdischarge, and overcurrent can be adjusted via external capacitors.
Applications
- Power tools
- Electric bicycles
- UPS backup power supplies
Key features
- High-accuracy voltage detection per cell:
- Overcharge detection voltage 3.75V, accuracy ±25mV (at +25°C), accuracy ±40mV (-40°C to +85°C)
- Overcharge release voltage 3.60V, accuracy ±50mV
- Over-discharge detection voltage 2.20V, accuracy ±80mV
- Over-discharge release voltage 2.40V, accuracy ±100mV
- 3-level discharge overcurrent detection:
- Overcurrent detection voltage 1: 0.10V, accuracy ±15mV
- Overcurrent detection voltage 2: 0.20V
- Short-circuit detection voltage: 0.40V
- Charge overcurrent detection, charge overcurrent detection voltage -0.05V
- Supports 5-cell battery pack configurations
- Externally adjustable delay via external capacitor for overcharge, over-discharge, overcurrent 1, and overcurrent 2 detection delay times
- Temperature protection
- Wire-break protection
- Low power consumption:
- Operating (with temperature protection): 25μA typical
- Operating (without temperature protection): 15μA typical
- Sleep mode: 6μA typical
