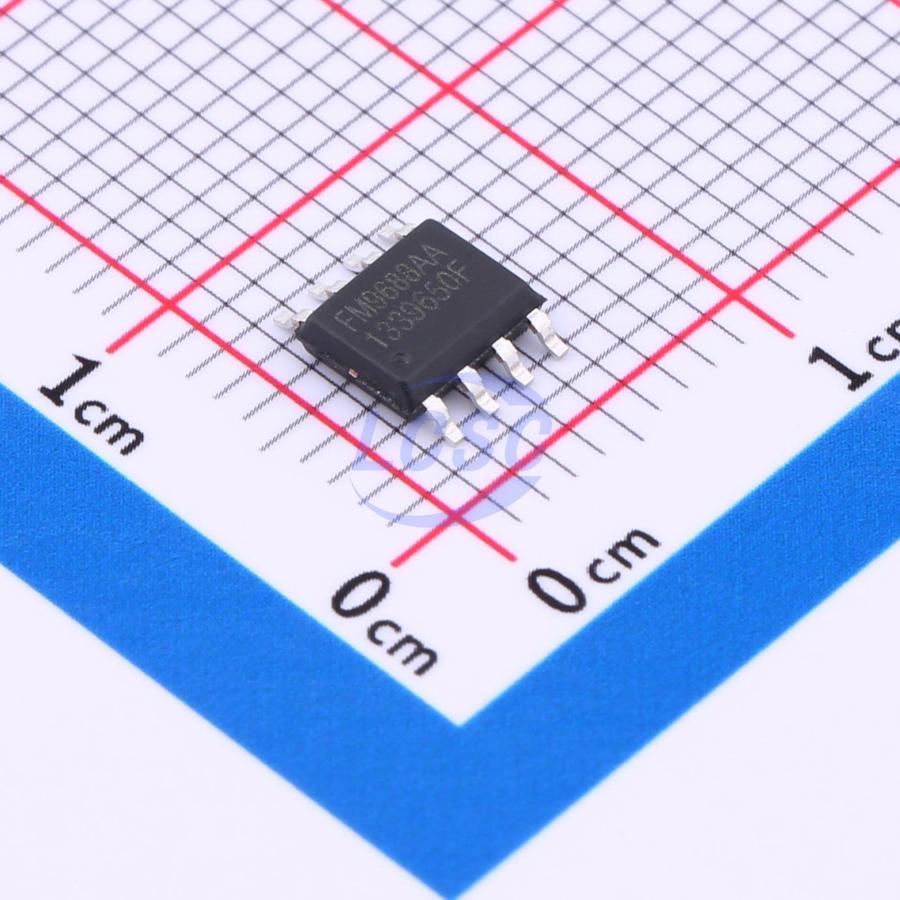

FM9688AA/F
Linear Charging IC Lithium-ion SOP-8
Mobile power management IC
- Manufacturer
- FM
- Manufacturer part #
- FM9688AA/F
- Store part #
- C2835258
- Package / case
- SOP-8
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,105 in stock
#C2835258
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.99 | ₹74.95 |
| 50+ | ₹11.88 | ₹594.00 |
| 150+ | ₹10.32 | ₹1,548.00 |
| 500+ | ₹9.16 | ₹4,580.00 |
| 2,500+ | ₹7.94 | ₹19,850.00 |
| 4,000+ | ₹7.47 | ₹29,880.00 |
5 × ₹14.99
₹74.95
excl. GST
₹88.44 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
FM9688AA/F
₹74.95 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Quiescent Current
- 10uA
- Type of Battery
- Lithium Battery
- Operating Voltage
- 4.5V~5.25V
- Features
- Trickle charging;Constant current charging;Constant voltage charging;Automatic recharge;Charge termination;Programmable charging current;Overvoltage protection;Overcurrent Protection;Short-Circuit Protection;Soft-start
- The Chip Type
- Charging IC
- Charge Current - Max
- 600mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.16 g
Overview
FM9688AA/BA is an integrated power management IC specifically designed for power banks, integrating lithium battery charge management, high-efficiency boost output, LED indication, and key function modules. FM9688AA/BA charges in a linear mode, incorporating a full charging sequence including trickle charge, constant current charge, and constant voltage charge. The float voltage accuracy can reach ±1% across the full temperature range, with the additional advantages of low charging current ripple and stable output voltage. The DC-DC synchronous boost module of FM9688AA/BA integrates internal power MOSFETs, providing a 5V/500mA output with up to 90% boost conversion efficiency and output voltage accuracy of ±1%. FM9688AA/BA features multiple protection designs, including load overcurrent protection, input overvoltage protection, output current limiting protection, output short-circuit protection, and chip overtemperature protection. The chip ports are also equipped with high-performance ESD protection circuits, ensuring extremely high reliability. FM9688AA features automatic load detection, which automatically enables the boost output upon detecting a load. FM9688AA/BA is currently available in the SOP8L package.
Applications
- Bluetooth earphone charging case
- Power bank
- Tablet, smartphone
- Other portable devices
Key features
- Simple peripheral circuit, no external MOS required
- Programmable linear charging current, up to 600mA@5V
- Low standby current: FM9688AA ~70μA, FM9688B ~13μA
- Selectable full-charge voltage, charging float voltage accuracy ±1%
- Soft-start function
- Three-stage charging: trickle / constant current / constant voltage
- Boost output up to 500mA@5V
- Overall boost efficiency up to 90%
- Automatic battery boost supply on input power-on/power-off
- Multiple protection features: output current limiting, short-circuit protection, etc.
- No-load detection disables boost function; default no-load threshold ~20~30mA
- No-load threshold adjustable in multiple steps: 5~30mA
- Two key modes available
- 2 LEDs for charge/discharge indication and fault indication, multiple modes selectable
- Package: SOP8L
