Advanced Analog TechnologyDatasheet (PDF)

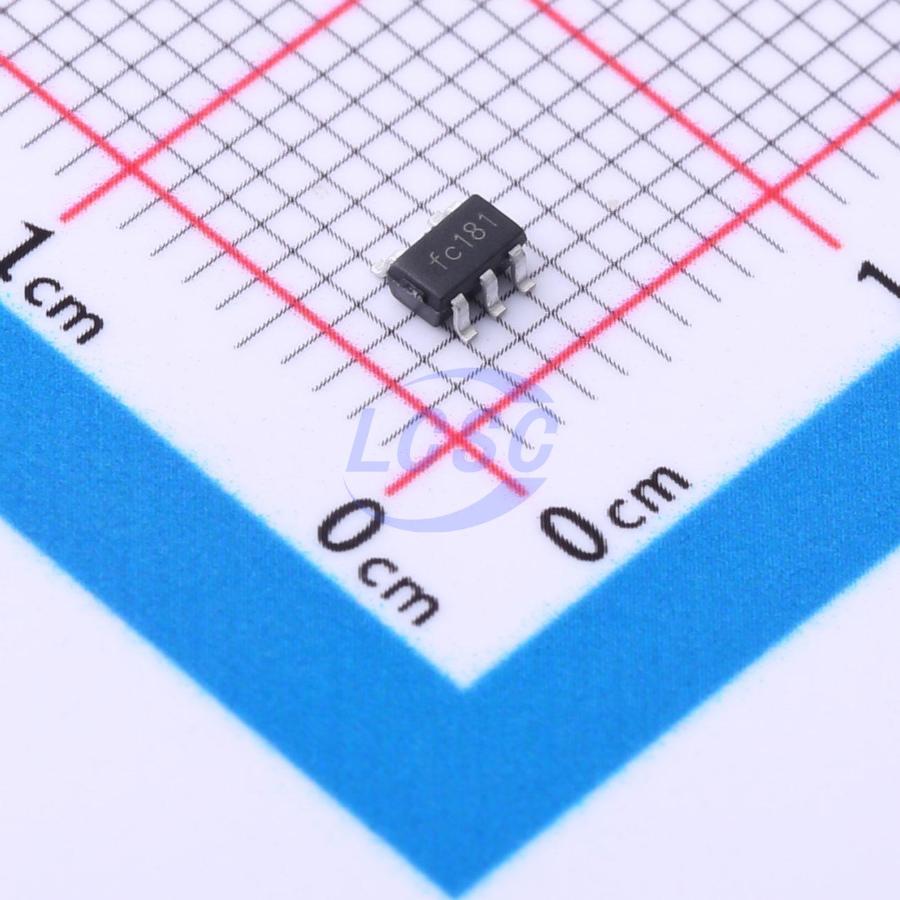

FP130AKR-LF
350uA 1 2.7V~28V 120dB 2uA 400uA SOT-23-5L Instrumentation, Op Amps, Buffer Amps RoHS
SOT-23-5LROHS CompliantActive
Rail Current Measurement IC
- Manufacturer
- Advanced Analog Technology
- Manufacturer part #
- FP130AKR-LF
- Store part #
- C2897210
- Package / case
- SOT-23-5L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,162 in stock
#C2897210
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹55.72 | ₹55.72 |
| 10+ | ₹43.80 | ₹438.00 |
| 30+ | ₹38.61 | ₹1,158.30 |
| 100+ | ₹32.10 | ₹3,210.00 |
| 500+ | ₹29.28 | ₹14,640.00 |
| 1,000+ | ₹27.54 | ₹27,540.00 |
1 × ₹55.72
₹55.72
excl. GST
₹65.75 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
FP130AKR-LF
₹55.72 for 1 + GST
Specifications
- Output Current
- 350uA
- Number of Channels
- 1
- Vcm - Common Mode Voltage
- 2.7V~28V
- Operating Temperature
- -20℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 120dB
- Ib - Input Bias Current
- 2uA
- Input Offset Voltage Drift(Vos TC)
- 4uV/℃
- -3dB Bandwidth
- 32kHz
- Quiescent Current
- 400uA
- Differential Voltage
- -30V~1.5V
- Single Supply
- 2.7V~28V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.06 g
Overview
The FP130A is a wide common mode range high side rail current measurement IC. It is suitable for power systems like battery charger or switching power supply applications. It includes a differential input amplifier and an NPN transistor with emitter output. With three external resistors, the rail current signal can be easily converted into an amplified voltage signal at the IC output pin. Also, the gain can be adjusted by changing the three external resistors values.
Applications
- Battery Charger
- High Side Rail Current Detector SPS (Adaptor)
- Current Sense Networking System
Key features
- Independent Power Supply Voltage: 2.7 to 28V
- Wide Input Common-Mode Voltage: 2.7 to 28V
- Source Current Emitter Output
- Three Resistors Gain Set-up
- Wide Temperature Range: -20°C to +125°C
- Package: SOT23-5L
