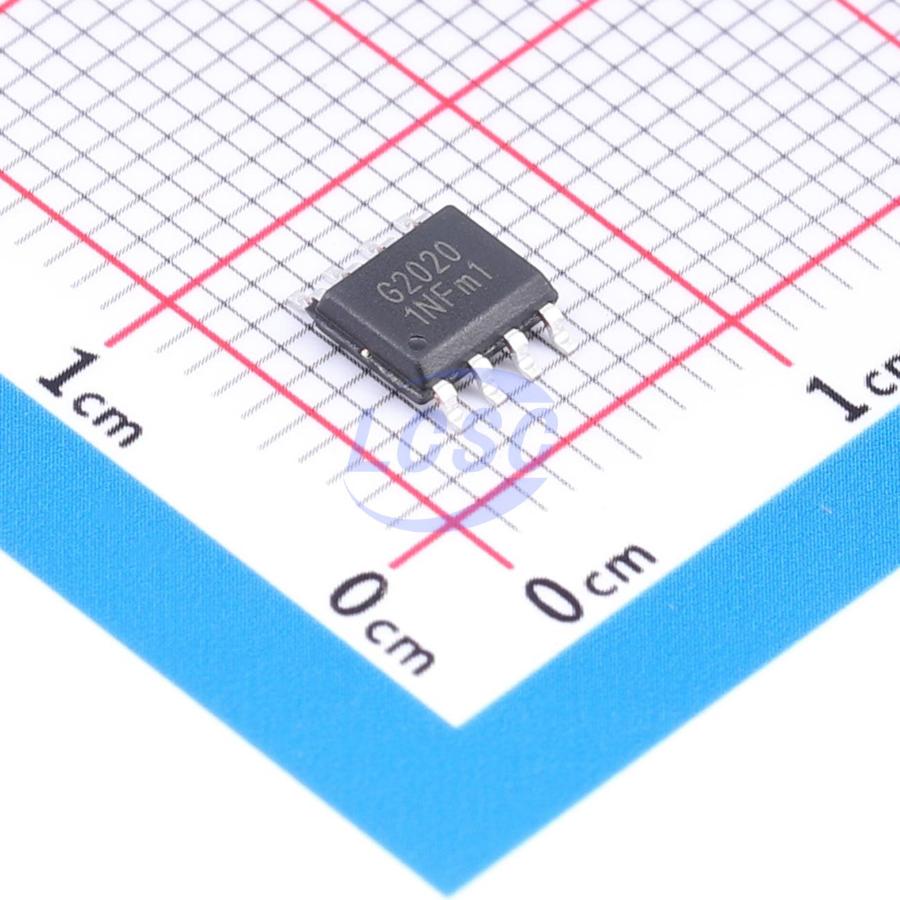

G2020
6V~20V 1.5A 1.2A SOP-8 Gate Drivers
- Manufacturer
- NCE
- Manufacturer part #
- G2020
- Store part #
- C53436210
- Package / case
- SOP-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,310 in stock
#C53436210
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹27.53 | ₹137.65 |
| 50+ | ₹21.29 | ₹1,064.50 |
| 150+ | ₹18.16 | ₹2,724.00 |
| 500+ | ₹15.82 | ₹7,910.00 |
| 2,500+ | ₹13.96 | ₹34,900.00 |
| 4,000+ | ₹13.02 | ₹52,080.00 |
5 × ₹27.53
₹137.65
excl. GST
₹162.43 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
G2020
₹137.65 for 5 + GST
Specifications
- Input Logic Level - Low
- 800mV
- Low Level Delay Time
- 150ns
- High Level Delay Time
- 140ns
- Quiescent Current
- 160uA
- Input Logic Level - High
- 2.5V
- Voltage - Supply
- 6V~20V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- Half-Bridge
- Current - Output Low(IOL)
- 1.5A
- Rise Time
- 50ns
- Fall Time
- 25ns
- Features
- Undervoltage Protection
- Current - Output High(IOH)
- 1.2A
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.218 g
Overview
G2020 is a high-voltage, high-speed power MOSFET high- and low-side gate driver IC with independent high-side and low-side referenced output channels. Fabricated using a high-voltage compatible process, the high- and low-side gate drive circuits are integrated on a single chip. Logic inputs are compatible with CMOS or LSTTL logic output levels down to 3.3V, with high-current pulse capability and shoot-through prevention dead-time logic on the outputs. The floating channel supports high-side N-channel power MOSFET driving, with a maximum floating supply voltage of 250V, requiring an external bootstrap circuit. Both high-side and low-side channels include undervoltage lockout (UVLO) protection. Offered in an SOP8 package, operating over a temperature range of -40℃ to 125℃.
Applications
- Motor Control
- Air Conditioner / Washing Machine
- General-Purpose Inverter
- Micro Inverter Drive
Key features
- Floating-channel bootstrap operation
- Maximum operating voltage up to +250V
- Compatible with 3.3V, 5V, and 15V input logic
- dVS/dt immunity up to ±50V/ns
- VS negative bias capability down to -9V
- Gate drive voltage range 6V to 20V
- Integrated undervoltage lockout (UVLO)
- VCC UVLO positive-going threshold 5.5V
- VCC UVLO negative-going threshold 5V
- VBS UVLO threshold 3.6V
- Cross-conduction prevention dead-time logic
- Dead time set at 200ns
- Propagation delay characteristics
- Turn-on/turn-off propagation delay Ton/Toff = 150ns/140ns
- Delay matching 50ns
- Wide temperature range -40°C ~ 125°C
- Output source/sink current capability 1.2A/1.5A
- RoHS compliant
- SOP8 package
