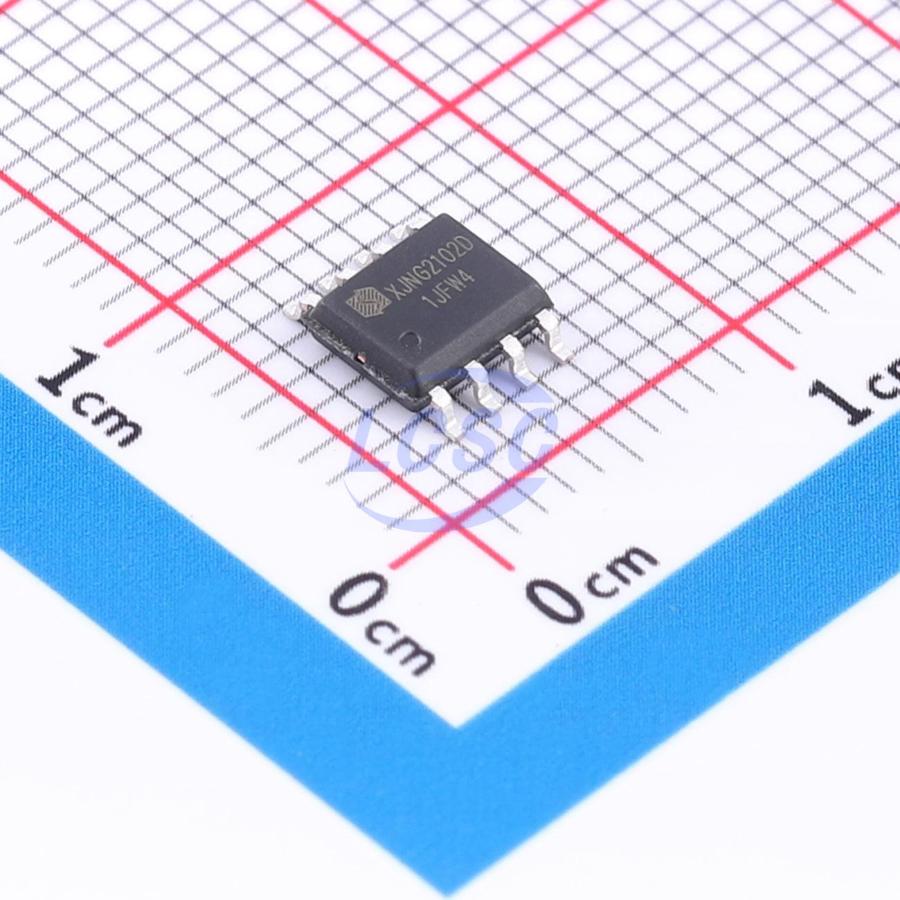

XJNG2102D
6V~20V 1.5A 1.2A SOP-8 Gate Drivers
- Manufacturer
- NCE
- Manufacturer part #
- XJNG2102D
- Store part #
- C53436492
- Package / case
- SOP-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,205 in stock
#C53436492
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹21.43 | ₹107.15 |
| 50+ | ₹17.30 | ₹865.00 |
| 150+ | ₹15.24 | ₹2,286.00 |
| 500+ | ₹13.69 | ₹6,845.00 |
| 2,500+ | ₹12.45 | ₹31,125.00 |
| 4,000+ | ₹11.83 | ₹47,320.00 |
5 × ₹21.43
₹107.15
excl. GST
₹126.44 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
XJNG2102D
₹107.15 for 5 + GST
Specifications
- Input Logic Level - Low
- 800mV
- Low Level Delay Time
- 150ns
- High Level Delay Time
- 140ns
- Quiescent Current
- 160uA
- Input Logic Level - High
- 2.5V
- Voltage - Supply
- 6V~20V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- Half-Bridge
- Current - Output Low(IOL)
- 1.5A
- Rise Time
- 50ns
- Fall Time
- 40ns
- Features
- Undervoltage Protection
- Current - Output High(IOH)
- 1.2A
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.289 g
Overview
XJNG2102D is a high-voltage, high-speed power MOSFET high- and low-side gate driver IC featuring independent high-side and low-side referenced output channels. Fabricated using a high-voltage compatible process, the high- and low-side gate drive circuits are integrated on a single chip. Logic inputs are compatible with CMOS or LSTTL logic output levels down to 3.3V, with high-current pulse drive capability and shoot-through prevention dead-time logic. The floating channel supports high-side N-channel power MOSFET driving, with a maximum floating supply voltage of 250V via an integrated bootstrap circuit. Both high-side and low-side channels include undervoltage lockout (UVLO) protection. Available in SOP8 package, operating over a temperature range of -40°C to 125°C.
Applications
- Motor Control
- Air Conditioner / Washing Machine
- General-Purpose Inverter
- Micro Inverter Drive
Key features
- Bootstrap floating high-side channel
- Maximum operating voltage +250V
- Compatible with 3.3V, 5V, and 15V input logic
- dVS/dt immunity up to ±50V/ns
- VS negative bias capability down to -9V
- Gate drive voltage range 6V to 20V
- Integrated UVLO
- VCC UVLO positive-going threshold 5.5V
- VCC UVLO negative-going threshold 5V
- VBS UVLO threshold 3.6V
- Shoot-through prevention dead-time logic
- Dead time 200ns
- Propagation delay characteristics
- Turn-on/turn-off propagation delay Ton/Toff = 150ns/140ns
- Delay matching 50ns
- Wide temperature range -40°C ~ 125°C
- Output stage source/sink current capability 1.2A/1.5A
- RoHS compliant
- SOP8 package
