G2021

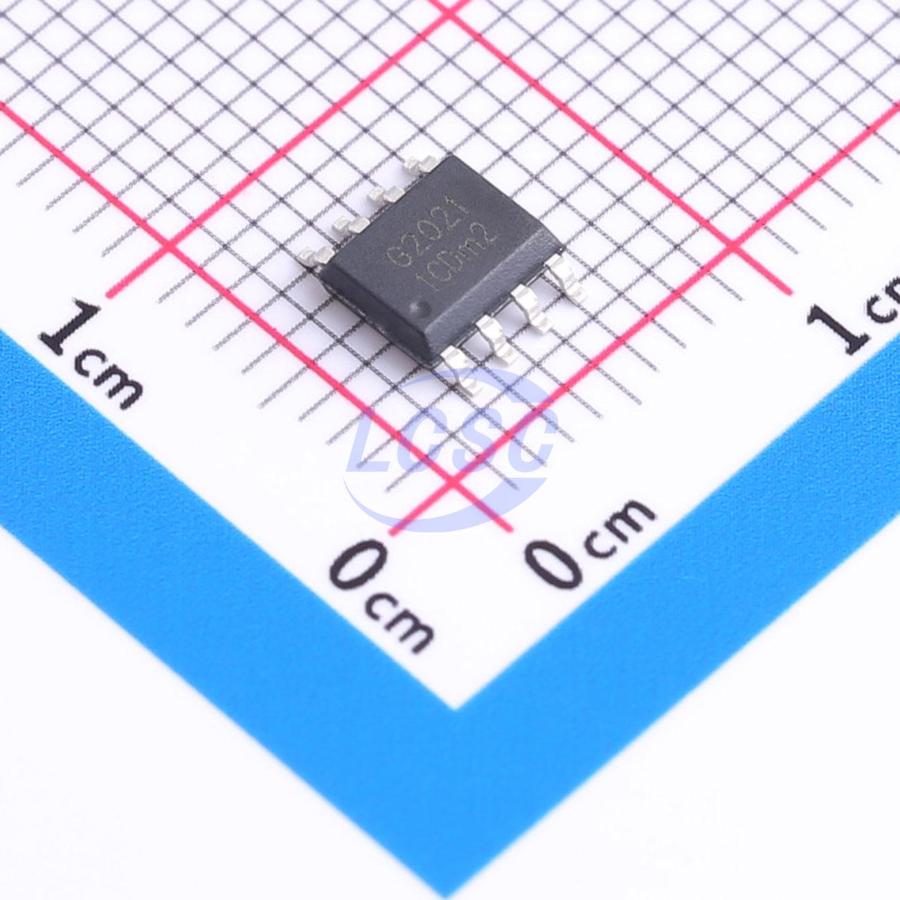

Gate Driver IC MOSFET IGBT SOIC-8
Single-phase high-side and low-side power MOSFET/IGBT driver IC
- Manufacturer
- WXNSIC
- Manufacturer part #
- G2021
- Store part #
- C7421050
- Package / case
- SOIC-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8,428 in stock
#C7421050
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹19.55 | ₹19.55 |
| 10+ | ₹15.69 | ₹156.90 |
| 30+ | ₹13.76 | ₹412.80 |
| 100+ | ₹12.32 | ₹1,232.00 |
| 500+ | ₹11.15 | ₹5,575.00 |
| 1,000+ | ₹10.58 | ₹10,580.00 |
1 × ₹19.55
₹19.55
excl. GST
₹23.07 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
G2021
₹19.55 for 1 + GST
Specifications
- Input Logic Level - Low
- 800mV
- Low Level Delay Time
- 150ns
- High Level Delay Time
- 140ns
- Quiescent Current
- 160uA
- Input Logic Level - High
- 2.5V
- Voltage - Supply
- 6V~20V
- Driven Configuration
- High Side;Low Side
- Operating Temperature
- -40℃~+125℃
- Current - Output Low(IOL)
- 1.5A
- Rise Time
- 50ns
- Fall Time
- 40ns
- Features
- Dead-time control;Interleaved conduction protection
- Current - Output High(IOH)
- 1.2A
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.159 g
Overview
The G2021 is a family of high-voltage, high-speed power MOSFET high- and low-side gate driver ICs. It features independent high-side and low-side referenced output channels. A high-voltage compatible process enables monolithic integration of both high- and low-side gate drive circuits. Logic inputs are compatible with CMOS or LSTTL logic output levels down to 3.3V. The outputs provide high-current pulse capability with shoot-through-prevention deadtime logic. The floating channel supports high-side N-channel power MOSFET driving, with a maximum floating supply offset voltage of 250V. Packaged in SOIC8, the device operates over a temperature range of -40°C to 125°C.
Applications
- Motor Control
- Air Conditioner/Washing Machine
- General-Purpose Inverter
- Micro Inverter Drive
Key features
- Bootstrap floating high-side channel
- Maximum operating voltage +250V
- Compatible with 3.3V, 5V, and 15V input logic
- dVs/dt immunity up to ±50V/ns
- Vs negative bias capability down to -9V
- Gate drive voltage range 6V to 20V
- Integrated UVLO circuit
- UVLO positive threshold 5.5V
- UVLO negative threshold 5V
- Anti-shoot-through dead-time logic
- Dead time 200ns
- Propagation delay characteristics
- Turn-on/turn-off propagation delay Ton/Toff = 150ns/140ns
- Delay matching time 50ns
- Wide temperature range -40°C~125°C
- Output stage source/sink current capability 1.2A/1.5A
- RoHS compliant
- SOIC8 (S)
