GigaDevice Semicon BeijingDatasheet (PDF)

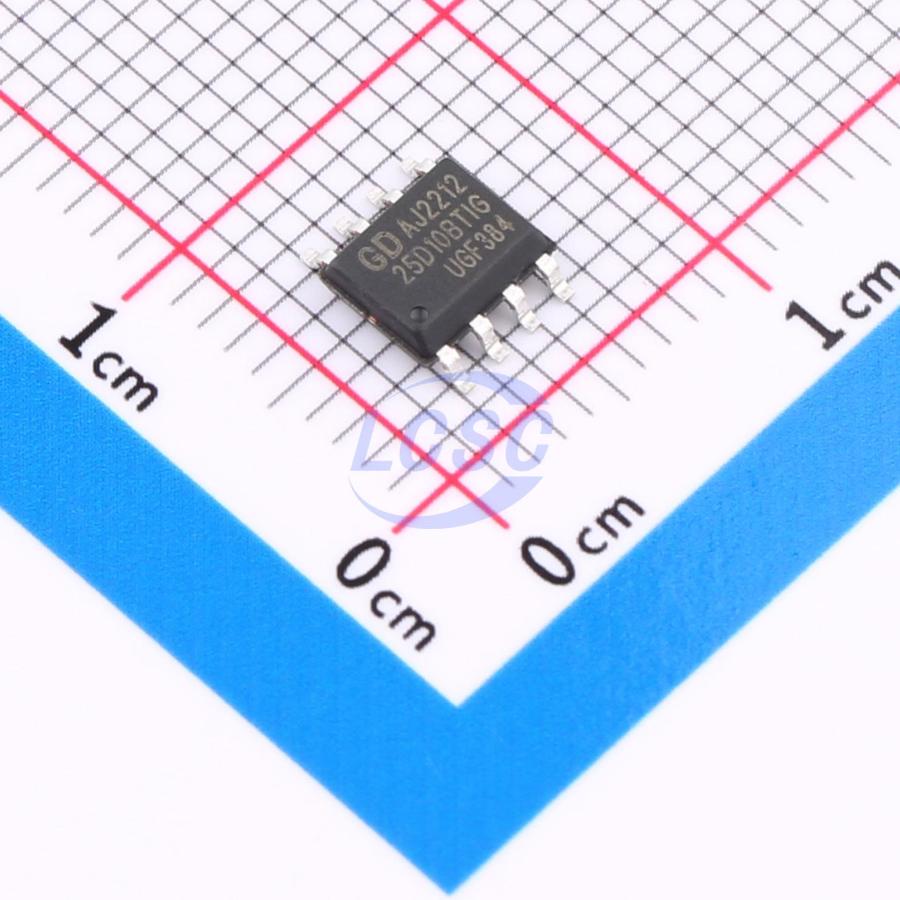

GD25D10BTIGR
1Mbit 2.7V~3.6V 80MHz SPI SOP-8-150mil Memory RoHS
SOP-8-150milROHS CompliantActive
Standard and Dual Serial Flash
- Manufacturer
- GigaDevice Semicon Beijing
- Manufacturer part #
- GD25D10BTIGR
- Store part #
- C5333617
- Package / case
- SOP-8-150mil
- Category
- Memory
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,749 in stock
#C5333617
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹73.00 | ₹73.00 |
| 10+ | ₹56.49 | ₹564.90 |
| 30+ | ₹49.55 | ₹1,486.50 |
| 100+ | ₹40.85 | ₹4,085.00 |
| 500+ | ₹36.94 | ₹18,470.00 |
| 1,000+ | ₹34.54 | ₹34,540.00 |
1 × ₹73.00
₹73.00
excl. GST
₹86.14 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
GD25D10BTIGR
₹73.00 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Write enable latch;Hardware write protection;Software write protection
- Memory Size
- 1Mbit
- Voltage - Supply
- 2.7V~3.6V
- Program / Erase Cycles
- 100,000 cycles
- Clock Frequency
- 80MHz
- Data Retention - TDR (Year)
- 20 Years
- Block Erase Time(tBE)
- 400ms@(64KB)
- Page Programming Time (Tpp)
- 700us
- Interface
- SPI
- Standby Supply Current
- 5uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.215 g
Overview
The GD25D10B/05B (1M/512K-bit) Serial flash supports the standard Serial Peripheral Interface (SPI), and supports the Dual Output: Serial Clock, Chip Select, Serial Data I/O0 (SI), O1 (SO). The Dual Output data is transferred with speed of 160Mbits/s.
Key features
- 1M/512K-bit Serial Flash - 128K/64K-byte - 256 bytes per programmable page
- Standard, Dual Output - Standard SPI: SCLK, CS#, SI, SO, WP# - Dual Output: SCLK, CS#, IOO, O1, WP#
- Clock Frequency - 80MHz for fast read with 30PF load - Dual Output Data transfer up to 160Mbits/s
- Software/Hardware Write Protection - Write protect all/portion of memory via software - Enable/Disable protection with WP# Pin
- Cycling endurance - Minimum 100,000 Program/Erase Cycles
- Data retention - 20-year data retention typical
- Program/Erase Speed - Page Program time: 0.7ms typical - Sector Erase time: 40ms typical - Block Erase time: 0.2/0.4s typical - Chip Erase time: 0.8/0.4s typical
- Flexible Architecture - Sector of 4K-byte - Block of 32/64k-byte
- Low Power Consumption - 18mA maximum active current - 5uA maximum power down current
- Single Power Supply Voltage - Full voltage range: 2.7~3.6V
- Package option - SOP8 150MIL - TSSOP8 173MIL - USON8 2x3mm
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | GD25D10CTIGR#C2896593GigaDevice Semicon Beijing · SOP-8-150mil | GigaDevice Semicon Beijing | SOP-8-150mil | 20 | ₹161.38 · 20 in stock | View |
 | GD25D10CTEGR#C23821519GigaDevice Semicon Beijing · SOP-8-150mil | GigaDevice Semicon Beijing | SOP-8-150mil | 1,325 | ₹37.94 · 1,325 in stock | View |
 | GD25WD10CTIGR#C395499GigaDevice Semicon Beijing · SOP-8-150mil | GigaDevice Semicon Beijing | SOP-8-150mil | 1,705 | ₹43.63 · 1,705 in stock | View |
 | GD25D10CTIG#C395518GigaDevice Semicon Beijing · SOP-8 | GigaDevice Semicon Beijing | SOP-8 | On request | Price on request | Quote |
