GigaDevice Semicon BeijingDatasheet (PDF)

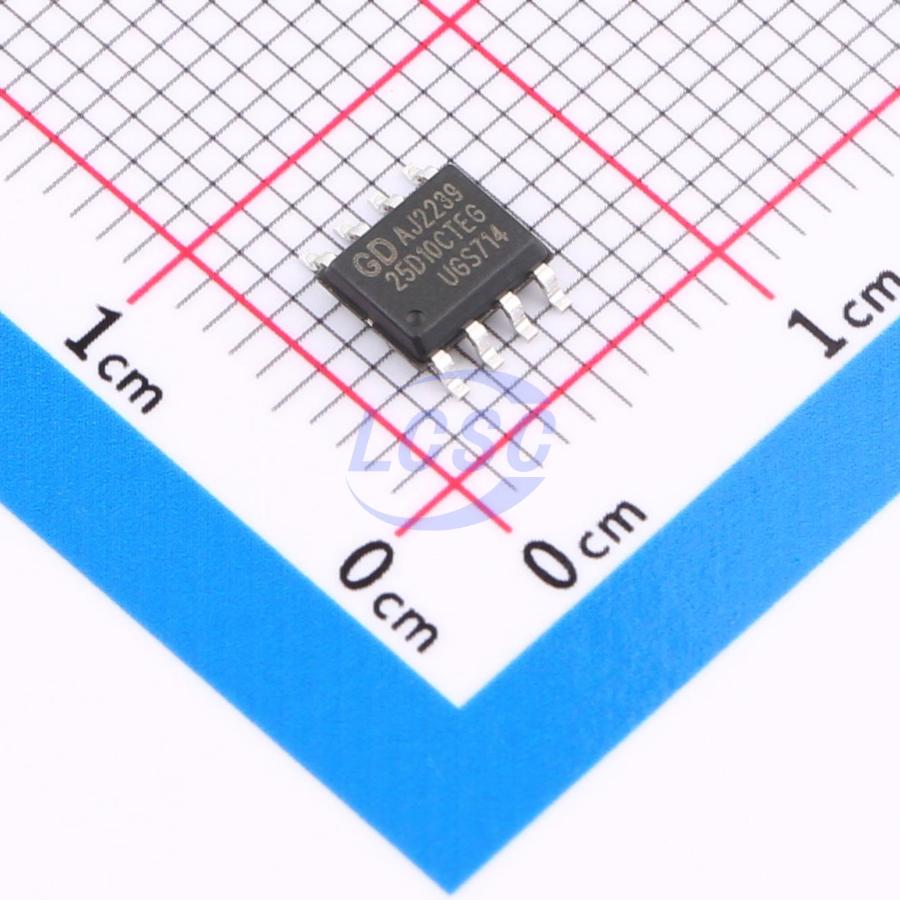

GD25D10CTEGR
1Mbit 2.7V~3.6V 100MHz SPI SOP-8-150mil Memory RoHS
SOP-8-150milROHS CompliantActive
3.3V Uniform Sector Standard and Dual Serial Flash
- Manufacturer
- GigaDevice Semicon Beijing
- Manufacturer part #
- GD25D10CTEGR
- Store part #
- C23821519
- Package / case
- SOP-8-150mil
- Category
- Memory
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,325 in stock
#C23821519
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹37.94 | ₹189.70 |
| 50+ | ₹30.36 | ₹1,518.00 |
| 150+ | ₹27.12 | ₹4,068.00 |
| 500+ | ₹23.07 | ₹11,535.00 |
| 3,000+ | ₹21.26 | ₹63,780.00 |
| 6,000+ | ₹20.19 | ₹1,21,140.00 |
5 × ₹37.94
₹189.70
excl. GST
₹223.85 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
GD25D10CTEGR
₹189.70 for 5 + GST
Specifications
- Features
- Write enable latch;Hardware write protection;Software write protection
- Memory Size
- 1Mbit
- Voltage - Supply
- 2.7V~3.6V
- Program / Erase Cycles
- 100,000 cycles
- Clock Frequency
- 100MHz
- Data Retention - TDR (Year)
- 20 Years
- Page Programming Time (Tpp)
- 700us
- Interface
- SPI
- Standby Supply Current
- 0.1uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.23 g
Overview
GD25D10C/05C (1M/512K-bit) Serial flash supports the standard Serial Peripheral Interface (SPI), and supports the Dual Output: Serial Clock, Chip Select, Serial Data I/O0 (SI), O1 (SO). The Dual Output data is transferred with speed of 160Mbits/s.
Key features
- 1M/512K-bit Serial Flash - 128K/64K-byte - 256 bytes per programmable page
- Standard SPI, Dual Output - Standard SPI: SCLK, CS#, SI, SC, WP# - Dual Output: SCLK, CS#, IOO, O1, WP#
- Clock Frequency - 100MHz for fast read with 30PF load - Dual Output Data transfer up to 160Mbits/s
- Software/Hardware Write Protection - Write protect all/portion of memory via software - Enable/Disable protection with WP# Pin
- Minimum 100,000 Program/Erase Cycles
- Data retention - 20-year data retention typical
- Fast Program/Erase Speed - Page Program time: 0.7ms typical - Sector Erase time: 100ms typical - Block Erase time: 0.3/0.5s typical - Chip Erase time: 1/0.5s typical
- Flexible Architecture - Uniform Sector of 4K-byte - Uniform Block of 32/64K-byte
- Low Power Consumption - 0.1uA typical standby current - 0.1uA typical power down current
- Advanced Security Features - 128-bit Unique ID
- Single Power Supply Voltage - Full voltage range: 2.7~3.6V
- Package option - SOP8 150mil - SOP8 208mil - TSSOP8 173mil - DIP8 300mil - USON8 3*2mm - USON8 1.5*1.5mm
