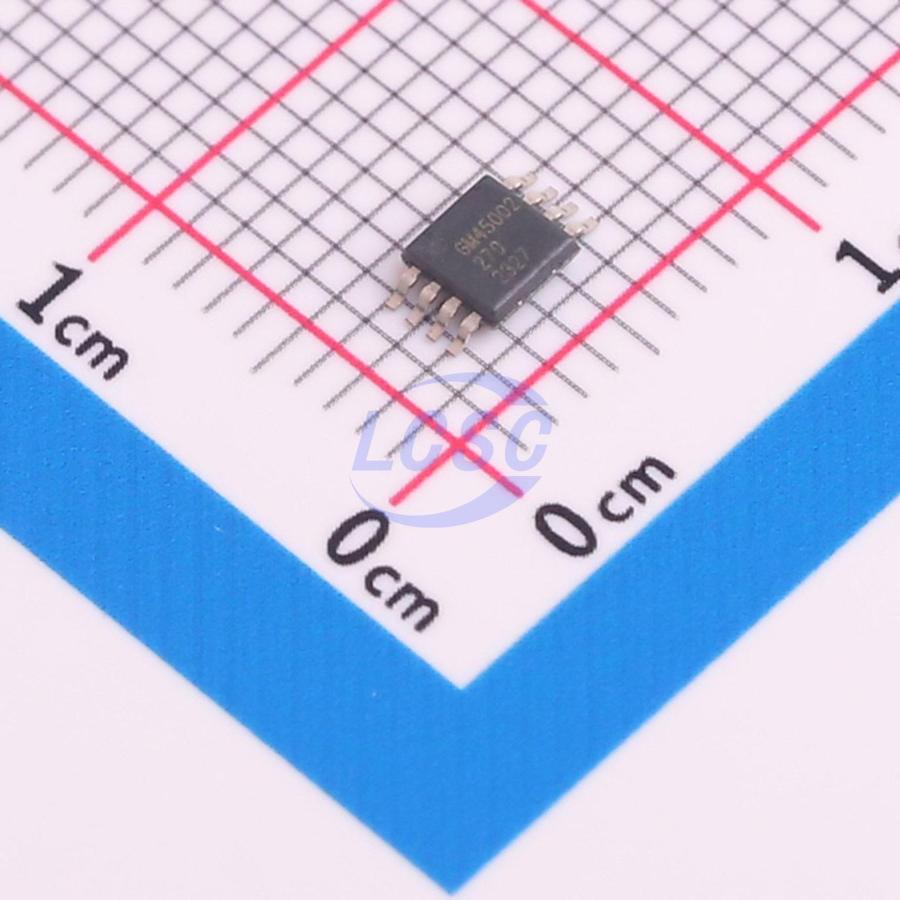

GM45002ARMZ-R7
220mA 2 6uV 11V/us 0.5pA 107dB 28MHz 6mA Rail-to-Rail Input, Rail-to-Rail Output MSOP-8-EP Instrumentation, Op Amps, Buffer Amps
MSOP-8-EPRoHSActive
5V precision CMOS operational amplifier
- Manufacturer
- GONGMOSEMI
- Manufacturer part #
- GM45002ARMZ-R7
- Store part #
- C20421906
- Package / case
- MSOP-8-EP
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,275 in stock
#C20421906
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹270.87 | ₹270.87 |
| 10+ | ₹225.73 | ₹2,257.30 |
| 30+ | ₹197.51 | ₹5,925.30 |
| 100+ | ₹168.64 | ₹16,864.00 |
| 500+ | ₹155.62 | ₹77,810.00 |
| 1,000+ | ₹149.76 | ₹1,49,760.00 |
1 × ₹270.87
₹270.87
excl. GST
₹319.63 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
GM45002ARMZ-R7
₹270.87 for 1 + GST
Specifications
- Output Current
- 220mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 6uV
- Slew Rate
- 11V/us
- Input Offset Current(Ios)
- 250pA
- Operating Temperature
- -40℃~+125℃
- Ib - Input Bias Current
- 0.5pA
- Common Mode Rejection Ratio(CMRR)
- 107dB
- Input Offset Voltage Drift(Vos TC)
- 400nV/℃
- Gain Bandwidth Product
- 28MHz
- Quiescent Current
- 6mA
- Features
- Overvoltage protection;Reverse-phase input protection
- Input Voltage Noise Density
- 2.7nV/√Hz@10kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.7V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.219 g
