GONGMOSEMIDatasheet (PDF)

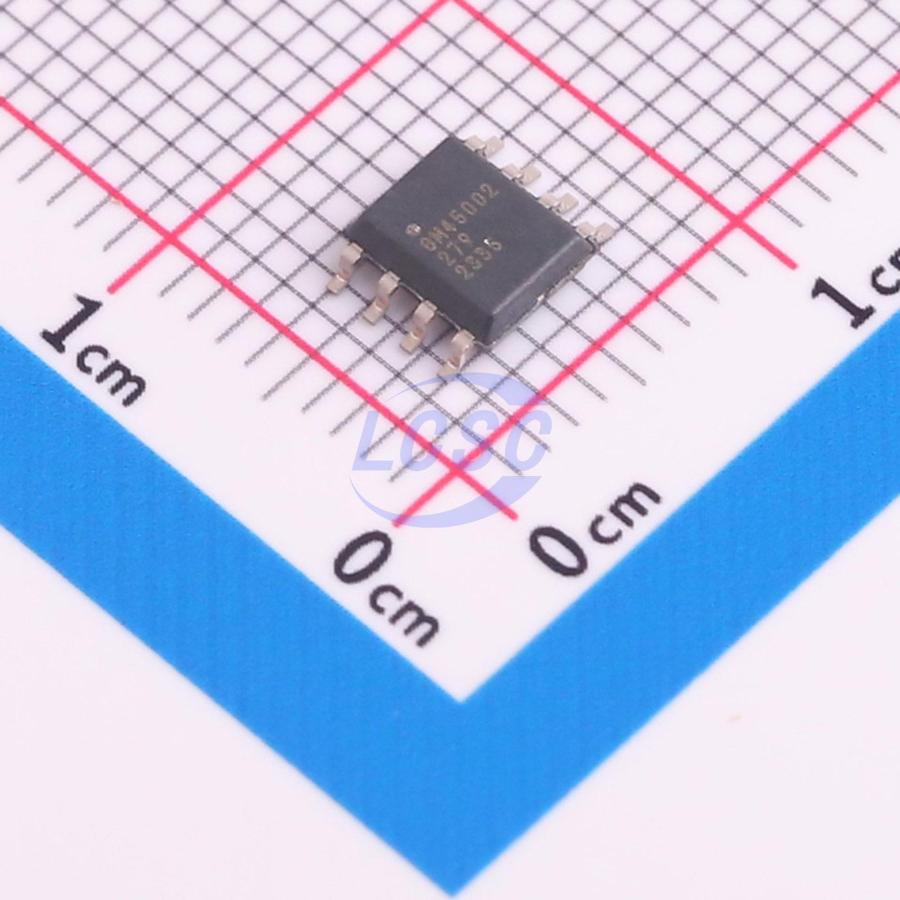

GM45002ARZ-R7
220mA 2 6uV 11V/us 0.5pA 107dB 28MHz 6mA Rail-to-Rail Input, Rail-to-Rail Output SOIC-8-EP Instrumentation, Op Amps, Buffer Amps
SOIC-8-EPRoHSActive
5V precision CMOS operational amplifier
- Manufacturer
- GONGMOSEMI
- Manufacturer part #
- GM45002ARZ-R7
- Store part #
- C20421907
- Package / case
- SOIC-8-EP
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,018 in stock
#C20421907
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹271.64 | ₹271.64 |
| 10+ | ₹226.37 | ₹2,263.70 |
| 30+ | ₹198.07 | ₹5,942.10 |
| 100+ | ₹169.12 | ₹16,912.00 |
| 500+ | ₹156.06 | ₹78,030.00 |
| 1,000+ | ₹150.19 | ₹1,50,190.00 |
1 × ₹271.64
₹271.64
excl. GST
₹320.54 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
GM45002ARZ-R7
₹271.64 for 1 + GST
Specifications
- Output Current
- 220mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 6uV
- Slew Rate
- 11V/us
- Input Offset Current(Ios)
- 5pA
- Operating Temperature
- -40℃~+125℃
- Ib - Input Bias Current
- 0.5pA
- Common Mode Rejection Ratio(CMRR)
- 107dB
- Input Offset Voltage Drift(Vos TC)
- 400nV/℃
- Gain Bandwidth Product
- 28MHz
- Quiescent Current
- 6mA
- Features
- Reverse-phase input protection
- Input Voltage Noise Density
- 2.7nV/√Hz@10kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.7V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.151 g
