GONGMOSEMIDatasheet (PDF)

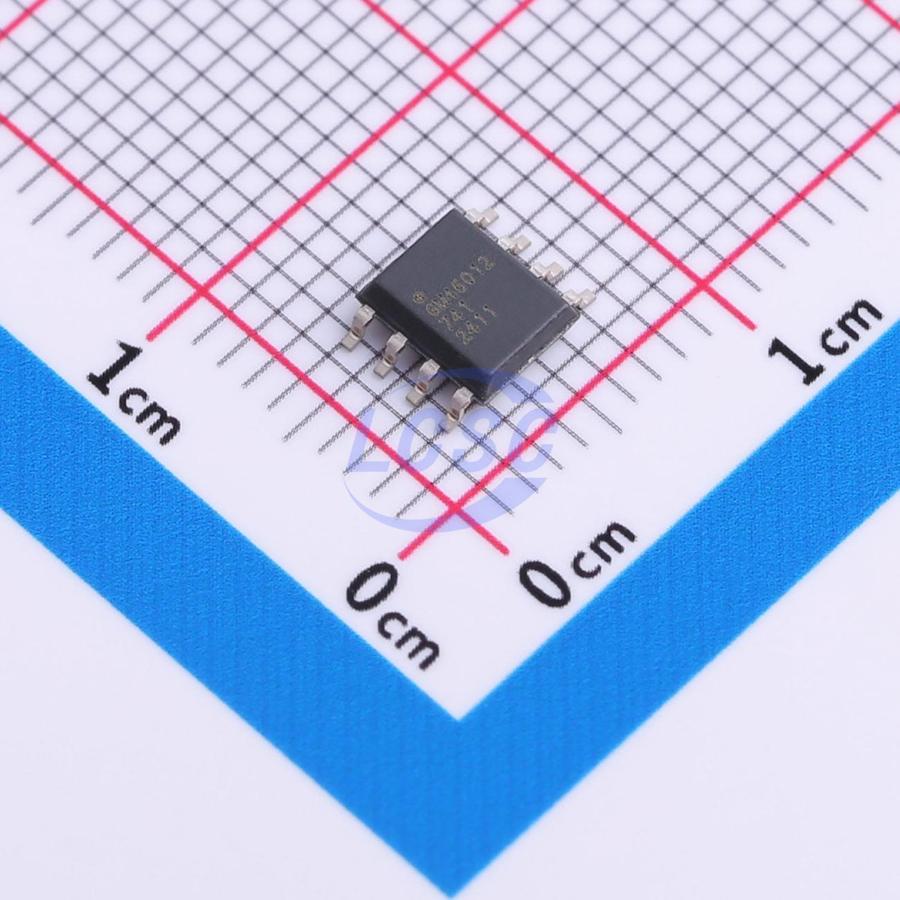

GM45012ARZ-R7
100mA 2 200uV 4.7V/us 0.5pA 101dB 670uA 10MHz Rail-to-Rail Input, Rail-to-Rail Output SO-8 Instrumentation, Op Amps, Buffer Amps
SO-8RoHSActive
5V precision CMOS operational amplifier
- Manufacturer
- GONGMOSEMI
- Manufacturer part #
- GM45012ARZ-R7
- Store part #
- C41383636
- Package / case
- SO-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,165 in stock
#C41383636
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹225.08 | ₹225.08 |
| 10+ | ₹186.87 | ₹1,868.70 |
| 30+ | ₹166.04 | ₹4,981.20 |
| 100+ | ₹142.38 | ₹14,238.00 |
| 500+ | ₹131.97 | ₹65,985.00 |
| 1,000+ | ₹127.19 | ₹1,27,190.00 |
1 × ₹225.08
₹225.08
excl. GST
₹265.59 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
GM45012ARZ-R7
₹225.08 for 1 + GST
Specifications
- Output Current
- 100mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 200uV
- Slew Rate
- 4.7V/us
- Input Offset Current(Ios)
- 250pA
- Operating Temperature
- -40℃~+125℃
- Ib - Input Bias Current
- 0.5pA
- Common Mode Rejection Ratio(CMRR)
- 101dB
- Input Offset Voltage Drift(Vos TC)
- 600nV/℃
- Quiescent Current
- 670uA
- Gain Bandwidth Product
- 10MHz
- Features
- Overvoltage protection;Reverse-phase input protection
- Input Voltage Noise Density
- 2.7nV/√Hz@1kHz
- Dual Supply
- -2.75V~-1.35V;1.35V~2.75V
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.7V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.175 g
