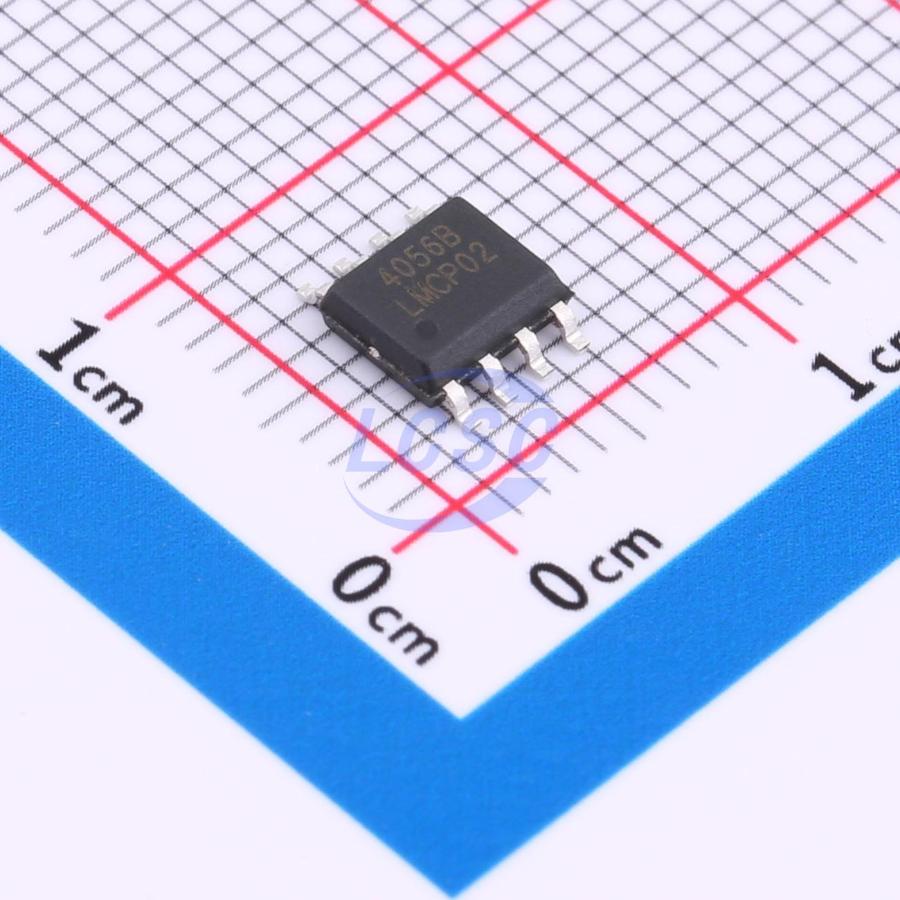

GN4056
Battery Charging IC Lithium Battery ESOP-8
GN4056 Single-cell Lithium-ion Battery Constant Current/Constant Voltage Linear Charger
- Manufacturer
- GN Semic
- Manufacturer part #
- GN4056
- Store part #
- C7502485
- Package / case
- ESOP-8
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,640 in stock
#C7502485
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.36 | ₹73.60 |
| 100+ | ₹6.05 | ₹605.00 |
| 300+ | ₹5.40 | ₹1,620.00 |
| 1,000+ | ₹4.91 | ₹4,910.00 |
| 5,000+ | ₹4.52 | ₹22,600.00 |
| 10,000+ | ₹4.33 | ₹43,300.00 |
10 × ₹7.36
₹73.60
excl. GST
₹86.85 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
GN4056
₹73.60 for 10 + GST
Specifications
- Operating Temperature
- -20℃~+85℃
- Quiescent Current
- 55uA
- Type of Battery
- Lithium Battery
- Operating Voltage
- 4.5V~6V
- Features
- Constant current charging;Constant voltage charging;Trickle charging;Automatic recharge;Charge termination;Programmable charging current;Soft-start;Under-voltage lockout
- The Chip Type
- Charging IC
- Charge Current - Max
- 1A
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.199 g
Overview
GN4056 is a complete single-cell lithium-ion battery charger using constant-current/constant-voltage linear charging. Its SOP8 package with an exposed heatsink pad on the bottom, combined with minimal external components, makes the GN4056 an ideal choice for portable applications. The GN4056 is compatible with both USB power sources and adapter power sources. The internal PMOSFET architecture, along with reverse charge protection circuitry, eliminates the need for an external isolation diode. Thermal feedback automatically adjusts the charge current to limit die temperature during high-power operation or elevated ambient temperature conditions. The charge voltage is fixed at 4.2V, while the charge current can be externally set via a single resistor. When the charge current drops to a preset threshold after reaching the final float voltage, the GN4056 automatically terminates the charge cycle. When the input voltage (AC adapter or USB power) is removed, the GN4056 automatically enters a low-current, low-power state, reducing battery leakage current to below 2uA. The GN4056 can also be placed into shutdown mode when power is present, reducing supply current to 60uA. Additional features of the GN4056 include battery temperature monitoring, undervoltage lockout, automatic recharge, and two LED status pins for indicating charge status and charge termination.
Applications
- Mobile phones, PDAs
- MP3, MP4 players
- Digital cameras
- Electronic dictionaries
- GPS
- Portable devices, various chargers
Key features
- Programmable charge current up to 1000mA
- No MOSFET, sense resistor, or blocking diode required
- Complete linear charger for single-cell Li-Ion batteries in SOP package
- Constant current/constant voltage operation with thermal regulation for maximum charge rate without risk of overheating
- 4.2V preset charge voltage with ±1.5% accuracy
- Charge current monitor output for battery fuel gauging
- Automatic recharge
- Dual charge status outputs, battery absence and fault condition indication
- C/7~C/10 charge termination
- Supply current in standby mode: 55uA
- ~2.8V trickle charge device version
- Soft-start to limit inrush current
- Battery temperature monitoring
- 8-pin SOP package with bottom heat slug (heat slug connected to GND)
