GN Semic

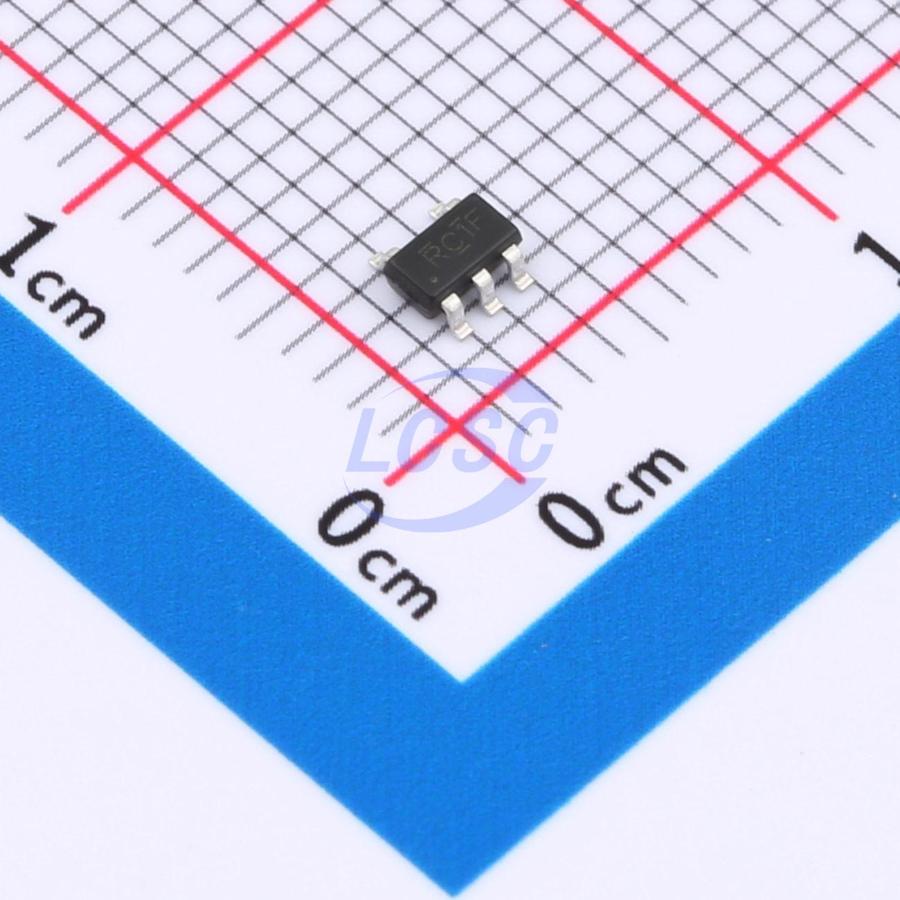

GNV321A

Standard (General Purpose) Amplifier 1 Circuit Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5

SOT-23-5RoHSActive

Rail-to-rail input/output low-power operational amplifier

Manufacturer: GN Semic
Manufacturer part #: GNV321A
Store part #: C22461433
Package / case: SOT-23-5
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,605 in stock

#C22461433

Stock & price checked 17 h ago

Quantity	Unit price	Pack price
5+	₹10.81	₹54.05
50+	₹8.55	₹427.50
150+	₹7.41	₹1,111.50
500+	₹6.56	₹3,280.00
3,000+	₹5.89	₹17,670.00
6,000+	₹5.54	₹33,240.00

Quantity (min 5, multiples of 5)

5 × ₹10.81

₹54.05

excl. GST

₹63.78 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

GNV321A

₹54.05 for 5 + GST

Specifications

Output Current: 30mA
Number of Channels: 1
Vos - Input Offset Voltage: 800uV
Slew Rate: 500V/ms
Input Offset Current(Ios): 10pA
Operating Temperature: -40℃~+85℃
Ib - Input Bias Current: 10pA
Common Mode Rejection Ratio(CMRR): 89dB
Input Offset Voltage Drift(Vos TC): 2.7uV/℃
Quiescent Current: 45uA
Gain Bandwidth Product: 1.1MHz
Features: Built-in compensation
Input Voltage Noise Density: 27nV/√Hz@1kHz
Dual Supply: -2.75V~-1.05V;1.05V~2.75V
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 2.1V~5.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.057 g

Overview

GNV321/358/324A is a rail-to-rail input, voltage feedback output, low-power operational amplifier. It features a wide input common-mode voltage range and output swing; minimum operating voltage down to 2.1V, with a recommended maximum operating voltage of 5.5V. Suitable for use as a power amplifier in various compact or portable stereo radio-cassette recorders. GNV321/358/324A delivers a 1.1MHz gain-bandwidth product at approximately 45µA quiescent current per amplifier channel. With ultra-low input bias current (approximately 10pA level), it is suitable for transimpedance, photodiode amplifier, and piezoelectric sensor applications. Rail-to-rail input and output buffering is also used in specific IC designs for single-supply systems. Applications for this amplifier series include security monitoring, portable devices, battery and power supply control, and signal processing and interfacing in low-power sensor systems.
