HaloChipDatasheet (PDF)

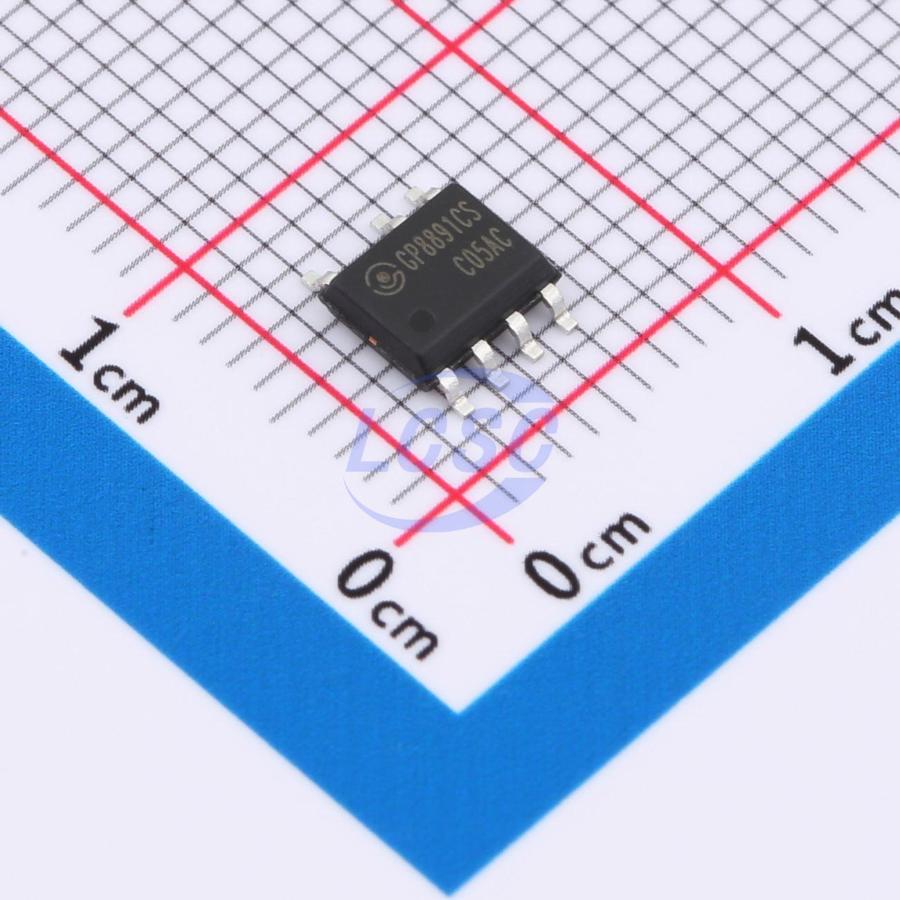

GP8891CS
Converter Offline 70kHz SOP-7
SOP-7ROHS CompliantActive
GP8891XS: Self-powered primary-side feedback control chip, supporting constant voltage and constant current output and multiple protections
- Manufacturer
- HaloChip
- Manufacturer part #
- GP8891CS
- Store part #
- C22434959
- Package / case
- SOP-7
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,430 in stock
#C22434959
Stock & price checked 27 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.20 | ₹82.00 |
| 100+ | ₹6.32 | ₹632.00 |
| 300+ | ₹5.38 | ₹1,614.00 |
| 1,000+ | ₹4.68 | ₹4,680.00 |
| 4,000+ | ₹4.51 | ₹18,040.00 |
| 8,000+ | ₹4.23 | ₹33,840.00 |
10 × ₹8.20
₹82.00
excl. GST
₹96.76 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
GP8891CS
₹82.00 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+150℃
- Output Current
- 320mA
- Frequency - Switching
- 70kHz
- Voltage - Supply
- 4.2V
- Voltage - Breakdown
- 850V
- Topology
- Flyback
- Features
- Cable compensation;Leading edge blanking;Under-voltage lockout;Over Voltage Protection;Short Circuit Protection;Under Voltage Protection;Overtemperature protection (OTP)
- Output Voltage
- 5V
- Duty Cycle(Max)
- 55%
- Working Mode
- DCM
- Feedback System
- Primary-side feedback
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.383 g
Overview
GP8891XS is a self-powered constant voltage/constant current primary-side feedback control IC, suitable for chargers and adapters. Proprietary output line loss compensation technology effectively compensates for the voltage drop caused by output current losses in the output cable. Built-in startup circuit eliminates external startup resistors; integrated FB pull-down resistor and CS sampling resistor simplify the peripheral design. Built-in loop compensation circuit eliminates external compensation components, ensuring excellent system stability. Achieves superior CV/CC characteristics, meeting standby power consumption below 75mW. Multiple protection features including open-circuit protection, OVP, output short-circuit protection, and secondary Schottky short-circuit protection. Unique single-cycle peak current shutdown mechanism prevents various failures caused by transistor overcurrent. SOP7 package.
Applications
- Adapters and chargers for mobile phones, cordless phones, PDAs, MP3 players, and other portable devices
- LED driver power supplies
- Drop-in replacement for linear and RCC switching power supplies
- Other auxiliary power supplies
Key features
- Self-powered primary-side feedback control
- High constant voltage and constant current accuracy
- ≤75mW standby power consumption
- Adjustable output line loss compensation
- Open-circuit, short-circuit, overvoltage, and undervoltage protection
- Over-temperature protection
- Compatible with dual-winding and tri-winding configurations
