Gainsil

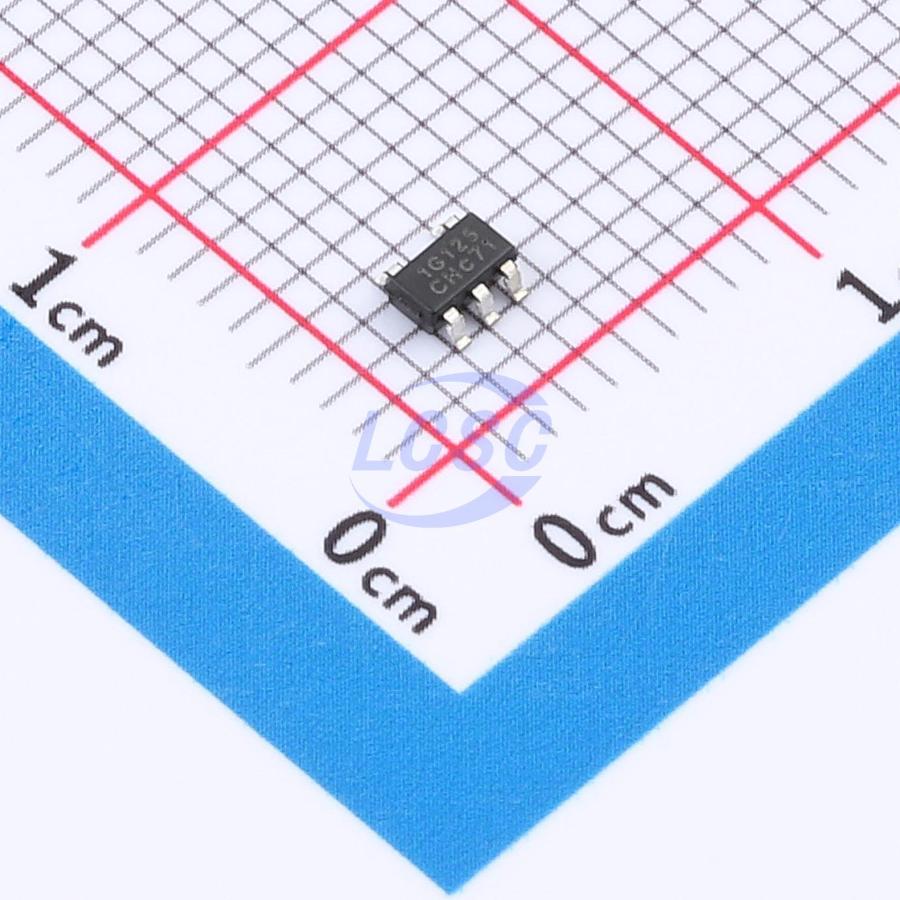

GS1G125-TR

1.65V~5.5V 1 1 2.6ns@5V,15pF SOT-23-5 Buffers, Drivers, Receivers, Transceivers

SOT-23-5RoHSActive

Manufacturer: Gainsil
Manufacturer part #: GS1G125-TR
Store part #: C49326109
Package / case: SOT-23-5
Category: Buffers, Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,950 in stock

#C49326109

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹57.48	₹57.48
10+	₹45.38	₹453.80
30+	₹40.42	₹1,212.60
100+	₹33.93	₹3,393.00
500+	₹31.12	₹15,560.00
1,000+	₹29.40	₹29,400.00

Quantity (min 1)

1 × ₹57.48

₹57.48

excl. GST

₹67.83 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

GS1G125-TR

₹57.48 for 1 + GST

Specifications

Voltage - Supply: 1.65V~5.5V
Output Type: Tri-State
Operating Temperature: -40℃~+125℃
Quiescent Supply Current: 10uA
Function: Power-off isolation;Output enable
Current - Output High(IOH): 24mA
Current - Output Low(IOL): 24mA
Number of Bits per Element: 1
Channel Type: Unidirectional
Number of Elements: 1
Propagation Delay: 2.6ns@5V,15pF

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.051 g

Overview

This single buffer is designed for VCC operation from 1.65V to 5.5V. The GS1G125 is a single line driver with 3-state outputs. When the output enable (OE̅) input is high, the outputs are disabled. The device is fully specified for partial-power-down applications using Ioff. The Ioff circuit disables the outputs, preventing damaging current backflow when the device is powered down. To ensure a high-impedance state during power-up or power-down, OE̅ should be connected to VCC through a pullup resistor whose minimum value is determined by the current-sinking capability of the driver. The GS1G125 is offered in green SOT23-5 and SC70-5 packages. The operating ambient temperature range is -40°C to +125°C.
