GainsilDatasheet (PDF)

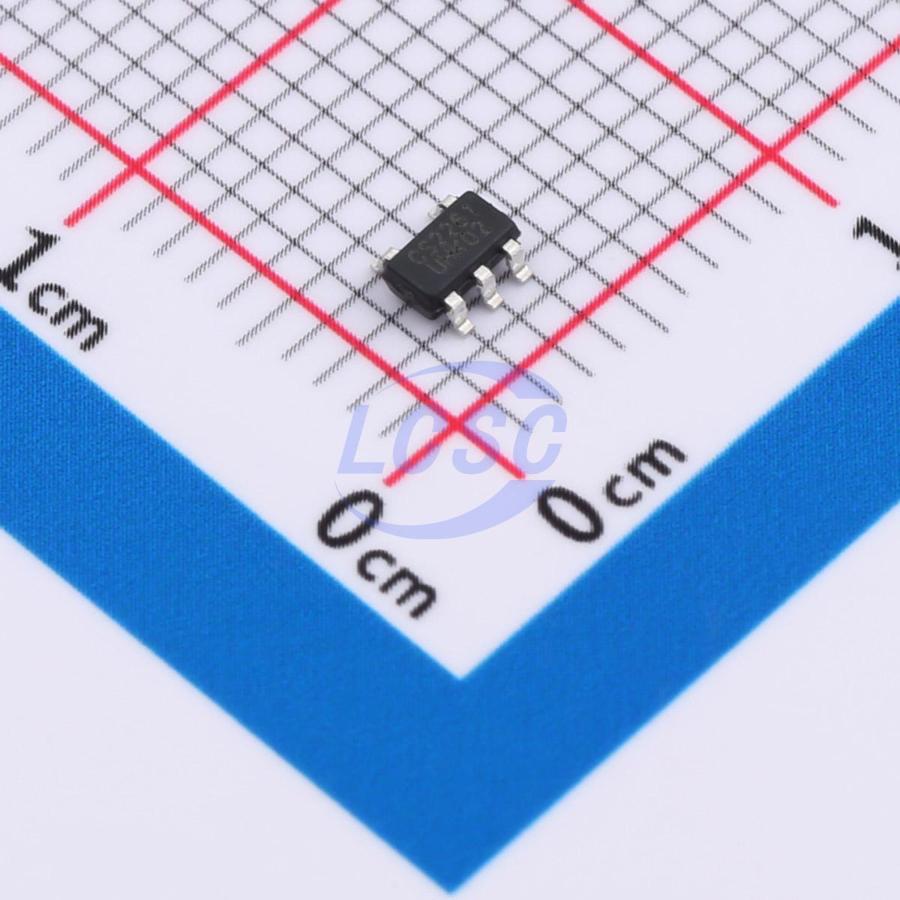

GS2261-TR
39mA 1 100uV 23V/us 120dB 100pA 2.7mA 11MHz Rail-to-rail output SOT23-5 Instrumentation, Op Amps, Buffer Amps
SOT23-5RoHSActive
Op Amps
- Manufacturer
- Gainsil
- Manufacturer part #
- GS2261-TR
- Store part #
- C6283803
- Package / case
- SOT23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,434 in stock
#C6283803
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹53.37 | ₹53.37 |
| 10+ | ₹42.10 | ₹421.00 |
| 30+ | ₹37.32 | ₹1,119.60 |
| 100+ | ₹31.25 | ₹3,125.00 |
| 500+ | ₹28.64 | ₹14,320.00 |
| 1,000+ | ₹26.91 | ₹26,910.00 |
1 × ₹53.37
₹53.37
excl. GST
₹62.98 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
GS2261-TR
₹53.37 for 1 + GST
Specifications
- Output Current
- 39mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 100uV
- Slew Rate
- 23V/us
- Input Offset Current(Ios)
- 25pA
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 120dB
- Ib - Input Bias Current
- 100pA
- Input Offset Voltage Drift(Vos TC)
- 2uV/℃
- Quiescent Current
- 2.7mA
- Gain Bandwidth Product
- 11MHz
- Input Voltage Noise Density
- 34nV/√Hz@1kHz
- Rail to Rail
- Rail-to-rail output
- Single Supply
- 3.3V~36V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.049 g
Overview
The GS226X series amplifiers are newest high supply voltage amplifiers with low offset, low power and stable high frequency response. Good AC performance with 11MHz bandwidth, 23V/μs slew rate and low distortion while drawing only 2.7mA of quiescent current per amplifier. The input common - mode voltage range extends to VS, and the outputs swing rail - to - rail. The GS226X family can be used as plug - in replacements for many commercially available Op - Amps to reduce power and improve input/output range and performance.
Applications
- Instrumentation
- Motor Control
- Active Filters
- ASIC Input or Output Amplifier
- Industrial Control
- Sensor Interface
Key features
- Supply Voltage: 3.3V to 36V
- Offset Voltage: ±100μV
- Maximum Differential Input Voltage Range to Supply Rail, can Work as Comparator
- Input Rail to -VS, Rail to Rail Output
- Bandwidth: 11MHz
- Slew Rate: 23V/μs
- Excellent EMI Suppress Performance: 45dB at Quiescent Current: 2.7mA per Amplifier (Typ)
- -40°C to 125°C Operation Temperature Range
- Small Package: GS2261 Available in SOT23 - 5 Package, GS2262 Available in SOP - 8 and MSOP - 8 Packages, GS2264 Available in SOP - 14 and TSSOP - 14 Packages
