GainsilDatasheet (PDF)

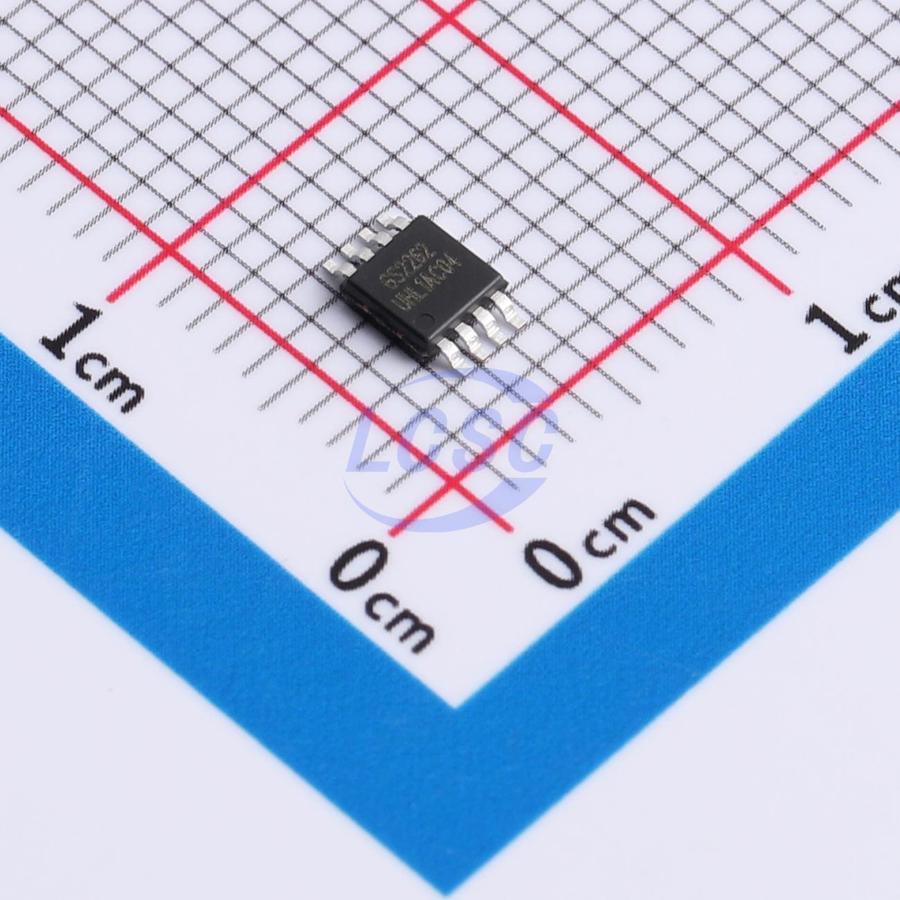

GS2262-MR
39mA 2 1.4uV 23V/us 100pA 120dB 2.7mA 11MHz Rail-to-rail output MSOP-8 Instrumentation, Op Amps, Buffer Amps
MSOP-8RoHSActive
- Manufacturer
- Gainsil
- Manufacturer part #
- GS2262-MR
- Store part #
- C49326081
- Package / case
- MSOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,360 in stock
#C49326081
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹74.34 | ₹74.34 |
| 10+ | ₹60.29 | ₹602.90 |
| 30+ | ₹53.16 | ₹1,594.80 |
| 100+ | ₹46.03 | ₹4,603.00 |
| 500+ | ₹41.93 | ₹20,965.00 |
| 1,000+ | ₹39.77 | ₹39,770.00 |
1 × ₹74.34
₹74.34
excl. GST
₹87.72 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
GS2262-MR
₹74.34 for 1 + GST
Specifications
- Output Current
- 39mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 1.4uV
- Slew Rate
- 23V/us
- Input Offset Current(Ios)
- 25pA
- Operating Temperature
- -40℃~+125℃
- Ib - Input Bias Current
- 100pA
- Common Mode Rejection Ratio(CMRR)
- 120dB
- Input Offset Voltage Drift(Vos TC)
- 2uV/℃
- Quiescent Current
- 2.7mA
- Gain Bandwidth Product
- 11MHz
- Input Voltage Noise Density
- 34nV/√Hz@1kHz
- Rail to Rail
- Rail-to-rail output
- Single Supply
- 3.3V~36V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.172 g
Overview
The GS226X series amplifiers are the latest high-supply-voltage amplifiers featuring low offset, low power consumption, and stable high-frequency response. They deliver excellent AC performance with 11MHz bandwidth, 23V/μs slew rate, and low distortion, while each amplifier draws only 2.7mA quiescent current. The input common-mode voltage range extends to -Vs, with rail-to-rail output swing. The GS226X series serves as a drop-in replacement for many commercial op-amps to reduce power consumption and improve input/output range and performance. The GS2261 single-channel version is available in a SOT23-5 package. The GS2262 dual-channel version comes in green SOP-8 and MSOP-8 packages. The GS2264 quad-channel version is offered in green SOP-14 and TSSOP-14 packages.
Applications
- Instrumentation
- Active filters
- ASIC input/output amplifiers
- Sensor interfaces
- Motor control
- Industrial control
Key features
- Supply voltage: 3.3V to 36V
- Offset voltage: ±100μV maximum
- Differential input voltage range up to supply rails, usable as comparator
- Input rail-to -Vs, rail-to-rail output
- Bandwidth: 11MHz
- Slew rate: 23V/μs
- Excellent EMI rejection: 45dB at 1GHz
- Quiescent current: 2.7mA per amplifier (typical)
- Operating temperature range: 40℃ to 125℃
- Small packages: GS2261 in SOT23-5; GS2262 in SOP-8 and MSOP-8; GS2264 in SOP-14 and TSSOP-14
