GainsilDatasheet (PDF)

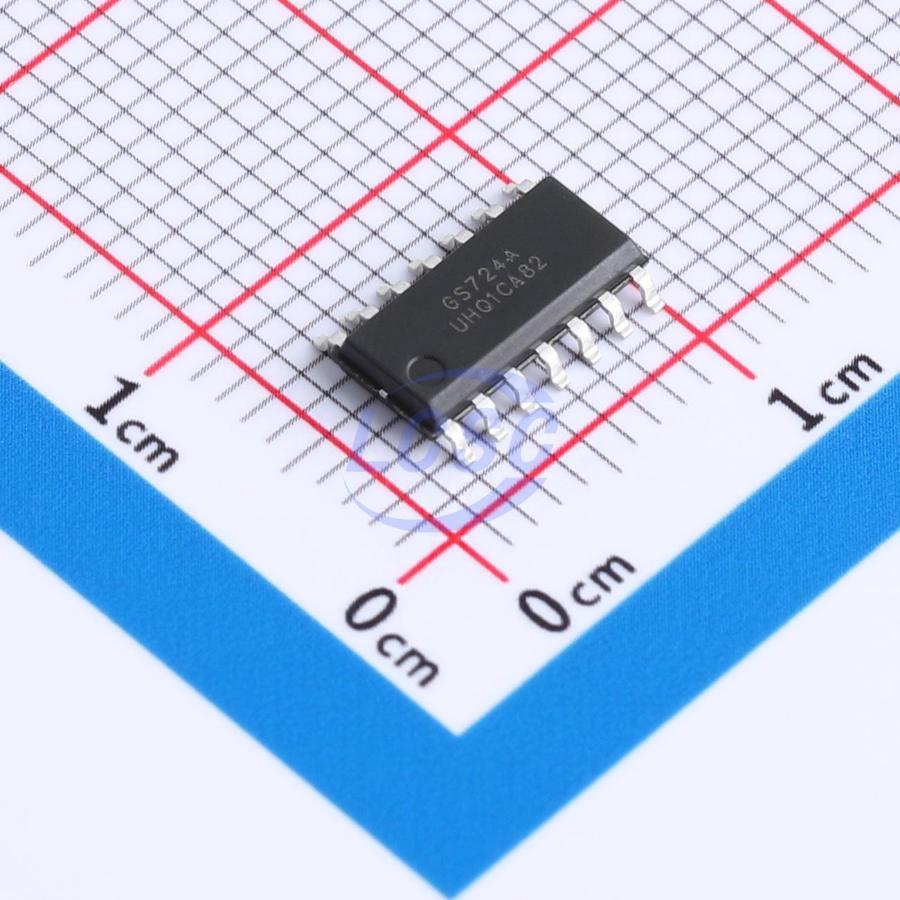

GS724A-SR
150mA 4 100uV 8.3V/us 1pA 82dB 11MHz 1.2mA Rail-to-Rail Input, Rail-to-Rail Output SOP-14 Instrumentation, Op Amps, Buffer Amps
SOP-14RoHSActive
- Manufacturer
- Gainsil
- Manufacturer part #
- GS724A-SR
- Store part #
- C49326107
- Package / case
- SOP-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,477 in stock
#C49326107
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹101.78 | ₹101.78 |
| 10+ | ₹82.33 | ₹823.30 |
| 30+ | ₹72.83 | ₹2,184.90 |
| 100+ | ₹63.11 | ₹6,311.00 |
| 500+ | ₹57.27 | ₹28,635.00 |
| 1,000+ | ₹54.45 | ₹54,450.00 |
1 × ₹101.78
₹101.78
excl. GST
₹120.10 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
GS724A-SR
₹101.78 for 1 + GST
Specifications
- Output Current
- 150mA
- Number of Channels
- 4
- Vos - Input Offset Voltage
- 100uV
- Slew Rate
- 8.3V/us
- Input Offset Current(Ios)
- 1pA
- Operating Temperature
- -40℃~+125℃
- Ib - Input Bias Current
- 1pA
- Common Mode Rejection Ratio(CMRR)
- 82dB
- Input Offset Voltage Drift(Vos TC)
- 2.4uV/℃
- Gain Bandwidth Product
- 11MHz
- Quiescent Current
- 1.2mA
- Features
- Built-in compensation
- Input Voltage Noise Density
- 13nV/√Hz@1kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Dual Supply
- -2.75V~-1.05V;1.05V~2.75V
- Single Supply
- 2.1V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.307 g
Overview
The GS72XA series operational amplifiers feature an 11MHz gain bandwidth product, 8.3 V/μs slew rate, and 1.2mA quiescent current per amplifier at 5V supply. Designed to deliver performance in low-voltage, low-noise systems, these devices can drive heavy loads while achieving rail-to-rail output swing. The input common-mode voltage range includes ground, and the maximum input offset voltage of the GS72XA is 1mV. The series operates over an industrial temperature range of -40°C to +125°C and a supply voltage range of 2.1V to 5.5V. The GS721A single-channel amplifier is available in a green SOT23-5 package. The GS722A dual-channel amplifier is available in green SOP-8 and MSOP-8 packages. The GS724A quad-channel amplifier is available in green SOP-14 and TSSOP-14 packages.
Applications
- Sensors
- Active filters
- Mobile and cordless phones
- Handheld test equipment
- Battery-powered instruments
Key features
- Single-supply operating voltage range: +2.1V ~ +5.5V
- Rail-to-rail input/output
- Gain bandwidth product: 11MHz (typical)
- Low input bias current: 1pA (typical)
- Low offset voltage: 0.5mV (maximum)
- High slew rate: 8.3 V/μs
- Settling time to 0.1% accuracy with 2V step signal: 0.3µs
- Low noise: 8.7 nV/√Hz @ 10kHz
- Quiescent current: 1.2mA per amplifier channel (typical)
- Operating temperature range: -40°C ~ +125°C
- GS721A available in SOT23-5 package
- GS722A available in SOP-8 and MSOP-8 packages
- GS724A available in SOP-14 and TSSOP-14 packages
