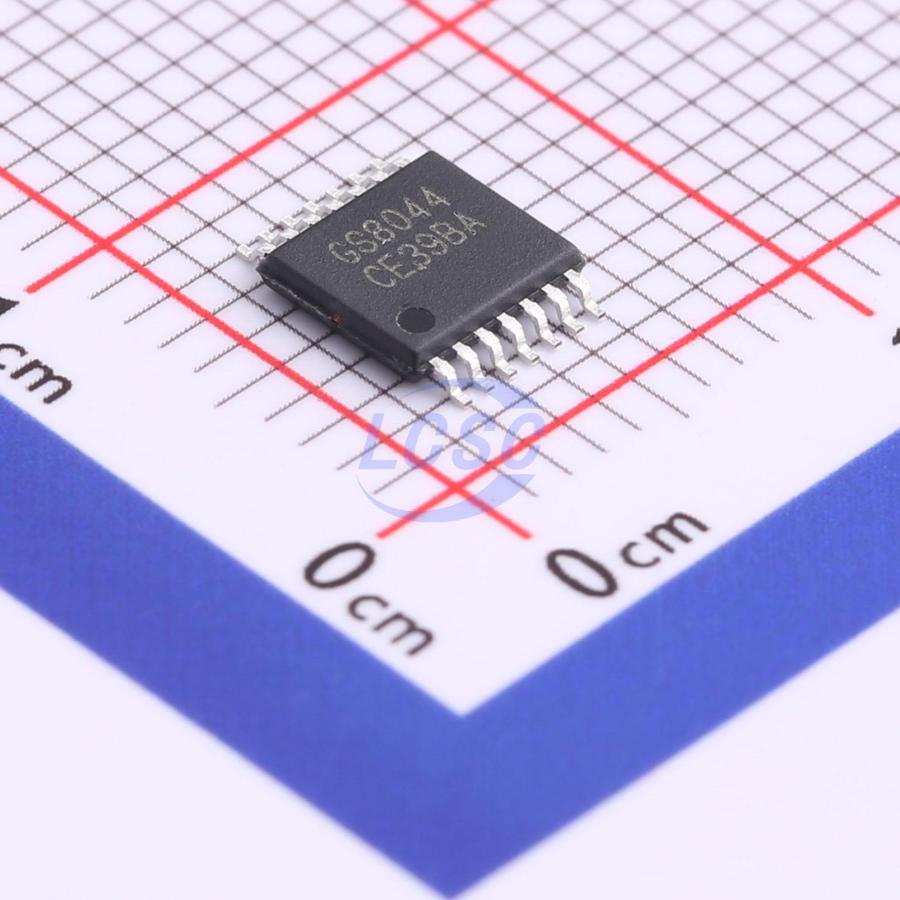

GS8044-TR

20mA 4 3mV 6V/ms 1pA 84dB 14.5kHz 600nA Rail-to-Rail Input, Rail-to-Rail Output TSSOP-14 Instrumentation, Op Amps, Buffer Amps

TSSOP-14RoHSActive

Single-Supply Rail-to-Rail Input/Output Amplifier

Manufacturer: Gainsil
Manufacturer part #: GS8044-TR
Store part #: C605429
Package / case: TSSOP-14
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,546 in stock

#C605429

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹64.40	₹64.40
10+	₹50.79	₹507.90
30+	₹44.96	₹1,348.80
100+	₹37.60	₹3,760.00
500+	₹34.36	₹17,180.00
1,000+	₹32.41	₹32,410.00

Quantity (min 1)

1 × ₹64.40

₹64.40

excl. GST

₹75.99 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

GS8044-TR

₹64.40 for 1 + GST

Specifications

Output Current: 20mA
Number of Channels: 4
Vos - Input Offset Voltage: 3mV
Slew Rate: 6V/ms
Operating Temperature: -40℃~+125℃
Ib - Input Bias Current: 1pA
Common Mode Rejection Ratio(CMRR): 84dB
Input Offset Voltage Drift(Vos TC): 2.5uV/℃
Gain Bandwidth Product: 14.5kHz
Quiescent Current: 600nA
Features: EMI filtering/RF suppression
Dual Supply: -700mV~2.75V
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 1.4V~5.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.166 g

Overview

The GS804X family has a high gain-bandwidth product of 14.5 KHz, a slew rate of 6V/ms, and a quiescent current of 600nA/amplifier at 5V. The GS804X family is designed to provide optimal performance in low voltage and low noise systems. They provide rail-to-rail output swing into heavy loads. The input common mode voltage range includes ground, and the maximum input offset voltage is 3 mV for GS804X family. They are specified over the extended industrial temperature range ( -40 °C to +125 °C). The operating range is from 1.4V to 5.5V. The GS8041 single is available in Green SC70-5 and SOT23-5 packages. The GS8041Y single is available in Green SC70-5 and SOT23-5 packages. The GS8042 Dual is available in Green SOP-8 and MSOP-8 packages. The GS8043 single is available in Green SC70-6 and SOT23-6 packages. The GS8044 Quad is available in Green SOP-14 and TSSOP-14 packages.

Applications

ASIC Input or Output Amplifier
Sensor Interface
Medical Communication
Smoke Detectors
Audio Output
Piezoelectric Transducer Amplifier
Medical Instrumentation
Portable Systems

Key features

Single-Supply Operation from +1.4V ~ +5.5V
Rail-to-Rail Input / Output
Gain-Bandwidth Product: 14.5KHz (Typ)
Low Input Bias Current: 1pA (Typ)
Low Offset Voltage: 3mV (Max)
Quiescent Current: 600nA per Amplifier (Typ)
Chip Select with GS8043NH( active High ) and GS8043NL(active Low )
Operating Temperature: -40°C ~ +125°C
Embedded RF Anti-EMI Filter
Small Package: GS8041 Available in SOT23-5 and SC70-5 Packages
GS8041Y Available in SOT23-5 and SC70-5 Packages
GS8042 Available in SOP-8 and MSOP-8 Packages
GS8043NH Available in SOT23-6 and SC70-6 Packages
GS8043NL Available in SOT23-6 and SC70-6 Packages
GS8044 Available in SOP-14 and TSSOP-14 Packages
