Gainsil

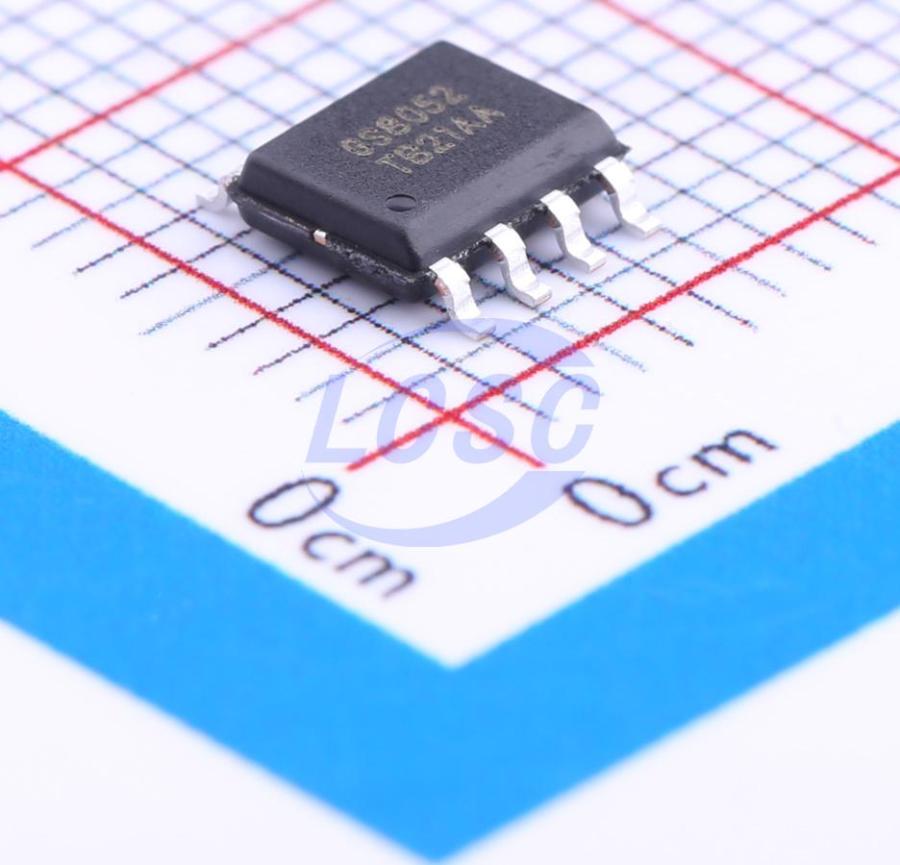

GS8052-SR

80mA 2 2mV 88V/us 80dB 1pA 2.8mA 150MHz Rail-to-rail output SOP-8 Instrumentation, Op Amps, Buffer Amps

SOP-8RoHSActive

250MHz CMoS Rail-to-Rail Output Opamps

Manufacturer: Gainsil
Manufacturer part #: GS8052-SR
Store part #: C157722
Package / case: SOP-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

21,821 in stock

#C157722

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹60.34	₹60.34
10+	₹47.70	₹477.00
30+	₹42.46	₹1,273.80
100+	₹35.60	₹3,560.00
500+	₹29.27	₹14,635.00
1,000+	₹27.47	₹27,470.00

Quantity (min 1)

1 × ₹60.34

₹60.34

excl. GST

₹71.20 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

GS8052-SR

₹60.34 for 1 + GST

Specifications

Output Current: 80mA
Number of Channels: 2
Vos - Input Offset Voltage: 2mV
Slew Rate: 88V/us
Input Offset Current(Ios): 2pA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 80dB
Ib - Input Bias Current: 1pA
Input Offset Voltage Drift(Vos TC): 2uV/℃
Quiescent Current: 2.8mA
Gain Bandwidth Product: 150MHz
Features: Enable/shutdown function
Input Voltage Noise Density: 4.9nV/√Hz@1MHz
Dual Supply: -2.75V~-1.25V;1.25V~2.75V
Rail to Rail: Rail-to-rail output
Single Supply: 2.5V~5.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.192 g

Overview

The GS8051/1N(single), GS8052/2N(dual), GS8054(quad) are rail-to-rail output voltage feedback amplifiers offering ease of use and low cost. They have bandwidth and slew rate typically found in current feedback amplifiers. All have a wide input common-mode voltage range and output voltage swing, making them easy to use on single supplies as low as 2.5V. Despite being low cost, the GS805X series provide excellent overall performance. They offer wide bandwidth to 250MHz (G=+1) along with 0.1dB flatness out to 52MHz (G=+2) and offer a typical low power of 2.8mA amplifier. The GS805X series is low distortion and fast settling make it ideal for buffering high speed A/D or D/A converters. The GS8051/2N has a power-down disable feature that reduces the supply current to 50μA. These features make the GS8051/2N ideal for portable and battery-powered applications where size and power are critical. All are specified over the extended -40°C to +125°C temperature range.
