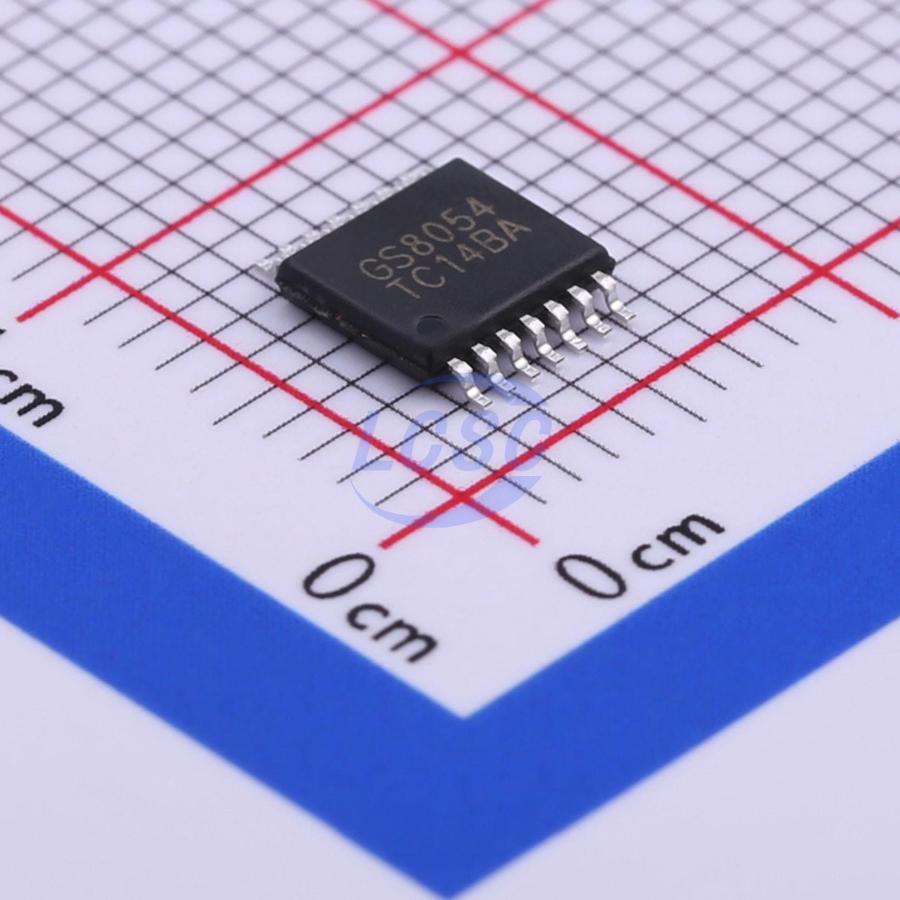

Gainsil

GS8054-TR

80mA 4 9.8mV 88V/us 1pA 62dB 2.8mA 250MHz Rail-to-rail output TSSOP-14 Instrumentation, Op Amps, Buffer Amps

TSSOP-14RoHSActive

250MHz CMoS Rail-to-Rail Output Opamps

Manufacturer: Gainsil
Manufacturer part #: GS8054-TR
Store part #: C431327
Package / case: TSSOP-14
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,637 in stock

#C431327

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹95.61	₹95.61
10+	₹77.58	₹775.80
30+	₹68.68	₹2,060.40
100+	₹59.76	₹5,976.00
500+	₹50.63	₹25,315.00
1,000+	₹47.81	₹47,810.00

Quantity (min 1)

1 × ₹95.61

₹95.61

excl. GST

₹112.82 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

GS8054-TR

₹95.61 for 1 + GST

Specifications

Output Current: 80mA
Number of Channels: 4
Vos - Input Offset Voltage: 9.8mV
Slew Rate: 88V/us
Input Offset Current(Ios): 2pA
Operating Temperature: -40℃~+125℃
Ib - Input Bias Current: 1pA
Common Mode Rejection Ratio(CMRR): 62dB
Input Offset Voltage Drift(Vos TC): 2uV/℃
Quiescent Current: 2.8mA
Gain Bandwidth Product: 250MHz
Input Voltage Noise Density: 4.9nV/√Hz@1MHz
Dual Supply: -2.75V~-1.25V;1.25V~2.75V
Rail to Rail: Rail-to-rail output
Single Supply: 2.5V~5.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.179 g

Overview

The GS8051/1N(single), GS8052/2N(dual), GS8054(quad) are rail-to-rail output voltage feedback amplifiers offering ease of use and low cost. They have bandwidth and slew rate typically found in current feedback amplifiers. All have a wide input common-mode voltage range and output voltage swing, making them easy to use on single supplies as low as 2.5V. Despite being low cost, the GS805X series provide excellent overall performance. They offer wide bandwidth to 250MHz (G=+1) along with 0.1dB flatness out to 52MHz (G=+2) and offer a typical low power of 2.8mA amplifier. The GS805X series is low distortion and fast settling make it ideal for buffering high speed A/D or D/A converters. The GS8051/2N has a power-down disable feature that reduces the supply current to 50μA. These features make the GS8051/2N ideal for portable and battery-powered applications where size and power are critical. All are specified over the extended -40°C to +125°C temperature range.
