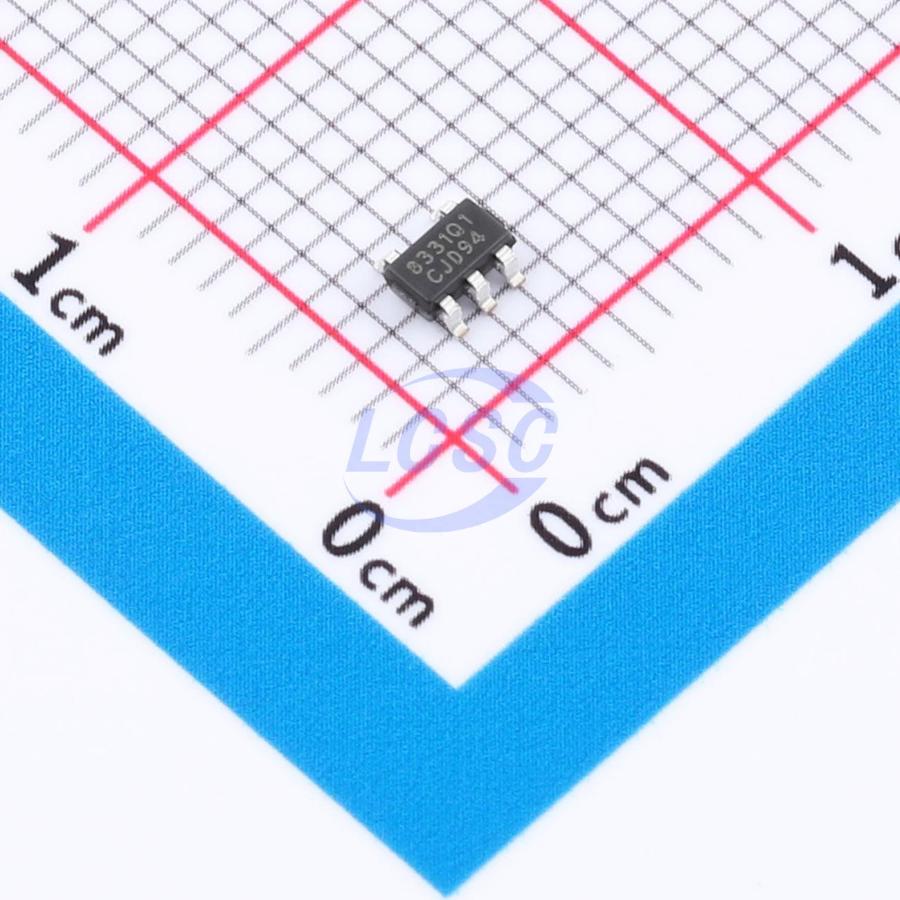

GS8331Q1-TR

30mA 1 10uV 0.2V/us 110dB 20pA 25uA 350kHz Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5 Instrumentation, Op Amps, Buffer Amps

SOT-23-5RoHSActive

Manufacturer: Gainsil
Manufacturer part #: GS8331Q1-TR
Store part #: C49326076
Package / case: SOT-23-5
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,553 in stock

#C49326076

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹94.44	₹94.44
10+	₹76.50	₹765.00
30+	₹67.42	₹2,022.60
100+	₹58.57	₹5,857.00
500+	₹53.16	₹26,580.00
1,000+	₹50.35	₹50,350.00

Quantity (min 1)

1 × ₹94.44

₹94.44

excl. GST

₹111.44 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

GS8331Q1-TR

₹94.44 for 1 + GST

Specifications

Output Current: 30mA
Number of Channels: 1
Vos - Input Offset Voltage: 10uV
Slew Rate: 0.2V/us
Input Offset Current(Ios): 10pA
Operating Temperature: -45℃~+125℃
Common Mode Rejection Ratio(CMRR): 110dB
Ib - Input Bias Current: 20pA
Input Offset Voltage Drift(Vos TC): 10nV/℃
Quiescent Current: 25uA
Gain Bandwidth Product: 350kHz
Features: EMI filtering/RF suppression;Zero drift / auto-zero
Input Voltage Noise Density: 70nV/√Hz@1kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 1.8V~5.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.051 g

Overview

The GS8331Q1 amplifier is a single/dual-supply, micropower, zero-drift CMOS op-amp offering 350kHz bandwidth, rail-to-rail input and output, and a single-supply operating range of 1.8V to 5.5V. Utilizing chopper stabilization technology, the GS8331Q1 delivers ultralow offset voltage (maximum less than 10μV) and near-zero temperature drift. With a low quiescent current of 25μA per amplifier and an ultralow input bias current of 20pA, it is ideal for low-offset, low-power, and high-impedance applications. The GS8331Q1 provides excellent CMRR without the crossover distortion associated with conventional complementary input stages. This design delivers superior performance when driving ADCs without degrading differential linearity. The GS8331Q1 is available in a SOT23-5 package. An extended temperature range of -45°C to +125°C across all supply voltages provides additional design flexibility.
