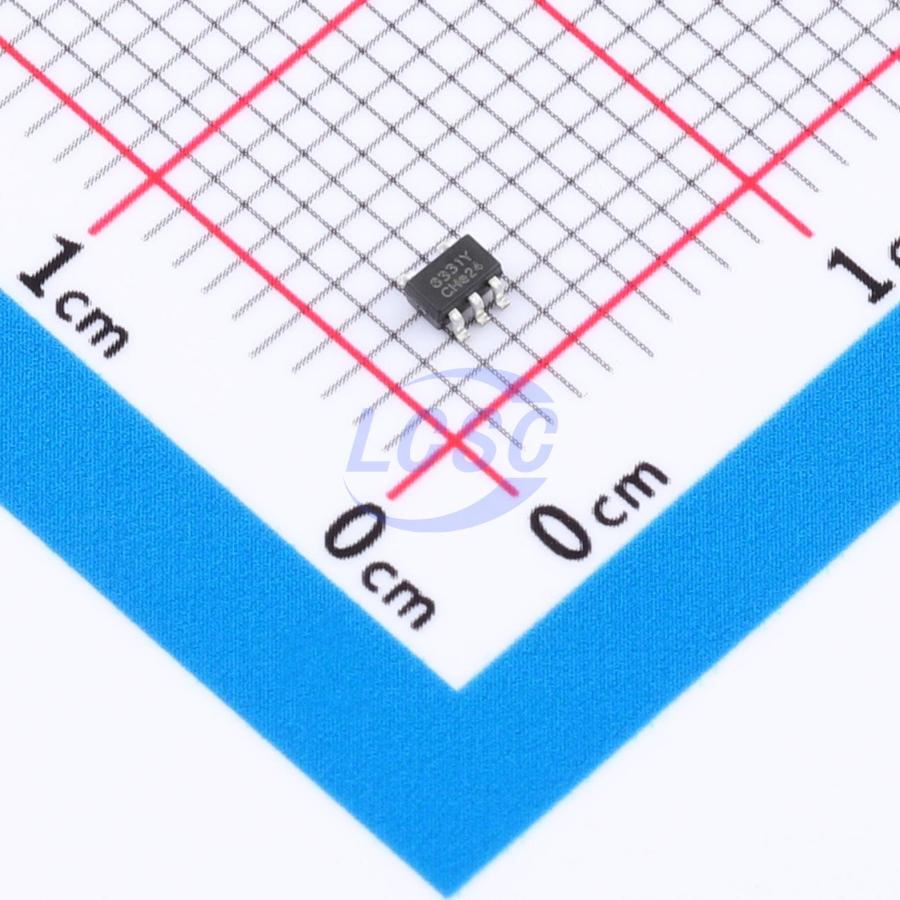

GS8331Y-CR

20mA 1 2uV 0.2V/us 110dB 20pA 25uA 350kHz Rail-to-Rail Input, Rail-to-Rail Output SC-70-5 Instrumentation, Op Amps, Buffer Amps

SC-70-5RoHSActive

Manufacturer: Gainsil
Manufacturer part #: GS8331Y-CR
Store part #: C49326089
Package / case: SC-70-5
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,564 in stock

#C49326089

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹74.55	₹74.55
10+	₹60.29	₹602.90
30+	₹53.16	₹1,594.80
100+	₹46.25	₹4,625.00
500+	₹41.93	₹20,965.00
1,000+	₹39.77	₹39,770.00

Quantity (min 1)

1 × ₹74.55

₹74.55

excl. GST

₹87.97 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

GS8331Y-CR

₹74.55 for 1 + GST

Specifications

Output Current: 20mA
Number of Channels: 1
Vos - Input Offset Voltage: 2uV
Slew Rate: 0.2V/us
Input Offset Current(Ios): 10pA
Operating Temperature: -45℃~+125℃
Common Mode Rejection Ratio(CMRR): 110dB
Ib - Input Bias Current: 20pA
Input Offset Voltage Drift(Vos TC): 10nV/℃
Quiescent Current: 25uA
Gain Bandwidth Product: 350kHz
Features: Zero drift / auto-zero;EMI filtering/RF suppression
Input Voltage Noise Density: 70nV/√Hz@1kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 1.8V~5.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.045 g

Overview

The GS833X amplifiers are single/dual/quad, micropower, zero-drift CMOS op-amps offering 350kHz bandwidth, rail-to-rail input and output, and a single-supply operating range of 1.8V to 5.5V. The GS833X employs chopper stabilization to deliver ultralow offset voltage (maximum less than 10μV) and near-zero temperature drift. The low quiescent supply current of 25μA per amplifier and ultralow input bias current of 20pA make them ideal for low-offset, low-power, and high-impedance applications. The GS833X provides excellent common-mode rejection without the crossover distortion associated with conventional complementary input stages. This design delivers superior performance when driving ADCs without degrading differential linearity. The GS8331 is available in SOT23-5 and SC70-5 packages. The GS8331Y is available in SOT23-5 and SC70-5 packages. The GS8332 is available in SOP-8 and MSOP-8 packages. The GS8334 quad amplifier is available in SOP-14 and TSSOP-14 packages. The extended operating temperature range of -45℃ to +125℃ across all supply voltages provides additional design flexibility.
