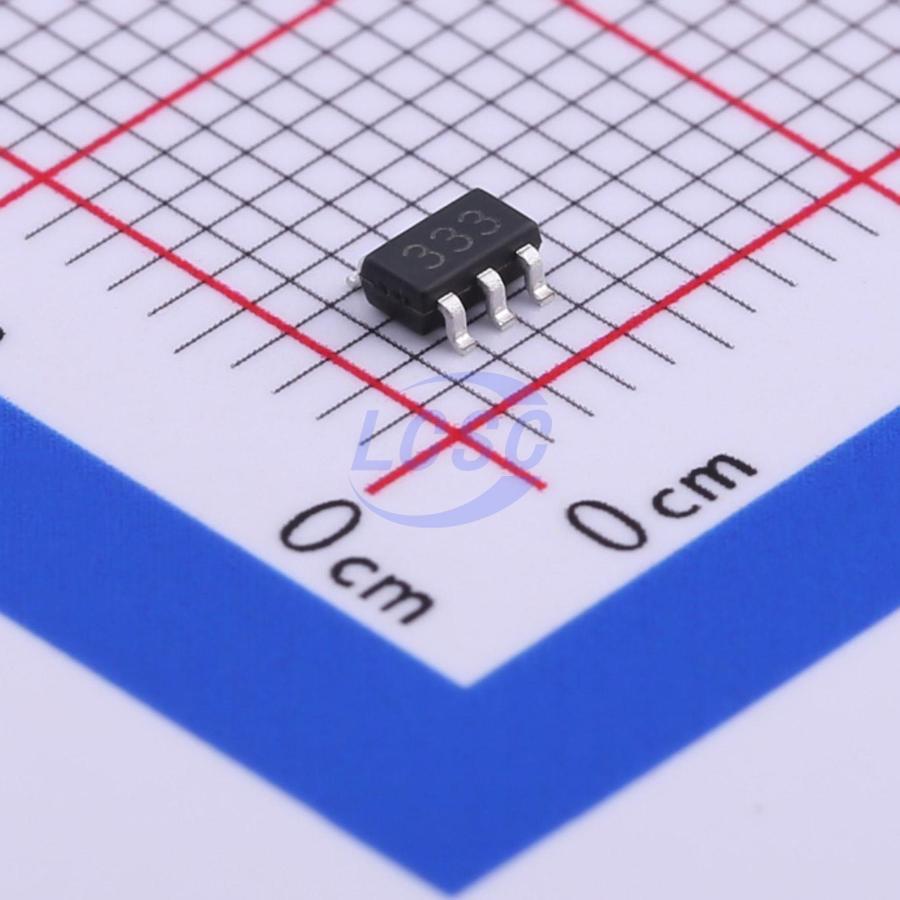

GS8333-TR

30mA 1 30uV 0.2V/us 20pA 110dB 25uA 350kHz Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5 Instrumentation, Op Amps, Buffer Amps

SOT-23-5RoHSActive

350KHZ Zero-Drift CMoS Rail-to-Rail IO Opamp with RF Filter

Manufacturer: Gainsil
Manufacturer part #: GS8333-TR
Store part #: C431326
Package / case: SOT-23-5
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

13,963 in stock

#C431326

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹59.11	₹59.11
10+	₹46.50	₹465.00
30+	₹40.85	₹1,225.50
100+	₹34.12	₹3,412.00
500+	₹31.08	₹15,540.00
1,000+	₹27.60	₹27,600.00

Quantity (min 1)

1 × ₹59.11

₹59.11

excl. GST

₹69.75 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

GS8333-TR

₹59.11 for 1 + GST

Specifications

Output Current: 30mA
Number of Channels: 1
Vos - Input Offset Voltage: 30uV
Slew Rate: 0.2V/us
Input Offset Current(Ios): 10pA
Operating Temperature: -45℃~+125℃
Ib - Input Bias Current: 20pA
Common Mode Rejection Ratio(CMRR): 110dB
Input Offset Voltage Drift(Vos TC): 10nV/℃
Quiescent Current: 25uA
Gain Bandwidth Product: 350kHz
Features: Zero drift / auto-zero;EMI filtering/RF suppression
Input Voltage Noise Density: 70nV/√Hz@1kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Dual Supply: -2.75V~-900mV;900mV~2.75V
Single Supply: 1.8V~5.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.046 g

Overview

The GS8333 amplifier is single/dual supply, micro-power, zero-drift CMOS operational amplifiers, the amplifiers offer bandwidth of 350 kHz, rail-to-rail inputs and outputs, and single-supply operation from 1.8V to 5.5V. GS8333 uses chopper stabilized technique to provide very low offset voltage (less than 30μv maximum) and near zero drift over temperature. Low quiescent supply current of 25μA per amplifier and very low input bias current of 20pA make the devices an ideal choice for low offset, low power consumption and high impedance applications. The GS8333 offers excellent CMRR without the crossover associated with traditional complementary input stages. This design results in superior performance for driving analog-to-digital converters (ADCs) without degradation of differential linearity. The GS8333 is available in SOT23-5 and SC70-5 packages. The extended temperature range of -45°C to +125°C over all supply voltages offers additional design flexibility.
