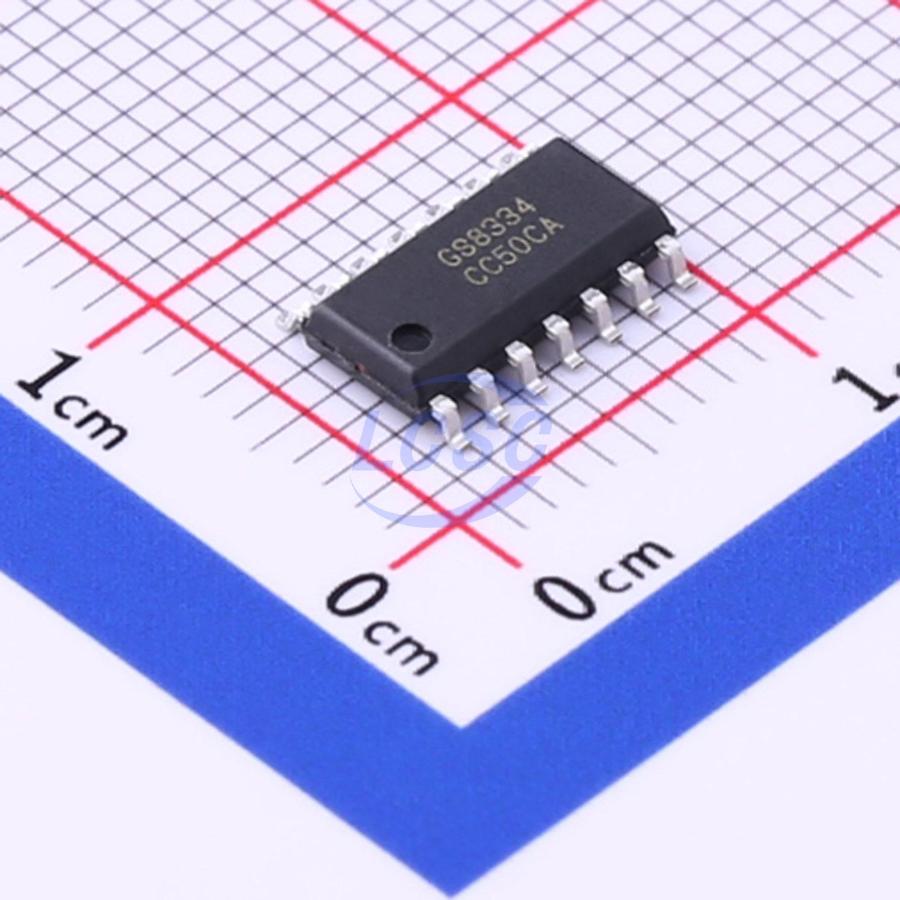

GS8334-SR

The GS833X amplifier is single/dual/quad supply, micro-power, zero-drift CMOS operational amplifiers, the amplifiers offer bandwidth of 350 kHz, rail-to-rail inputs and outputs, and single-supply operation from 1.8V to 5.5V. GS833X uses chopper stabilized technique to provide very low offset voltage (less than 10μV maximum) and near zero drift over temperature. Low quiescent supply current of 25μA per amplifier and very low input bias current of 20pA make the devices an ideal choice for low offset, low power consumption and high impedance applications. The GS833X offers excellent CMRR without the crossover associated with traditional complementary input stages. This design results in superior performance for driving analog-to-digital converters (ADCs) without degradation of differential linearity. The GS8331 is available in SOT23-5, SC-70 packages. And the GS8332 is available in SOP8, MSOP8 packages. The GS8334 Quad is available in Green SOP-14 and TSSOP-14 packages. The extended temperature range of -45°C to +125°C over all supply voltages offers additional design flexibility.

Applications

• Transducer Application
• Temperature Measurements
• Electronics Scales

Key features

• Single-Supply Operation from +1.8V to +5.5V
• Rail-to-Rail Input / Output
• Gain-Bandwidth Product: 350KHz {Typ@25°C}
• Low Input Bias Current: 20pA (Typ @25°C)
• Low Offset Voltage: 10uV (Max@25°C)
• Quiescent Current: 25μA per Amplifier (Typ)
• Operating Temperature: -45°C to +125°C
• Zero Drift: 0.01μV/°C (Typ)
• Embedded RF Anti-EMI Filter
• Small Package:
• GS8331 Available in SOT23-5, SC-70 Packages
• GS8332 Available in SOP-8, MSOP-8 Packages
• GS8334 Available in SOP-14 and TSSOP-14 Packages
