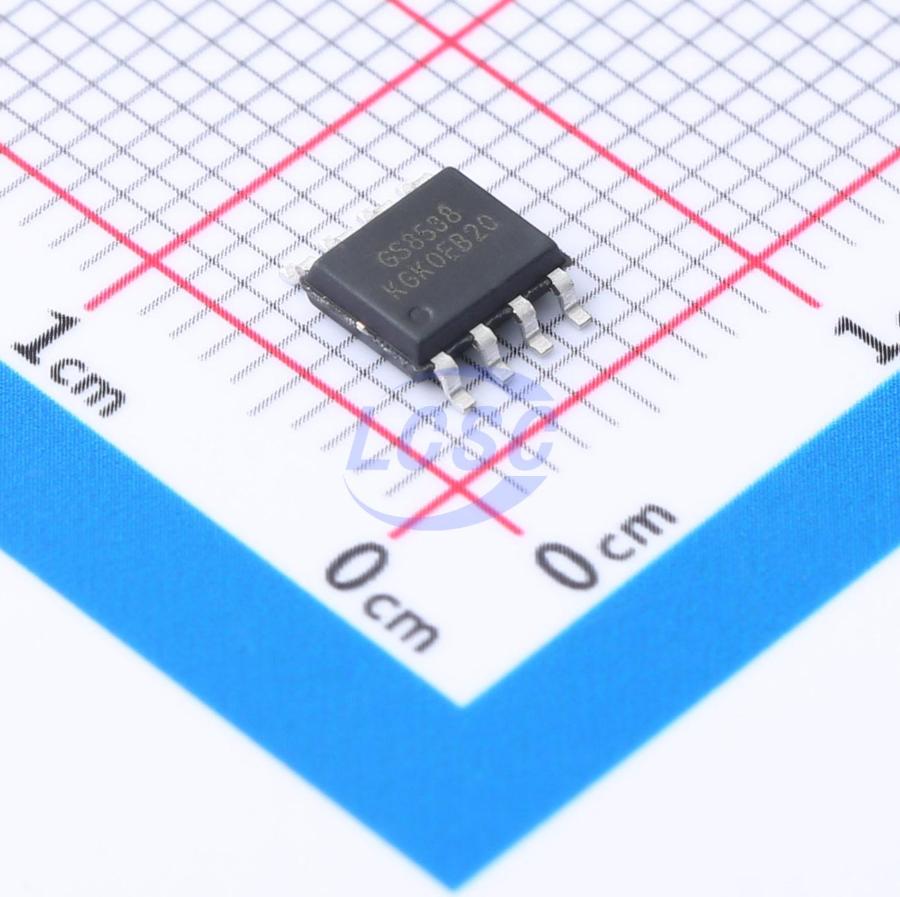

GS8538-SR

The GS853X amplifier is single/dual/quad supply, micro-power, zero-drift CMOS operational amplifiers, the amplifiers offer bandwidth of 1.6MHz, rail-to-rail inputs and outputs, and single-supply operation from 2.0V to 5.5V. GS853X uses auto-zero technique to provide very low offset voltage (less than 5μv maximum) and near zero drift over temperature. Low quiescent supply current of 180uA per amplifier and very low input bias current make the devices an ideal choice for low offset, low power consumption and high impedance applications. The GS853X offers excellent CMRR without the crossover associated with traditional complementary input stages. This design results in superior performance for driving analog-to-digital converters (ADCs) without degradation of differential linearity. The GS8537 Single is available in SOT23-5 and SOP-8 packages. And the GS8538 Dual is available in MSOP-8 and SOP-8 packages. The GS8539 Quad is available in Green SOP-14 and TSSOP-14 packages. The extended temperature range of -40°C to +125°C over all supply voltages offers additional design flexibility.

Applications

• Transducer Application
• Weight Scale Sensor
• Electronics Scales
• Handheld Test Equipment
• Set-Top Boxes
• Portable/Battery-Powered Applications
• Temperature Sensors
• Laptop/Notebook Computers/TFT Panels

Key features

• Single-Supply Operation from +2.0V~+5.5V
• Rail-to-Rail Input / Output
• Gain-Bandwidth Product: 1.6MHz (Typ@25°C)
• Low Offset Voltage: 5µV (Max@25°C)
• Quiescent Current: 180uA per Amplifier (Typ)
• Operating Temperature: -40°C~+125°C
• Zero Drift: 0.027μV/°C (Typ)
• Embedded RF Anti-EMI Filter
• Small Package:
• GS8537 Available in SOT23-5 and SOP-8 Packages
• GS8538 Available in SOP-8 and MSOP-8 Packages
• GS8539 Available in SOP-14 and TSSOP-14 Packages
