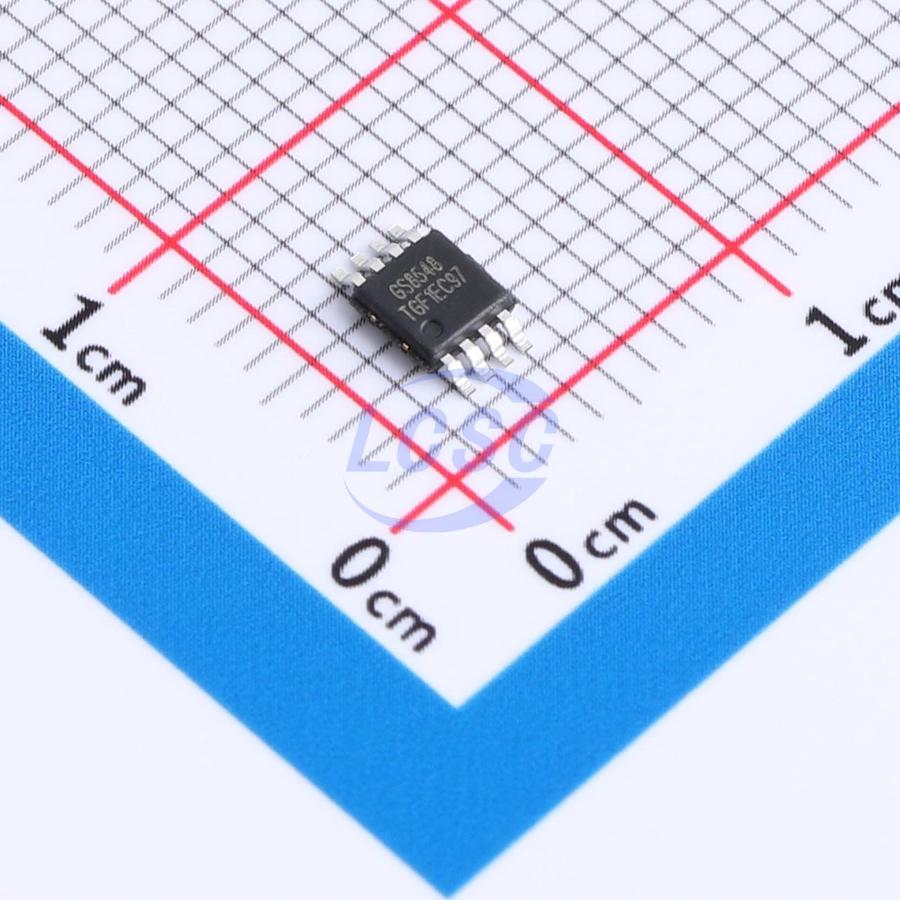

GS8548-MR

82mA 2 1uV 3.3V/us 100pA 120dB 642uA 5.5MHz Rail-to-Rail Input, Rail-to-Rail Output MSOP-8 Instrumentation, Op Amps, Buffer Amps

MSOP-8RoHSActive

Manufacturer: Gainsil
Manufacturer part #: GS8548-MR
Store part #: C49326079
Package / case: MSOP-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,848 in stock

#C49326079

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹108.26	₹108.26
10+	₹87.52	₹875.20
30+	₹77.37	₹2,321.10
100+	₹67.00	₹6,700.00
500+	₹60.94	₹30,470.00
1,000+	₹57.70	₹57,700.00

Quantity (min 1)

1 × ₹108.26

₹108.26

excl. GST

₹127.75 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

GS8548-MR

₹108.26 for 1 + GST

Specifications

Output Current: 82mA
Number of Channels: 2
Vos - Input Offset Voltage: 1uV
Slew Rate: 3.3V/us
Input Offset Current(Ios): 10pA
Operating Temperature: -40℃~+125℃
Ib - Input Bias Current: 100pA
Common Mode Rejection Ratio(CMRR): 120dB
Input Offset Voltage Drift(Vos TC): 27nV/℃
Quiescent Current: 642uA
Gain Bandwidth Product: 5.5MHz
Features: Zero drift / auto-zero;EMI filtering/RF suppression
Input Voltage Noise Density: 39nV/√Hz@1kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 2.2V~5.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.161 g

Overview

The GS854X amplifiers are single/dual/quad-channel, micropower, zero-drift CMOS op-amps offering 5.5MHz bandwidth, rail-to-rail input and output, and 2.2V to 5.5V single-supply operation. The GS854X employs auto-zeroing technology to deliver ultralow offset voltage (maximum less than 5μV) and near-zero temperature drift. The low quiescent supply current of 642μA per amplifier and ultralow input bias current make these devices ideal for low-offset, low-power, and high-impedance applications. The GS854X provides excellent CMRR without the crossover distortion associated with conventional complementary input stages. This design delivers superior performance when driving ADCs without degrading differential linearity. The single-channel GS8547 is available in SOT23-5 and SOP-8 packages. The dual-channel GS8548 is available in MSOP-8 and SOP-8 packages. The quad-channel GS8549 is available in RoHS-compliant SOP-14 and TSSOP-14 packages. An extended temperature range of -40℃ to +125℃ across all supply voltages provides additional design flexibility.

Applications

Electronic scales
Handheld test equipment
Set-top boxes
Portable/battery-powered applications
Notebook/flat panel displays

Key features

Single-supply operating range: +2.2V ~ +5.5V
Rail-to-rail input/output
Gain bandwidth product: 5.5MHz (typical @ 25℃)
Low offset voltage: 5μV (maximum @ 25℃)
Quiescent current: 642μA per amplifier (typical)
Operating temperature range: -40℃ ~ +125℃
Zero drift: 0.027μV/℃ (typical)
Integrated RF EMI filter
Compact packages: GS8547 available in SOT23-5 and SOP-8; GS8548 available in SOP-8 and MSOP-8; GS8549 available in SOP-14 and TSSOP-14
