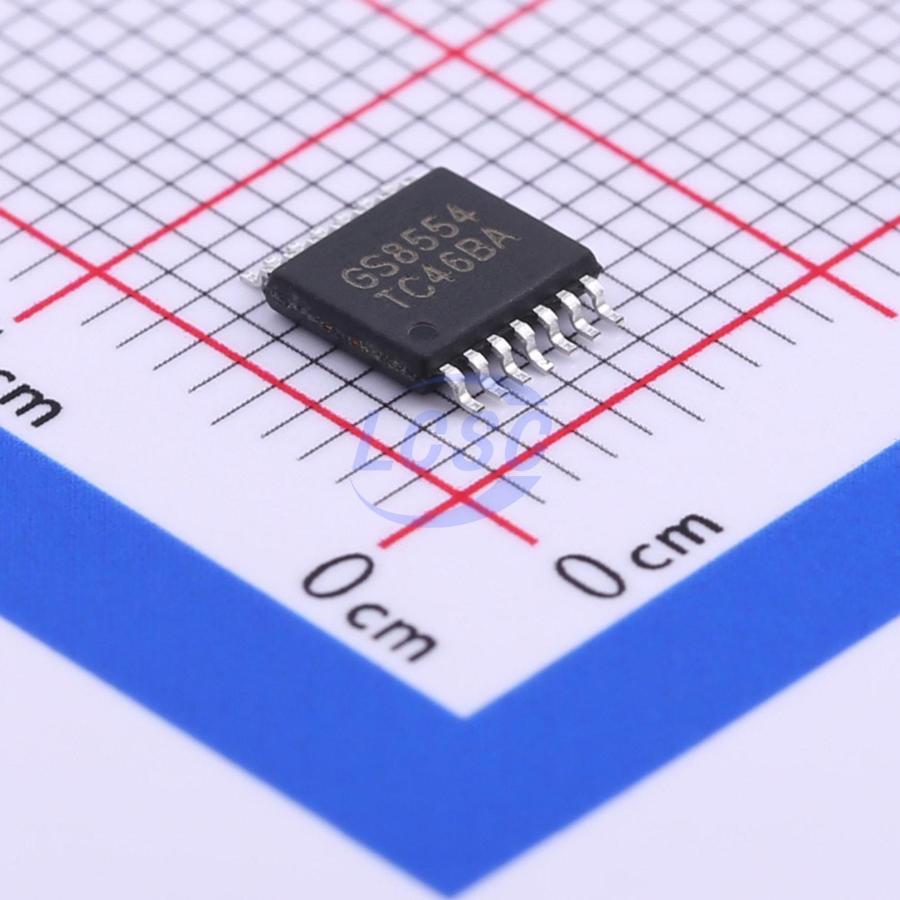

GS8554-TR

65mA Four channels 30uV 0.95V/us 20pA 110dB 180uA 1.8MHz Rail-to-Rail Input, Rail-to-Rail Output TSSOP-14 Instrumentation, Op Amps, Buffer Amps

TSSOP-14RoHSActive

Zero-Drift CMOS Rail-to-Rail IO Opamp with RF Filter

Manufacturer: Gainsil
Manufacturer part #: GS8554-TR
Store part #: C431323
Package / case: TSSOP-14
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,042 in stock

#C431323

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹158.63	₹158.63
10+	₹130.61	₹1,306.10
30+	₹115.18	₹3,455.40
100+	₹97.80	₹9,780.00
500+	₹85.40	₹42,700.00
1,000+	₹81.93	₹81,930.00

Quantity (min 1)

1 × ₹158.63

₹158.63

excl. GST

₹187.18 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

GS8554-TR

₹158.63 for 1 + GST

Specifications

Output Current: 65mA
Number of Channels: Four channels
Vos - Input Offset Voltage: 30uV
Slew Rate: 0.95V/us
Input Offset Current(Ios): 10pA
Operating Temperature: -45℃~+125℃
Ib - Input Bias Current: 20pA
Common Mode Rejection Ratio(CMRR): 110dB
Input Offset Voltage Drift(Vos TC): 10nV/℃
Quiescent Current: 180uA
Gain Bandwidth Product: 1.8MHz
Features: EMI filtering/RF suppression;Zero drift / auto-zero
Input Voltage Noise Density: 38nV/√Hz@1kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Dual Supply: -2.75V~-900mV;900mV~2.75V
Single Supply: 1.8V~5.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.169 g

Overview

The GS855X amplifier is single/dual/quad supply, micro-power, zero-drift CMOS operational amplifiers, the amplifiers offer bandwidth of 1.8MHz, rail-to-rail inputs and outputs, and single-supply operation from 1.8V to 5.5V. GS855X uses chopper stabilized technique to provide very low offset voltage (less than 30μv maximum) and near zero drift over temperature. Low quiescent supply current of 180μμ per amplifier and very low input bias current of 20pA make the devices an ideal choice for low offset, low power consumption and high impedance applications. The GS855X offers excellent CMRR without the crossover associated with traditional complementary input stages. This design results in superior performance for driving analog-to-digital converters (ADCs) without degradation of differential linearity. The GS8551 is available in SOT23-5 and SOP-8 packages. And the GS8552 is available in MSOP-8 and SOP-8 packages. The GS8554 Quad is available in Green SOP-14 and TSSOP-14 packages. The extended temperature range of -45°C to +125°C over all supply voltages offers additional design flexibility.
