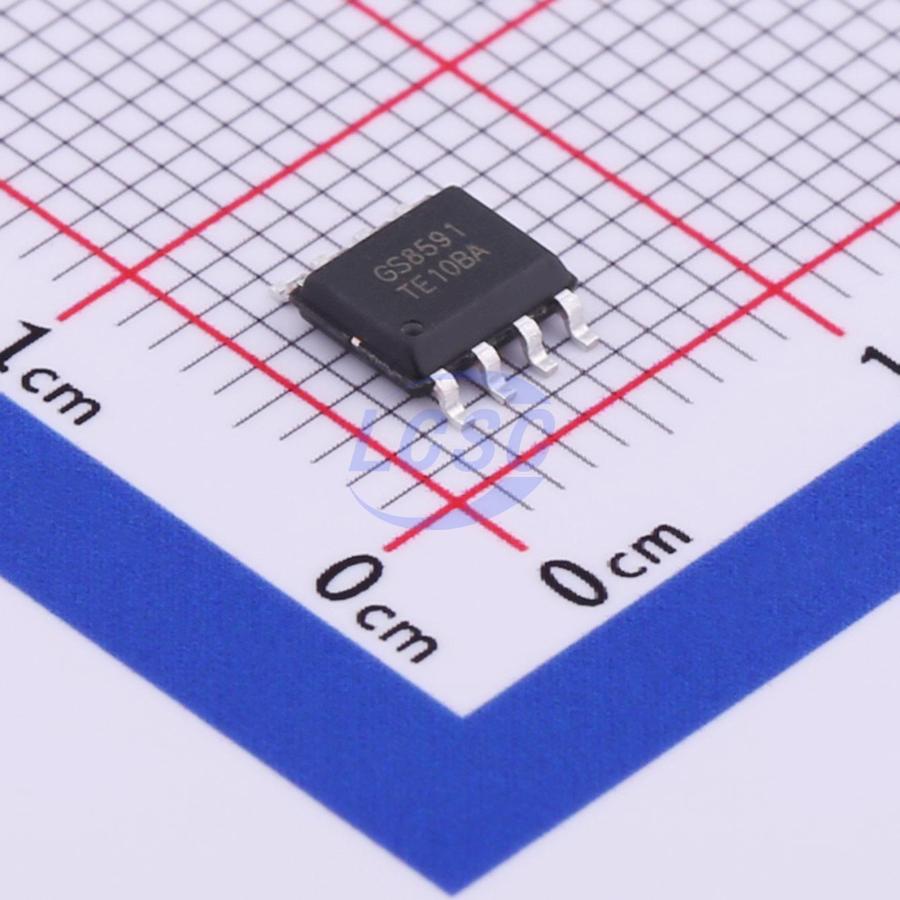

GS8591-SR

30mA 1 30uV 2.5V/us 110dB 20pA 4.5MHz 550uA Rail-to-Rail Input, Rail-to-Rail Output SOP-8 Instrumentation, Op Amps, Buffer Amps

SOP-8RoHSActive

Zero-Drift CMOS Rail-to-Rail I/O Opamp with RF Filter

Manufacturer: Gainsil
Manufacturer part #: GS8591-SR
Store part #: C504795
Package / case: SOP-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,390 in stock

#C504795

Stock & price checked 21 h ago

Quantity	Unit price	Pack price
5+	₹34.50	₹172.50
50+	₹30.07	₹1,503.50
150+	₹28.18	₹4,227.00
500+	₹25.81	₹12,905.00
2,500+	₹24.13	₹60,325.00
4,000+	₹23.50	₹94,000.00

Quantity (min 5, multiples of 5)

5 × ₹34.50

₹172.50

excl. GST

₹203.55 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

GS8591-SR

₹172.50 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Current: 30mA
Number of Channels: 1
Vos - Input Offset Voltage: 30uV
Slew Rate: 2.5V/us
Input Offset Current(Ios): 10pA
Operating Temperature: -45℃~+125℃
Common Mode Rejection Ratio(CMRR): 110dB
Ib - Input Bias Current: 20pA
Input Offset Voltage Drift(Vos TC): 50nV/℃
Gain Bandwidth Product: 4.5MHz
Quiescent Current: 550uA
Features: Zero drift / auto-zero;EMI filtering/RF suppression
Input Voltage Noise Density: 30nV/√Hz@1kHz
Dual Supply: -2.75V~-900mV;900mV~2.75V
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 1.8V~5.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.163 g

Overview

The GS859X amplifier is single/dual/quad supply, micro-power, zero-drift CMOS operational amplifiers, the amplifiers offer bandwidth of 4.5MHz, rail-to-rail inputs and outputs, and single-supply operation from 1.8V to 5.5V. GS859X uses chopper stabilized technique to provide very low offset voltage (less than 30μv maximum) and near zero drift over temperature. Low quiescent supply current of 550μA per amplifier and very low input bias current of 20pA make the devices an ideal choice for low offset, low power consumption and high impedance applications. The GS859X offers excellent CMRR without the crossover associated with traditional complementary input stages. This design results in superior performance for driving analog-to-digital converters (ADCs) without degradation of differential linearity. The GS8591 is available in SOT23-5 and SOP-8 packages. And the GS8592 is available in MSOP-8 and SOP-8 packages. The GS8594 Quad is available in Green SOP-14 and TSSOP-14 packages. The extended temperature range of -45°C to +125°C over all supply voltages offers additional design flexibility.
