GainsilDatasheet (PDF)

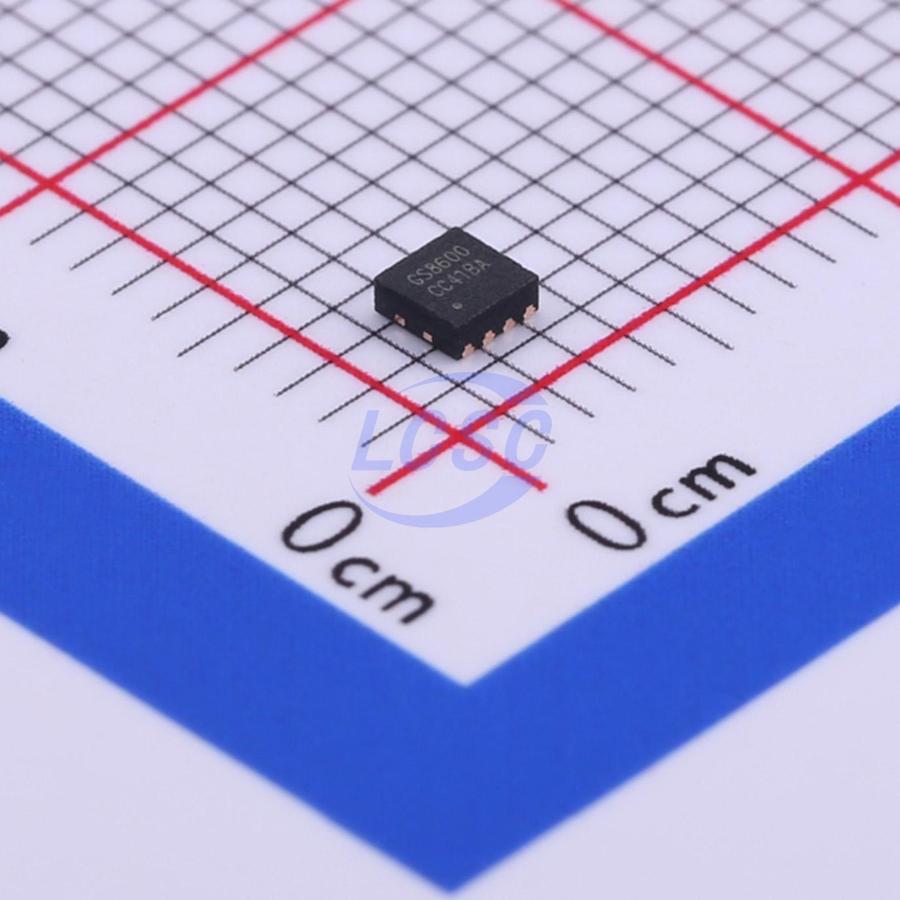

GS8600-FR
55mA 2 3.5mV 9V/us 82dB 1pA 1.1mA 11MHz Rail-to-Rail Input, Rail-to-Rail Output DFN-8-EP(2x2) Instrumentation, Op Amps, Buffer Amps
DFN-8-EP(2x2)RoHSActive
11MHz CMOS Rail-to-Rail IO Opamps
- Manufacturer
- Gainsil
- Manufacturer part #
- GS8600-FR
- Store part #
- C431320
- Package / case
- DFN-8-EP(2x2)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,420 in stock
#C431320
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹27.03 | ₹135.15 |
| 50+ | ₹23.56 | ₹1,178.00 |
| 150+ | ₹22.07 | ₹3,310.50 |
| 500+ | ₹20.22 | ₹10,110.00 |
| 3,000+ | ₹17.85 | ₹53,550.00 |
| 6,000+ | ₹17.34 | ₹1,04,040.00 |
5 × ₹27.03
₹135.15
excl. GST
₹159.48 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
GS8600-FR
₹135.15 for 5 + GST
Specifications
- Output Current
- 55mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 3.5mV
- Slew Rate
- 9V/us
- Input Offset Current(Ios)
- 1pA
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 82dB
- Ib - Input Bias Current
- 1pA
- Input Offset Voltage Drift(Vos TC)
- 2.4uV/℃
- Quiescent Current
- 1.1mA
- Gain Bandwidth Product
- 11MHz
- Features
- Built-in compensation
- Input Voltage Noise Density
- 8nV/√Hz@10kHz
- Dual Supply
- -1.05V~2.75V
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.1V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.036 g
Overview
The GS8600 have a high gain-bandwidth product of 11MHz, a slew rate of 9V/µs, and a quiescent current of 1.1mA per amplifier at 5V. The GS8600 is designed to provide optimal performance in low voltage and low noise systems. They provide rail-to-rail output swing into heavy loads. The input common mode voltage range includes ground, and the maximum input offset voltage is 3.5mV for GS8600. They are specified over the extended industrial temperature range (-40℃ to +125℃). The operating range is from 2.1V to 5.5V. The GS8600 dual is available in Green DFN2*2-8 package.
Applications
- Sensors
- Active Filters
- Cellular and Cordless Phones
- Laptops and PDAs
- Audio
- Handheld Test Equipment
- Battery-Powered Instrumentation A/D Converters
Key features
- Single-Supply Operation from +2.1V ~ +5.5V
- Rail-to-Rail Input / Output
- Gain-Bandwidth Product: 11MHz (Typ)
- Low Input Bias Current: 1pA (Typ)
- Low Offset Voltage: 3.5mV (Max)
- High Slew Rate: 9V/µs
- Settling Time to 0.1% with 2V Step: 0.3µs
- Low Noise: 8nV/√Hz @ 10kHz
- Quiescent Current: 1.1mA per Amplifier (Typ)
- Operating Temperature: -40°C ~ +125°C
- Small Package
