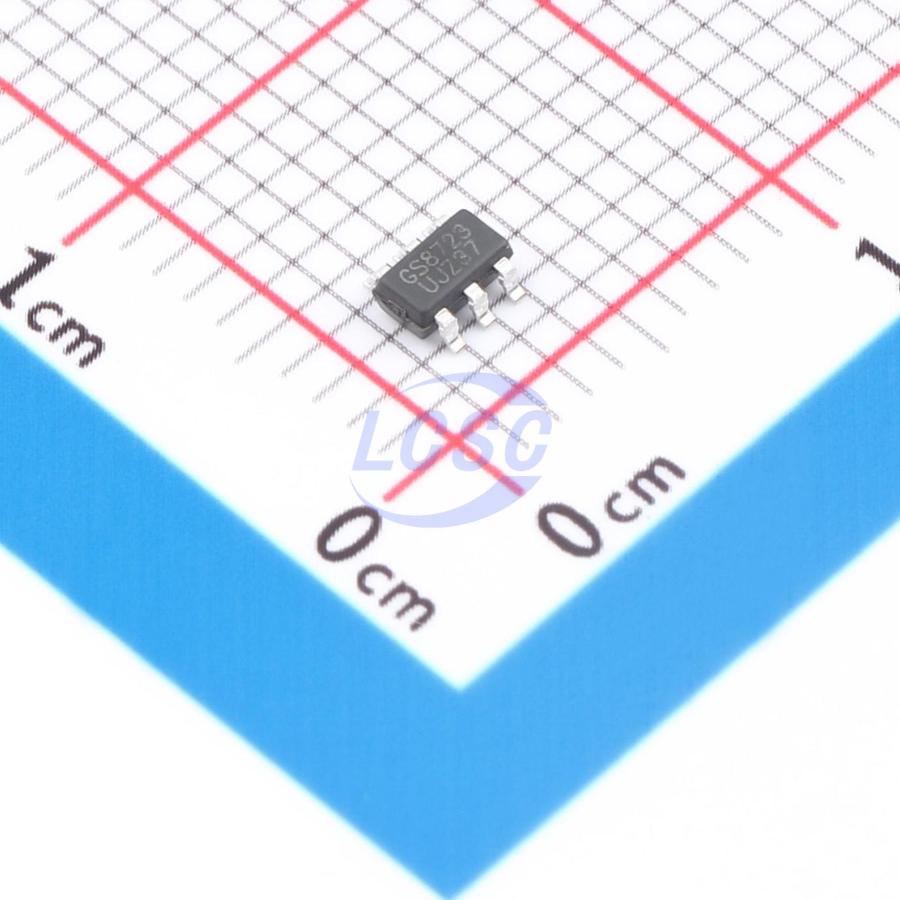

GS8723-TR

70mA 1 800uV 9V/us 1pA 82dB 11MHz 1.1mA Rail-to-Rail Input, Rail-to-Rail Output SOT-23-6 Instrumentation, Op Amps, Buffer Amps

SOT-23-6RoHSActive

Manufacturer: Gainsil
Manufacturer part #: GS8723-TR
Store part #: C52211931
Package / case: SOT-23-6
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,945 in stock

#C52211931

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹43.05	₹215.25
50+	₹34.00	₹1,700.00
150+	₹30.14	₹4,521.00
500+	₹25.30	₹12,650.00
3,000+	₹23.15	₹69,450.00
6,000+	₹21.86	₹1,31,160.00

Quantity (min 5, multiples of 5)

5 × ₹43.05

₹215.25

excl. GST

₹253.99 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

GS8723-TR

₹215.25 for 5 + GST

Specifications

Output Current: 70mA
Number of Channels: 1
Vos - Input Offset Voltage: 800uV
Slew Rate: 9V/us
Input Offset Current(Ios): 1pA
Operating Temperature: -40℃~+125℃
Ib - Input Bias Current: 1pA
Common Mode Rejection Ratio(CMRR): 82dB
Input Offset Voltage Drift(Vos TC): 2.4uV/℃
Gain Bandwidth Product: 11MHz
Quiescent Current: 1.1mA
Input Voltage Noise Density: 11.5nV/√Hz@1kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 2.1V~5.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 1 g

Overview

The GS872X series features a 11MHz gain-bandwidth product, 9V/μs slew rate, and 1.1mA quiescent current per amplifier from a 5V supply. The GS8723 supply current in shutdown mode is less than 0.5μA. The series is designed to deliver performance in low-voltage and low-noise systems, capable of driving heavy loads with rail-to-rail output swing. The input common-mode voltage range includes ground, and the maximum input offset voltage of the GS872X is 3.5mV. The series operates over an extended industrial temperature range (-40℃ ~ +125℃) with a supply voltage range of 2.1V ~ 5.5V. The GS8721 single-channel amplifier is available in green SC70-5, SOT23-5, and SOP-8 packages. The GS8722 dual-channel amplifier is available in green SOP-8, MSOP-8, TSSOP-8, and DFN2×2-8 packages. The GS8723 single-channel amplifier is available in a green SOT23-6 package. The GS8724 quad-channel amplifier is available in green SOP-14 and TSSOP-14 packages.
