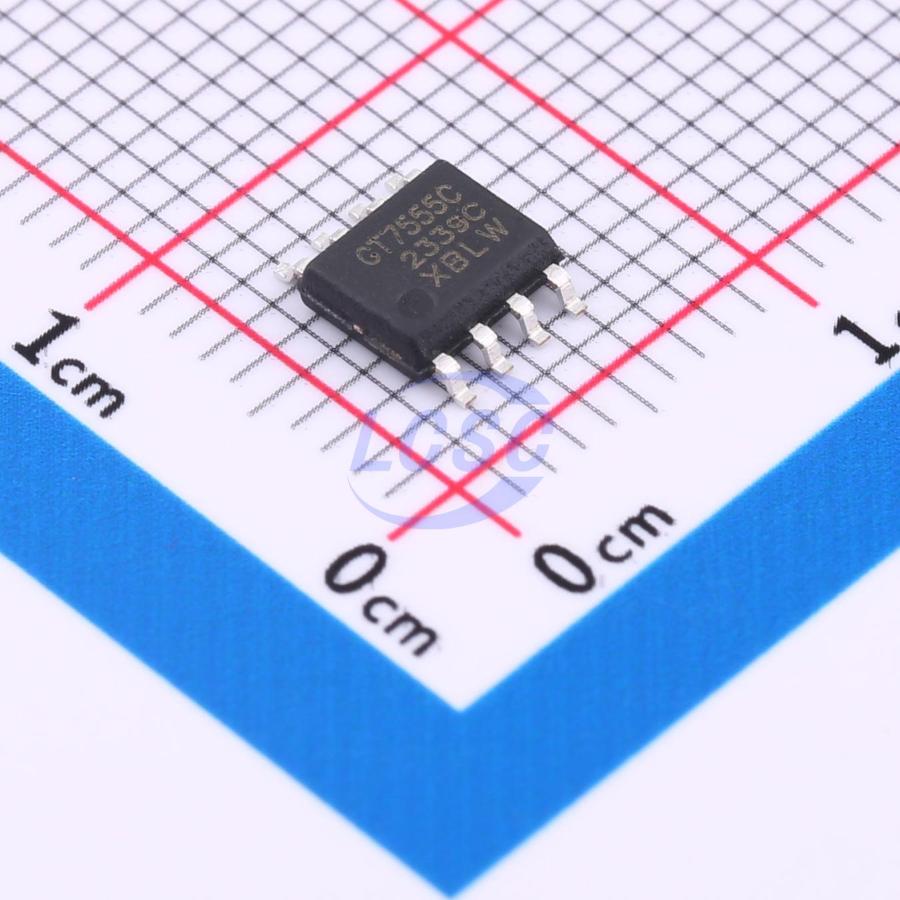

GT7555CDTR
SOP-8 Programmable Timers and Oscillators RoHS
General Purpose CMOS Timer
- Manufacturer
- XBLW
- Manufacturer part #
- GT7555CDTR
- Store part #
- C19708137
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,180 in stock
#C19708137
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.87 | ₹64.35 |
| 50+ | ₹10.19 | ₹509.50 |
| 150+ | ₹8.84 | ₹1,326.00 |
| 500+ | ₹7.82 | ₹3,910.00 |
| 2,500+ | ₹7.01 | ₹17,525.00 |
| 5,000+ | ₹6.60 | ₹33,000.00 |
5 × ₹12.87
₹64.35
excl. GST
₹75.93 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
GT7555CDTR
₹64.35 for 5 + GST
Specifications
- Supply Current
- 80uA
- Features
- Adjustable duty cycle oscillation
- Operating Temperature
- -20℃~+85℃
- Output Current
- 200mA
- Timer Number
- 1
- Voltage - Supply
- 4.5V~15V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.198 g
Overview
GT7555 is a general-purpose timer fabricated using CMOS technology. It provides precise time delays and frequency generation with ultra-low power consumption and supply current spikes. When used as a triggered delay timer, the time delay is accurately controlled by a single external resistor and capacitor. In astable mode, the oscillation frequency and duty cycle are precisely set by two external resistors and one capacitor. The device is available in DIP-8 and SOP-8 packages.
Applications
- Active filters
- Pulse generation
- Sequential timing
- Time delay generation
- Pulse width modulation
Key features
- Low supply current: 80μA (typical)
- Stable frequency up to 500KHz
- Minimum operating voltage 4.5V
- Fully compatible with CMOS, TTL, and MOS logic levels at 5V
- Low supply current spikes during output transitions
- Ultra-low trigger, threshold, and reset currents: 20pA (typical)
- Operates in astable and monostable modes with adjustable duty cycle
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TLC555DTR(XBLW)#C18723594XBLW · SOP-8 | XBLW | SOP-8 | 7,610 | ₹12.29 · 7,610 in stock | View |
 | NE555DTR(XBLW)#C18723595XBLW · SOP-8 | XBLW | SOP-8 | 1,25,900 | ₹5.05 · 1,25,900 in stock | View |
