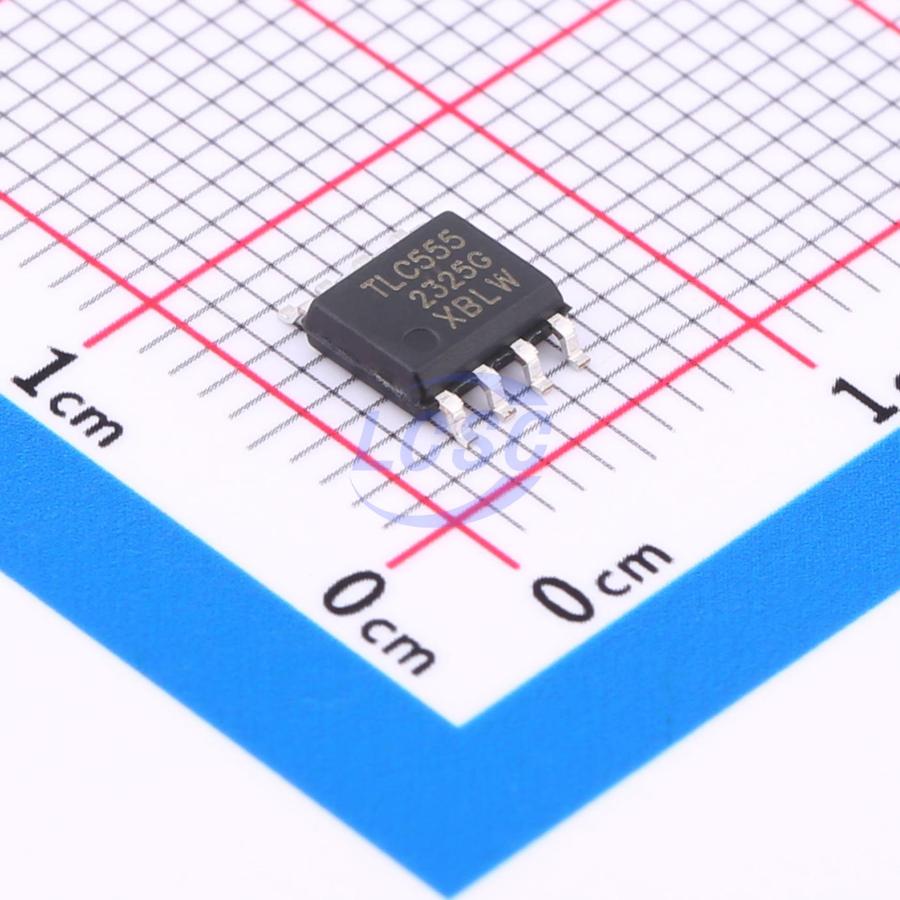

TLC555DTR(XBLW)
SOP-8 Programmable Timers and Oscillators RoHS
General Purpose CMOS Timer
- Manufacturer
- XBLW
- Manufacturer part #
- TLC555DTR(XBLW)
- Store part #
- C18723594
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7,610 in stock
#C18723594
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.29 | ₹61.45 |
| 50+ | ₹9.58 | ₹479.00 |
| 150+ | ₹8.23 | ₹1,234.50 |
| 500+ | ₹7.21 | ₹3,605.00 |
| 2,500+ | ₹6.40 | ₹16,000.00 |
| 5,000+ | ₹5.99 | ₹29,950.00 |
5 × ₹12.29
₹61.45
excl. GST
₹72.51 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TLC555DTR(XBLW)
₹61.45 for 5 + GST
Specifications
- Supply Current
- 80uA
- Features
- Adjustable duty cycle oscillation;Reset function
- Operating Temperature
- -20℃~+85℃
- Output Current
- 100mA
- Timer Number
- 1
- Voltage - Supply
- 4.5V~15V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.207 g
Overview
The TLC555 is a general-purpose CMOS timer capable of providing precise time delays and frequency generation with ultra-low power consumption and supply current spikes. When used as a triggered delay, the time delay is precisely controlled by a single external resistor and capacitor. In astable mode, the oscillation frequency and duty cycle are precisely set by two external resistors and one capacitor. The device is available in DIP-8 and SOP-8 packages.
Applications
- Active filters
- Pulse generation
- Sequential timing
- Time delay generation
- Pulse width modulation
Key features
- Low supply current: 80μA (typical)
- Stable frequency: 500kHz
- Minimum operating voltage: 4.5V
- Output fully compatible with CMOS, TTL, and MOS at 5V
- Low supply current spikes during output transitions
- Ultra-low trigger, threshold, and reset currents: 20pA (typical)
- Operates in astable and monostable modes with adjustable duty cycle
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | GT7555CDTR#C19708137XBLW · SOP-8 | XBLW | SOP-8 | 1,180 | ₹12.87 · 1,180 in stock | View |
 | NE555DTR(XBLW)#C18723595XBLW · SOP-8 | XBLW | SOP-8 | 1,25,900 | ₹5.05 · 1,25,900 in stock | View |
