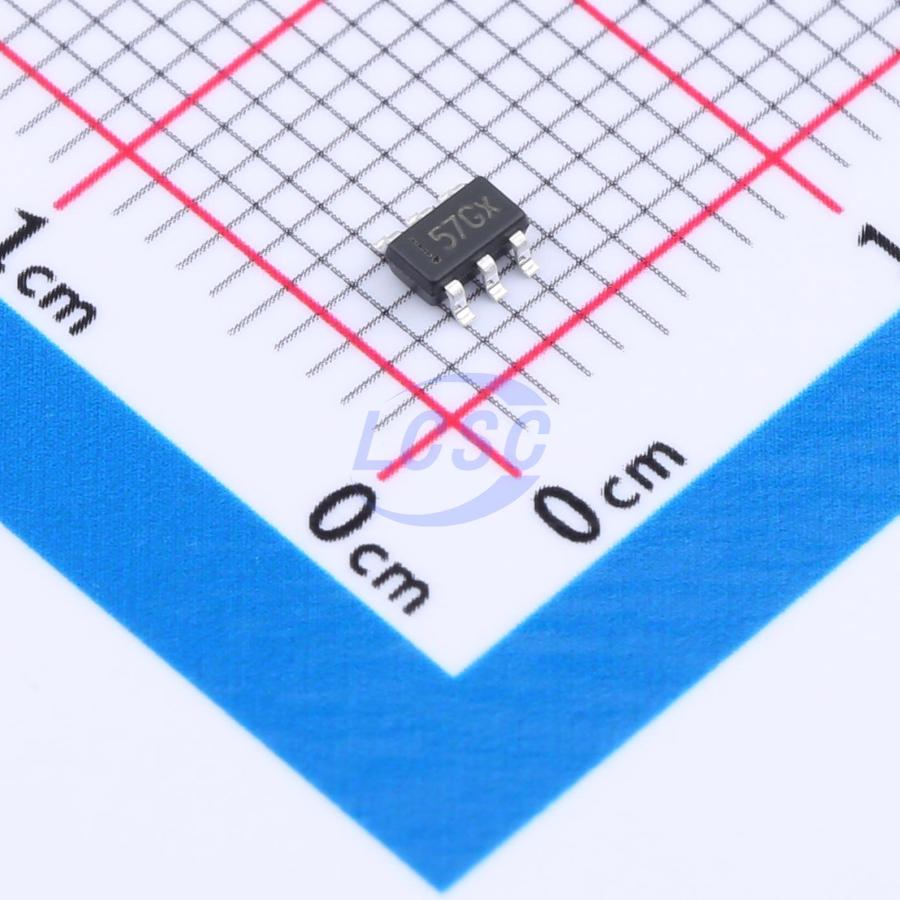

GX4057
Battery Charging IC Lithium-ion/Polymer SOT-23-6L
Lithium battery charger chip
- Manufacturer
- GUOXIN JIAPIN SEMICONDUCTOR
- Manufacturer part #
- GX4057
- Store part #
- C5259237
- Package / case
- SOT-23-6L
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
11,680 in stock
#C5259237
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹3.33 | ₹66.60 |
| 200+ | ₹2.69 | ₹538.00 |
| 600+ | ₹2.33 | ₹1,398.00 |
| 3,000+ | ₹1.85 | ₹5,550.00 |
| 9,000+ | ₹1.67 | ₹15,030.00 |
| 21,000+ | ₹1.57 | ₹32,970.00 |
20 × ₹3.33
₹66.60
excl. GST
₹78.59 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
GX4057
₹66.60 for 20 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Quiescent Current
- 500nA
- Type of Battery
- Lithium Battery
- Operating Voltage
- 4.5V~6.5V
- Features
- Constant current charging;Constant voltage charging;Trickle charging;Automatic recharge;Charge termination;Programmable charging current;Soft-start;Under-voltage lockout
- The Chip Type
- Charging IC
- Charge Current - Max
- 550mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.045 g
Overview
GX4057 is a single-cell lithium-ion battery constant-current/constant-voltage linear charger. Its simple external application circuit makes it ideal for portable device applications, compatible with both USB power and adapter power sources. An internal reverse-charge protection circuit eliminates the need for an external isolation diode. Thermal feedback automatically adjusts the charging current to limit the die temperature during high-power operation or high ambient temperature conditions. The GX4057 has a charge termination voltage of 4.2V, and the charging current can be set via an external resistor. When the charging current drops to 1/10 of the programmed value, the GX4057 automatically terminates the charging process. When the input voltage is removed, the GX4057 automatically enters a low-current standby state, with standby current reduced to 0.5µA.
Applications
- Charging dock
- Bluetooth headset
- GPS phone
- PDA
- MP3/MP4
- Digital camera
- Mini speakers and other portable devices
Key features
- Maximum charge current: 500mA
- Ultra-low quiescent current: 0.5uA
- No MOSFET, sense resistor, or isolation diode required
- Intelligent thermal regulation for maximum charge rate optimization
- Intelligent recharge function
- Precharge voltage: 4.2V
- C/10 charge termination
- 2.9V trickle charge threshold
- Package: SOT23-6L
