Broadcom

HCPL-7510-500E

9.77 15kV/us 600uV 63dB 600nA DIP-8 Instrumentation, Op Amps, Buffer Amps RoHS

DIP-8ROHS CompliantActive

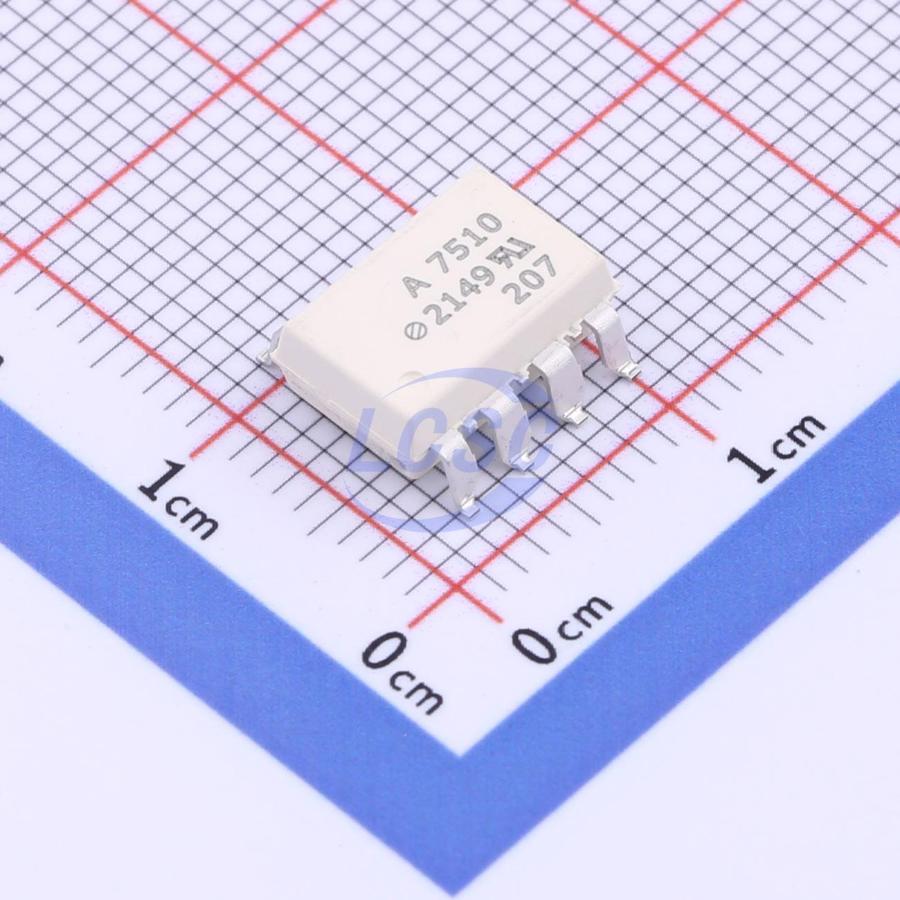

HCPL-7510 Isolated Linear Current Sensing IC for Low-Power Motor Drives

Manufacturer: Broadcom
Manufacturer part #: HCPL-7510-500E
Store part #: C692054
Package / case: DIP-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,000 in stock

#C692054

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹689.30	₹689.30
10+	₹596.01	₹5,960.10
30+	₹524.70	₹15,741.00
100+	₹468.59	₹46,859.00
500+	₹442.72	₹2,21,360.00
1,000+	₹431.19	₹4,31,190.00

Quantity (min 1)

1 × ₹689.30

₹689.30

excl. GST

₹813.37 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 1,000 per reel

HCPL-7510-500E

₹689.30 for 1 + GST

Specifications

Voltage - Supply(Output): 4.5V~5.5V
output type: Single-Ended
Gain: 9.77
CMTI(kV/us): 15kV/us
Features: Isolated ΔΣ (Sigma-Delta) modulator
Vos - Input Offset Voltage: 600uV
Operating Temperature: -40℃~+85℃
Common Mode Rejection Ratio(CMRR): 63dB
Ib - Input Bias Current: 600nA
Isolation Voltage(Vrms): 3750
Voltage - Supply(Input): 4.5V~5.5V
-3dB Bandwidth: 100kHz

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 1,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.68 g

Overview

The HCPL-7510 isolated linear current sensing IC family is designed for current sensing in low-power electronic motor drives. In a typical implementation, motor current flows through an external resistor and the resulting analog voltage drop is sensed by the HCPL-7510. An output voltage is created on the other side of the HCPL7510 optical isolation barrier. This single-ended output voltage is proportional to the motor current. Since common-mode voltage swings of several hundred volts in tens of nanoseconds are common in modern switching inverter motor drives, the HCPL-7510 was designed to ignore very high common-mode transient slew rates (of at least 10 kV/μs). The high CMR capability of the HCPL-7510 isolation amplifier provides the precision and stability needed to accurately monitor motor current in high noise motor control environments, providing for smoother control (less “torque ripple”) in various types of motor control applications. The product can also be used for general analog signal isolation applications. For general applications, we recommend the HCPL-7510 (gain tolerance of ±3%). The HCPL-7510 utilizes sigma-delta (Σ·Δ) analog-to-digital converter technology to delivery offset and gain accuracy and stability over time and temperature. This performance is delivered in a compact, auto-insert, 8-pin DIP package that meets worldwide regulatory safety standards. (A gull-wing surface mount option 300 is also available).

Applications

Low-power inverter current sensing
Motor phase and rail current sensing
Switched mode power supply signal isolation
General purpose low-power current sensing and monitoring
General purpose analog signal isolation

Key features

15 kV/μs common-mode rejection at Vcm = 1000 V
Compact, auto-insertable 8-pin DIP package
60 ppm/°C gain drift vs. temperature
-0.6 mV input offset voltage
8 μV/°C input offset voltage vs. temperature
100 kHz bandwidth
0.06% nonlinearity, single-ended amplifier output for low power application.
Worldwide safety approval: UL 1577 (3750 Vrms/1 min.), CSA and IEC/EN/DIN EN 60747-5-2 (Option 060 only)
Advanced sigma-delta (S-D) A/D converter technology
